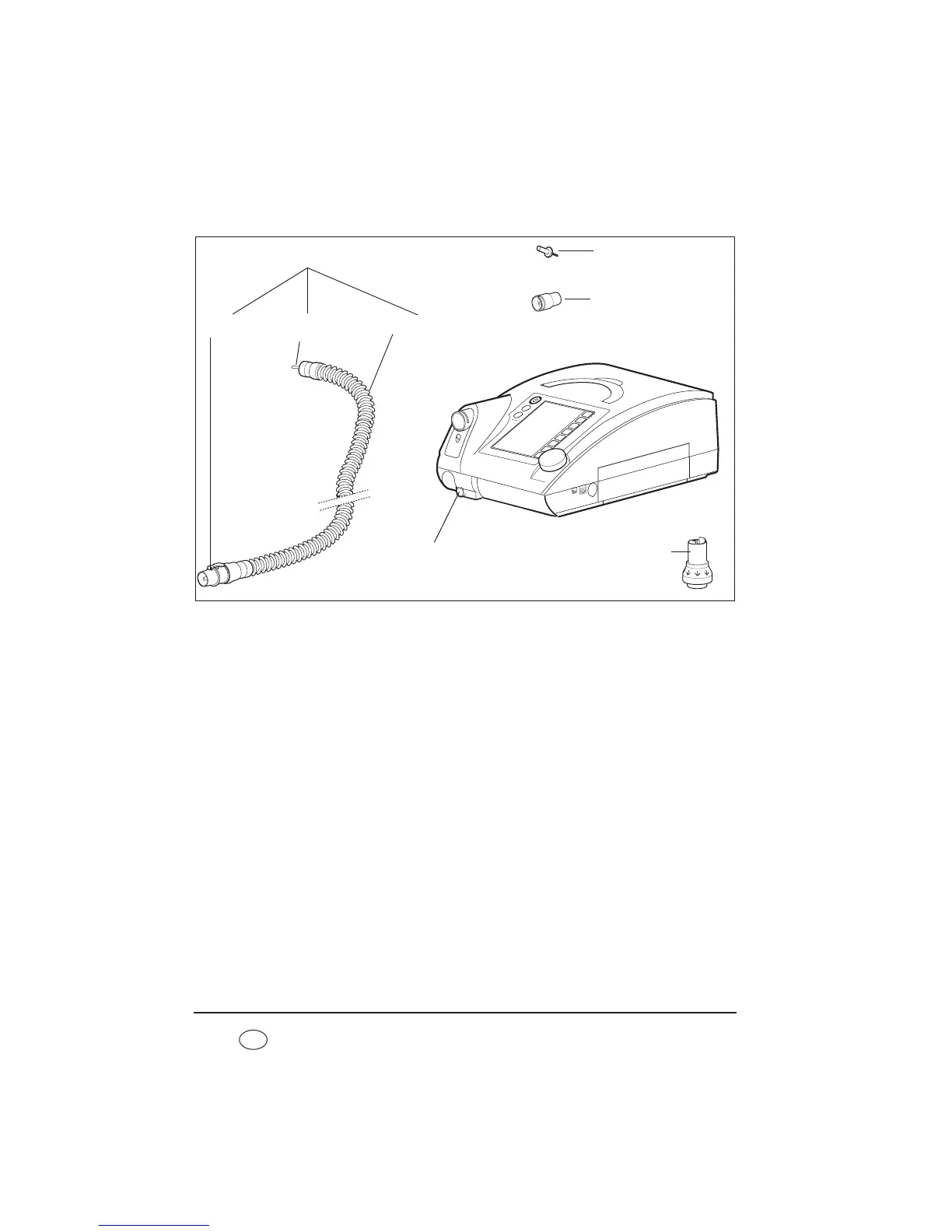

Therapy device with leakage ventilation
Key
17 Patient circuit
The air flows to the patient/ventilator interface
through the patient circuit. The patient circuit
consists of creased hose, pressure measuring tube
and adapter.
18 Adapter
For connecting the patient circuit to the device
outlet port.
19 Pressure measuring tube
For measuring therapy pressure.
20 Creased tube
Delivers respiratory air to the patient.
21 Sealing plug (2x)
For sealing off the pressure measuring tube
during cleaning (only with leakage ventilation).
22 Drying adapter
Required to dry the patient circuit with the aid of
the therapy device and for the function check.
23 Exhalation system
Carbon dioxide-enriched exhaled air escapes here
during therapy.
24 Connection for O
2
sensor
For connecting an oxygen sensor which can be
used to measure oxygen concentration in
respiratory air.
