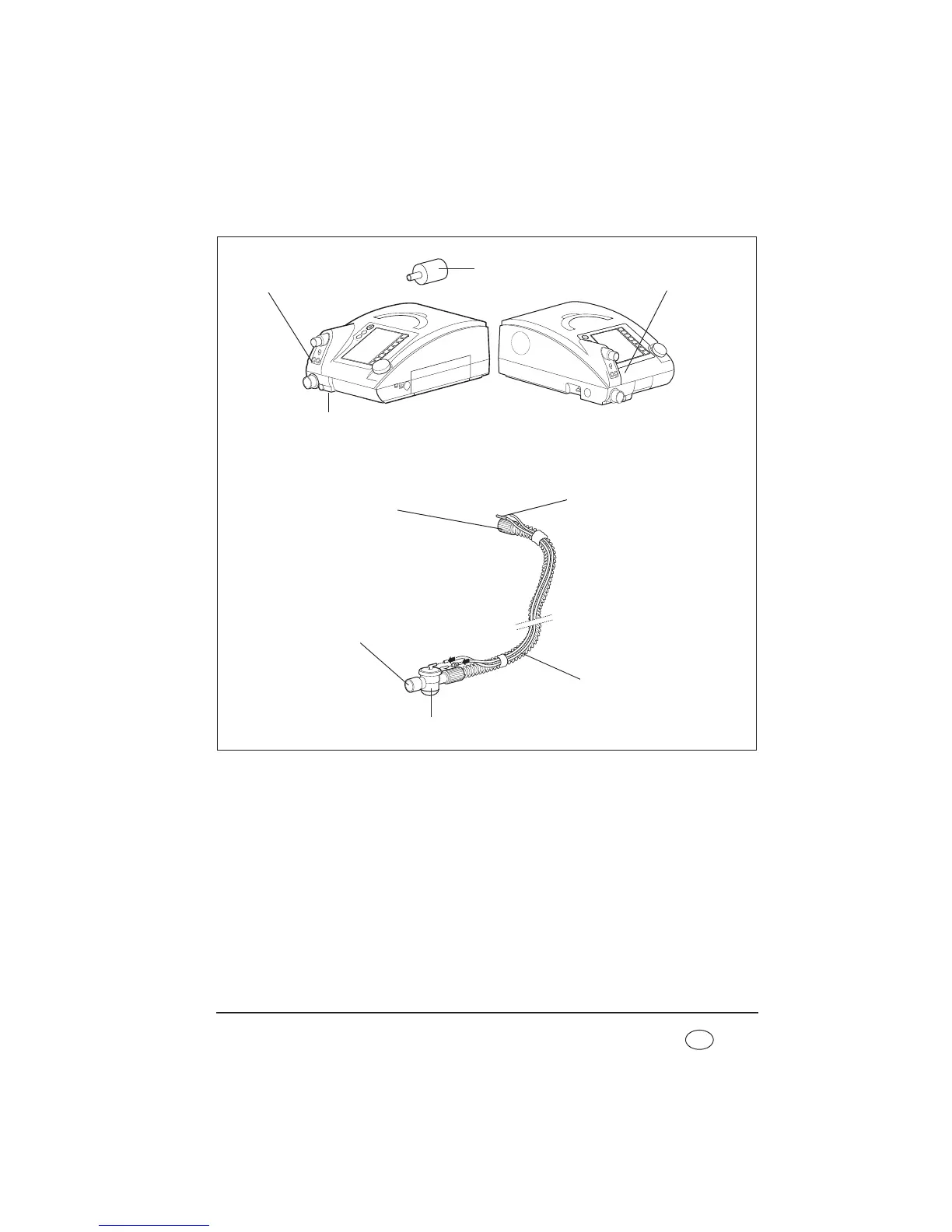

Therapy device, single patient circuit with patient valve
Key
25 Connection for O
2
sensor
For connecting an oxygen sensor which can be
used to measure oxygen concentration in
respiratory air (only with patient circuits with a
patient valve).
26 Connection for pressure measuring
tube (marked blue)
For connecting the pressure measuring tube to
the device.
27 Test adapter
Required for the function check of the therapy
device.
28 Connection for valve control tube
For connecting the valve control tube to the
device.
29 Single patient circuit
Delivers respiratory air to the patient.
26 Connection for pressure
measuring tube (marked
blue)
29 Single patient circuit
30 Pressure-
measurement
tube (marked
blue)
31 Valve control
tube
32 Patient valve
28 Connection for
valve control tube
33 Connection for
patient
34 Connection for
device outlet port
27 Test adapter
25 Connection for O
2
sensor
