Weishaupt WM-L20/2-A R User Manual

Installation and operating instruction
Oil burner WM-L20/2-A R (W-FM100/200)
3 Product description
83252902 1/2019-09 La
16-84
3.4.6 Rating
Combustion heat rating
Combustion heat rating 600 … 2100 kW
50 … 176 kg/h
(1
(1
The oil throughput data relates to a calorific value of 11.9 kWh/kg for fuel oil EL.

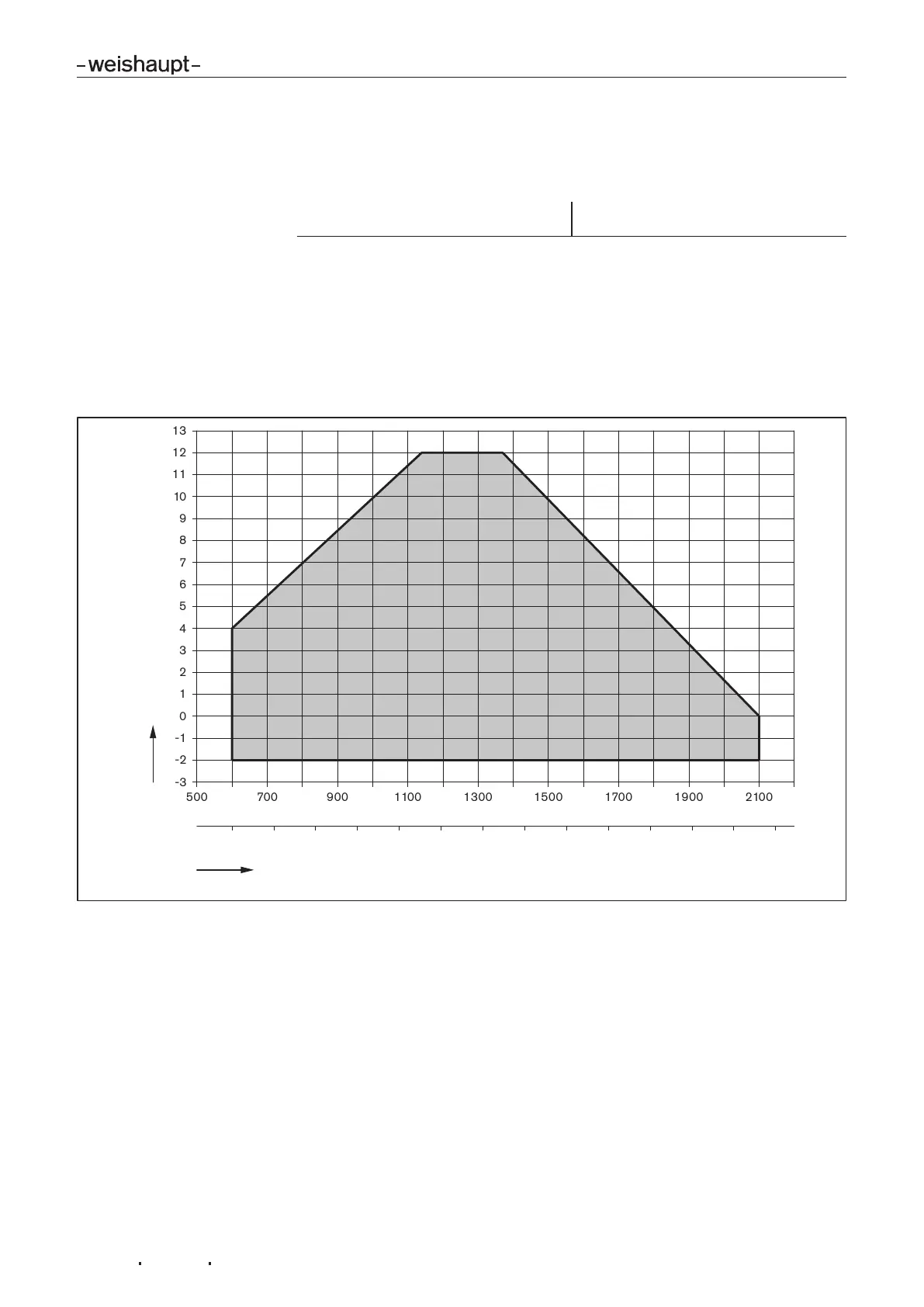

Capacity graph
Capacity graph to EN267.
The capacity data given relates to an installation elevation of 500m above sea
level. For installation elevations above 500m a capacity reduction of
approx.1%per100m applies.
A limited capacity graph is valid for ducted air intake.
6
7
8
9
10
11
12
13
500
700
900
1100
1300
1500
1700
1900
2100
-3
-2
-1
0
1
2
3
4
5
2
1
50 70 90 110 130 150 170
1 Combustion heat rating [kW] or [kg/h]
2 Combustion chamber pressure [mbar]
