9.6 Removing and refitting air damper actuator
Observe notes on servicing [ch.9.1].

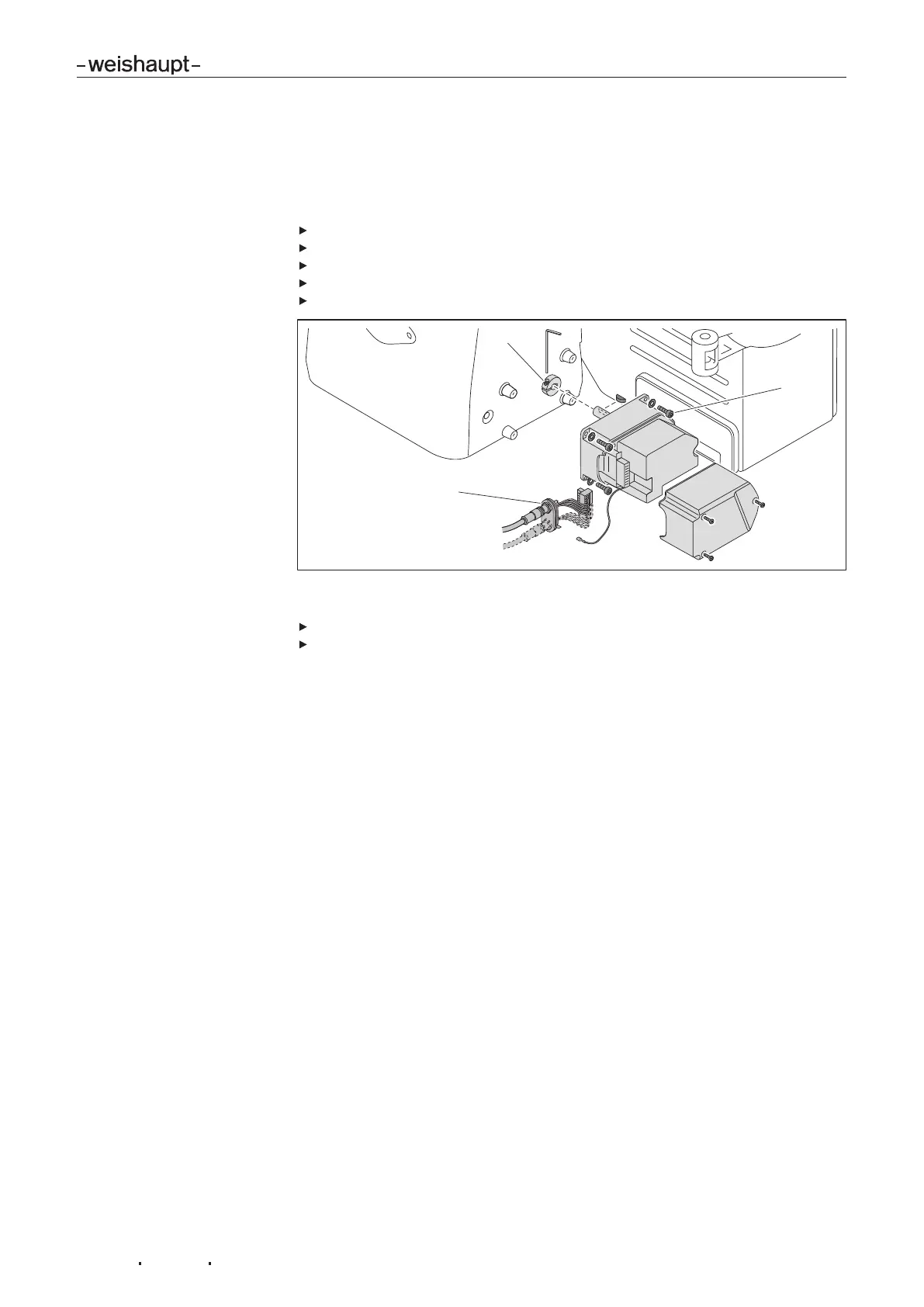

Removing
Remove actuator cover.
Unplug plug and remove cable entry gland1.
Undo locknut2 on the coupling.
Remove screws3.
Remove actuator from the coupling.
1
2
3
Refitting
Refit actuator in reverse order, ensuring correct alignment of shaft key.
Check address and Bus termination, see installation and operating manual Com-
bustion Manager.
