Weishaupt WM-L20/2-A R User Manual

Installation and operating instruction
Oil burner WM-L20/2-A R (W-FM100/200)
4 Installation
83252902 1/2019-09 La
25-84

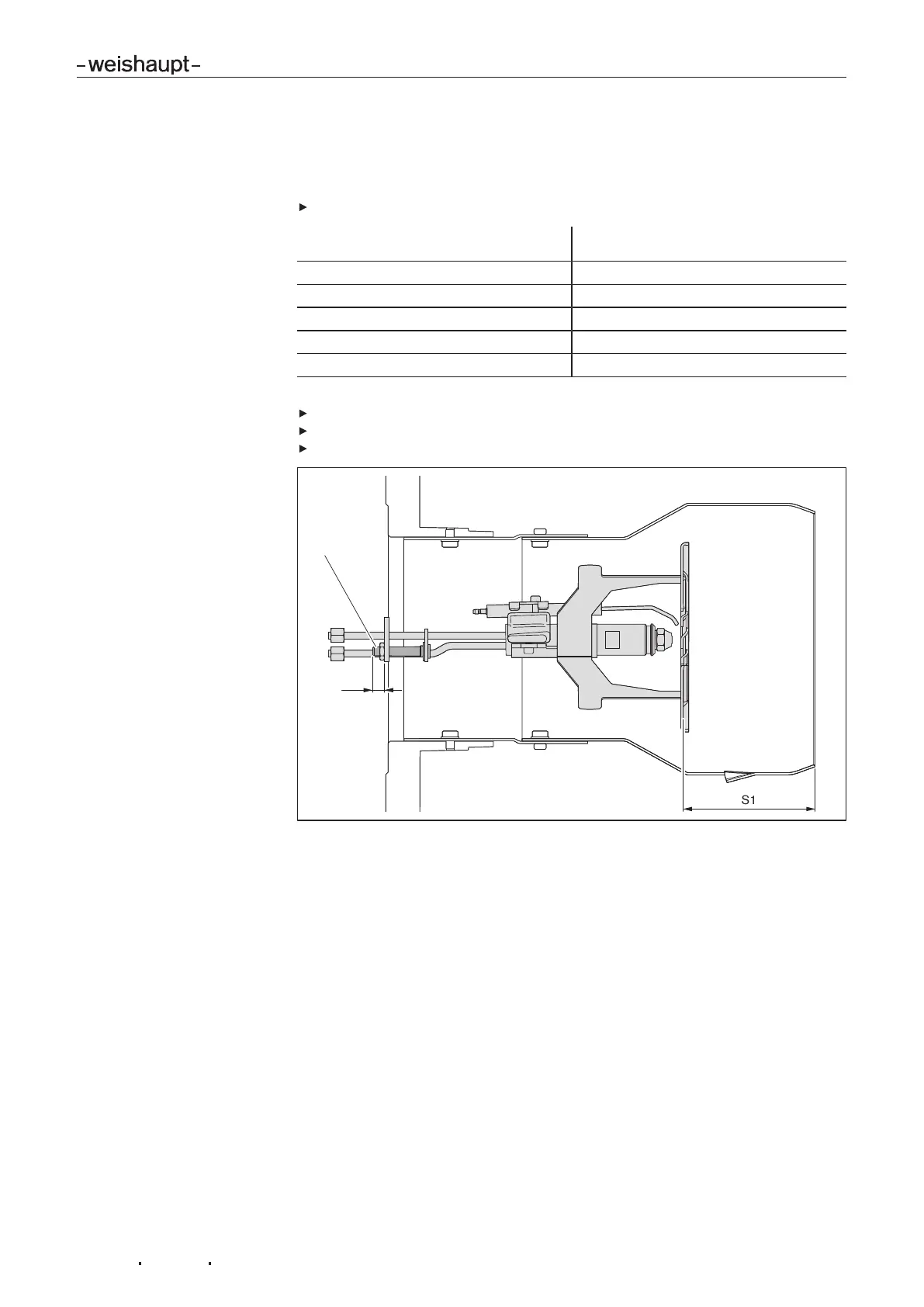

3. Set distance flame tube to diffuser
The distance flame tube to diffuser (dimensionS1) determined from the setting dia-
gram is set at setting bolt1 using auxiliary dimension EV.
Measure auxiliary dimension EV and compare to the table below.
Distance determined
Flame tube to diffuser (dimension S1)
Auxiliary dimension Ev
123 mm 30 mm (combustion head CLOSED)
118 mm 25 mm
113 mm 20 mm
108 mm 15 mm
103 mm 10 mm (combustion head OPEN)
If auxiliary dimensions EV varies from the measured value by more than 5 mm:
Undo locknut on setting bolt 1.
Turn setting bolt until auxiliary dimension EV has been reached.
Re-tighten locknut.
1
S1
E
v
