Weishaupt WM-L20/2-A R - Page 27

Installation and operating instruction
Oil burner WM-L20/2-A R (W-FM100/200)
4 Installation
83252902 1/2019-09 La
27-84

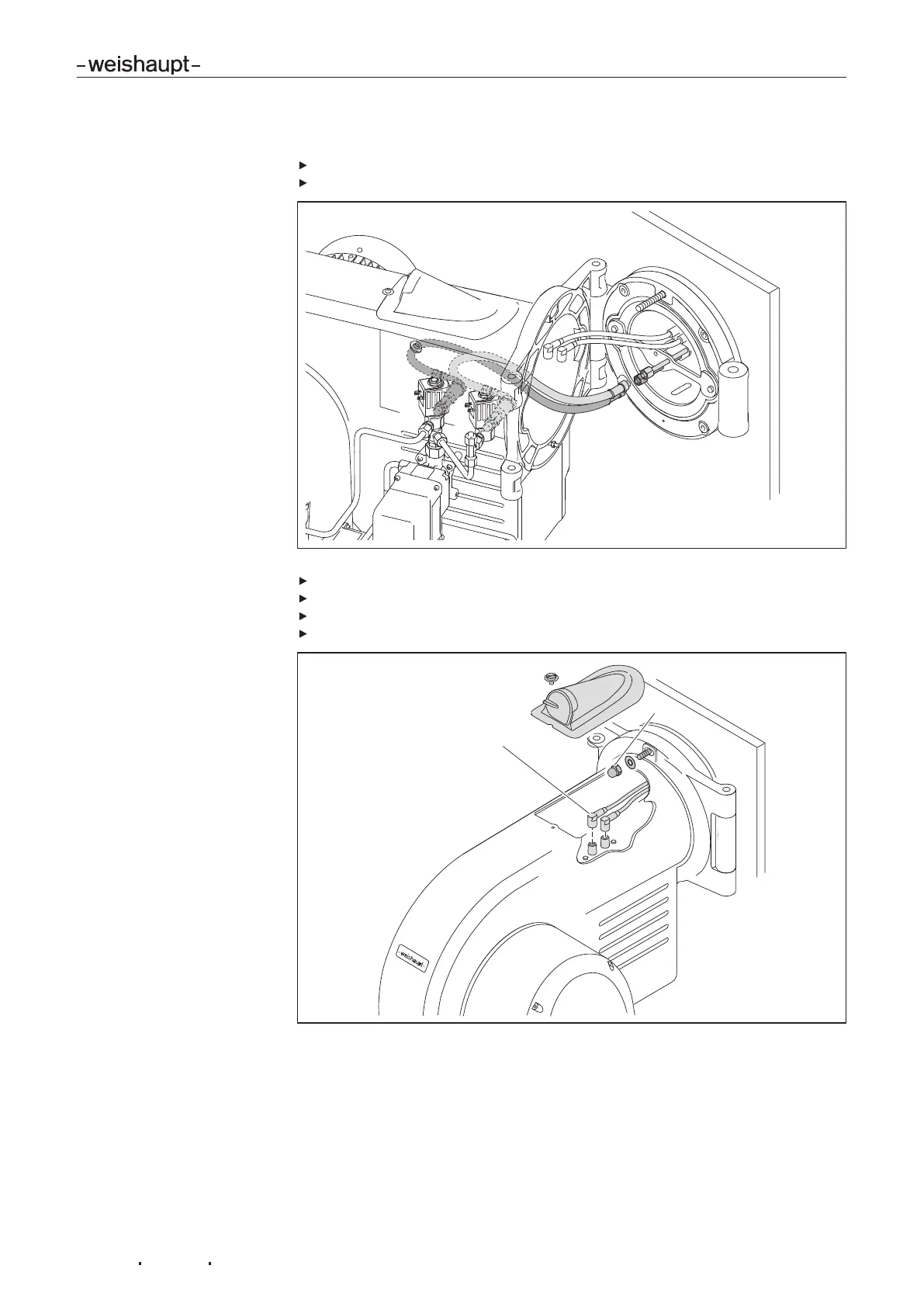

With combustion head extension
Connect pressure hoses ensuring correct allocation.
Place ignition lines from the hinged flange into the burner housing.
V
R
Close burner and secure with dome nut2.
Remove view port cover.
Plug in ignition lines1.
Refit view port cover.
1
2
