Rotary indexing ring NR

Technical data

Product type: NR1500Z

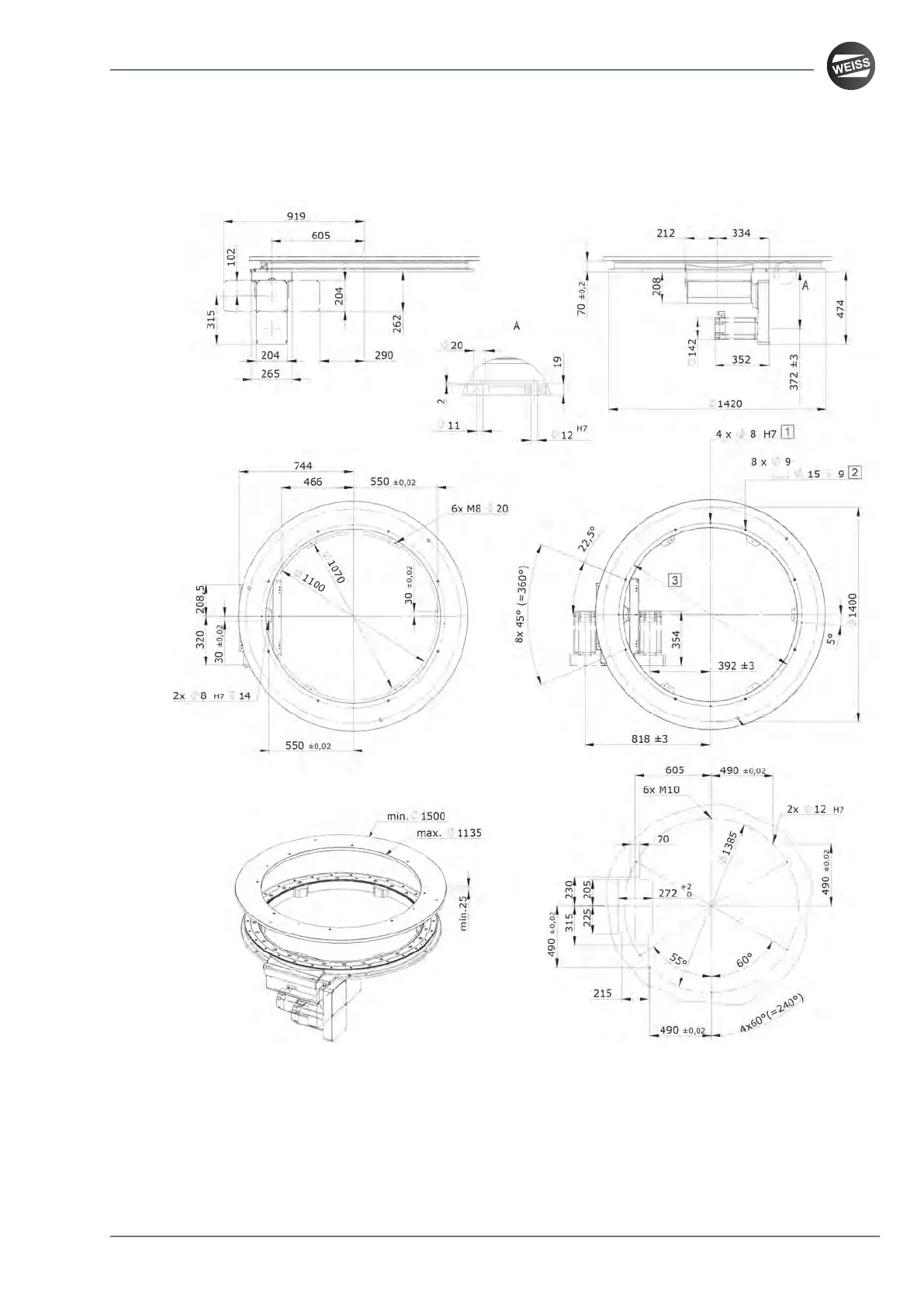

Figure 4: Lengths and diameters in mm

1 Through hole 3 Ø 1195.5 ± 0.1; ± 0.02 at Ø 8 H7

2 Through hole

Mounting instructions_062019_1.0_en

21 / 62
