Rotary indexing ring NR
Mounting

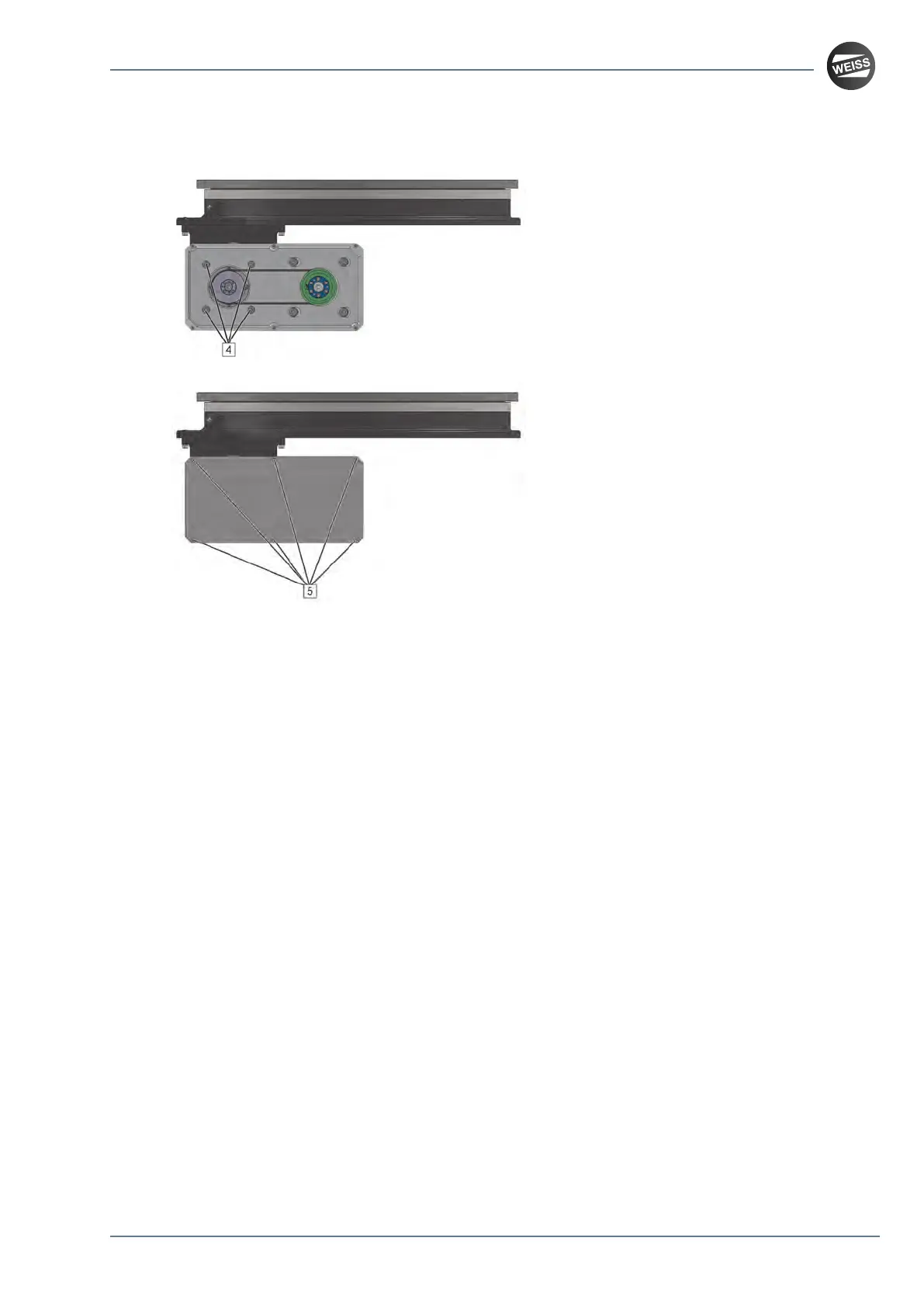

4. Fit the four screws [4] of the drive housing
and tighten them cross-wise.
P
The toothed belt is correctly tensioned if
it can be manually twisted by - depending
on the length of the toothed belt - 45° to
90° along the longitudinal axis in the center
between the two pulleys.
P
Contact WEISS GmbH if you need the
frequency for adjusting the toothed belt with a
belt tension meter.
5. Mount the cover by means of the screws [5].
6. Remove all tools and equipment.
7. Perform a test run.
Mounting instructions_062019_1.0_en
33 / 62
