Rotary indexing ring TR
Transportation
2. Use properly rated load lifting and handling
equipment and hoisting belts/hoisting
equipment for transporting the product.

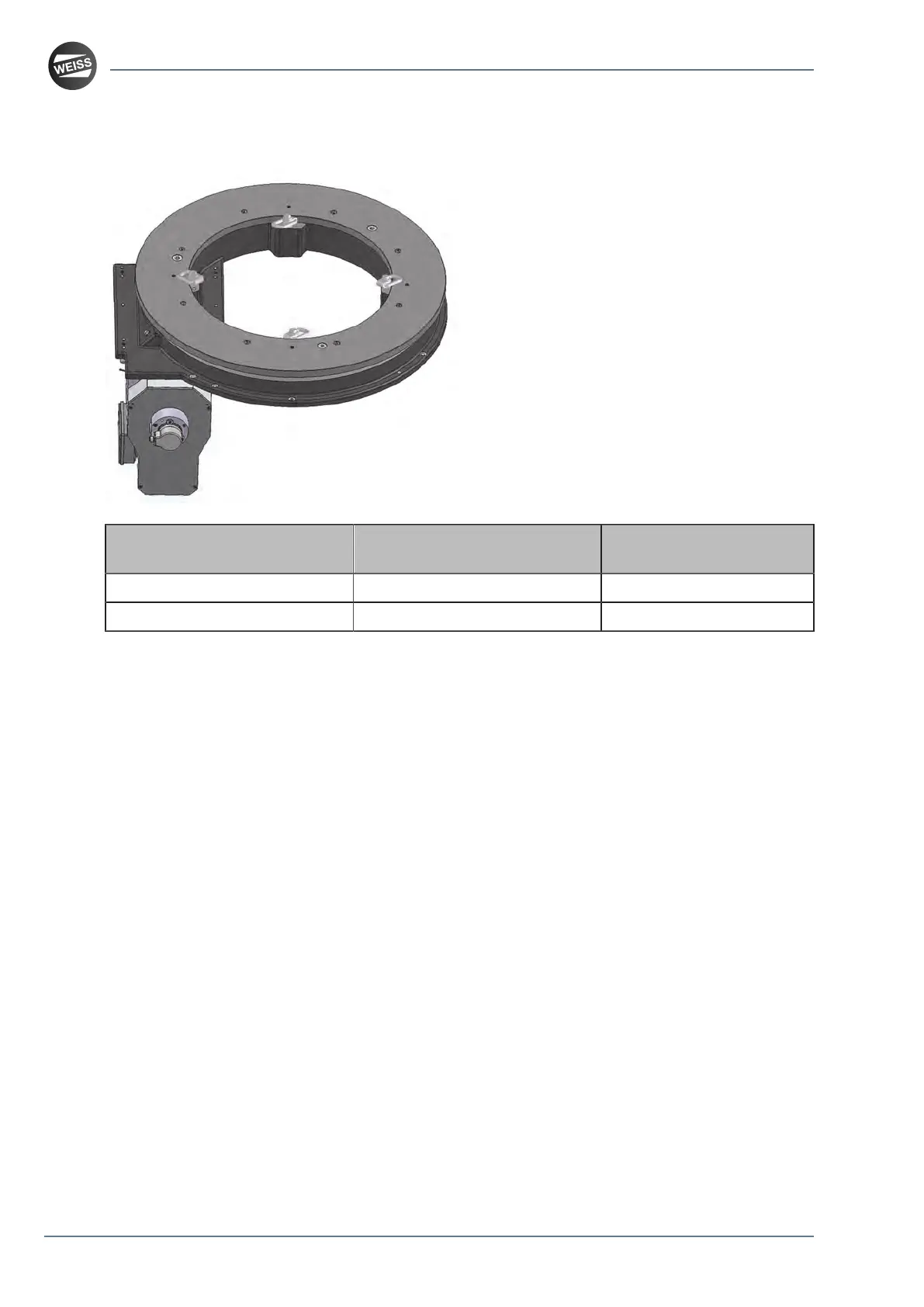

3. Screw the load lifting and handling equipment
into the threads (see table) at the positions
shown in the drawing.
4. Fasten the hoisting belts or the hoisting
equipment to the eyelets of the load lifting or
load handling equipment.
Product type Number of pieces of load lifting
and handling equipment
Thread
TR0750A, TR1100A, TR1500A 4 M8
TR2200A 4 M12
If the threads for the load lifting and handling equipment mentioned above are covered, it is also
possible to lift the product via the output flange/rotary ring.
30 / 79
Mounting instructions_062019_4.0_en
