Rotary indexing ring TR

Mounting

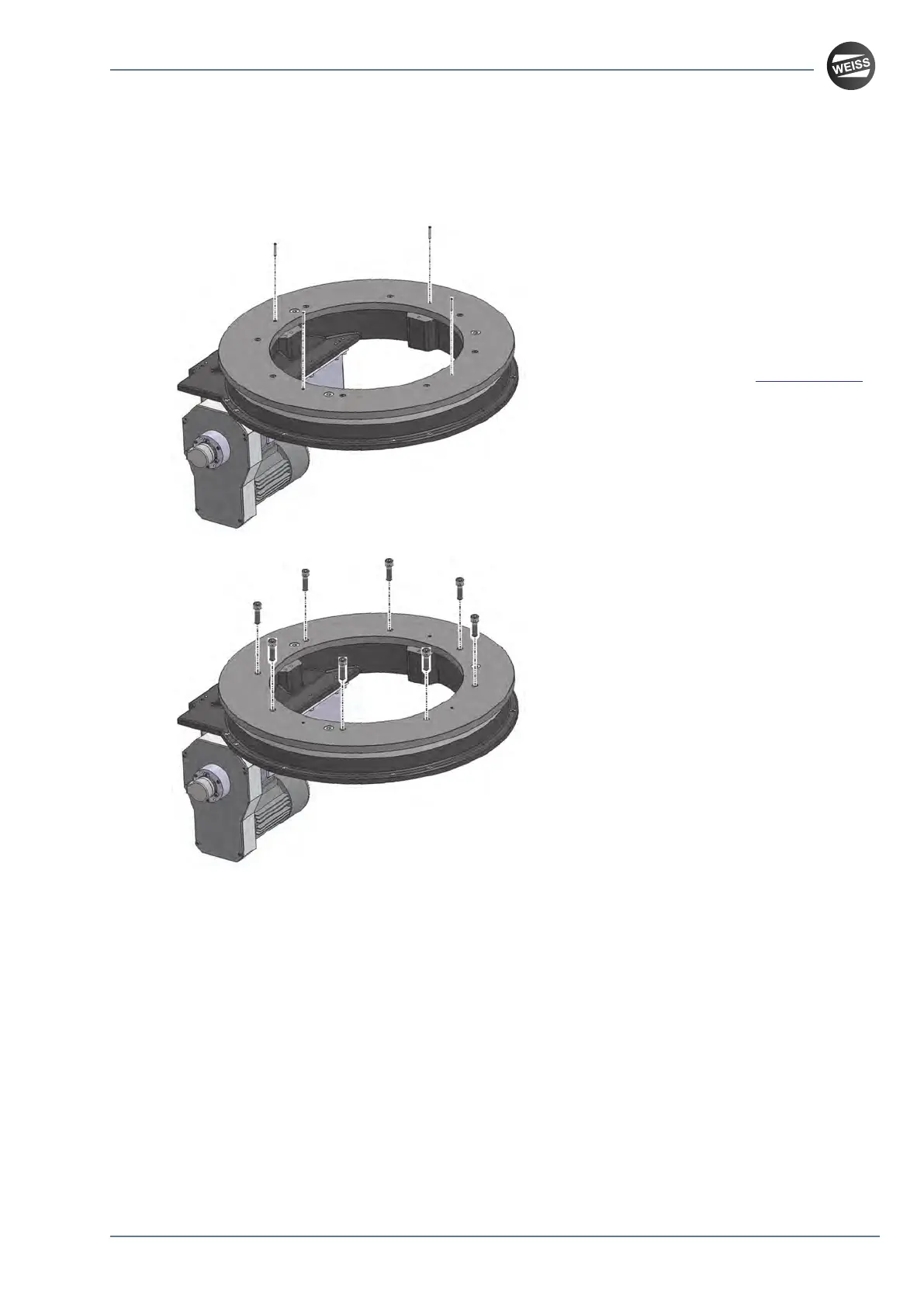

Mounting a rotary ring

A rotary ring may only be mounted via the fit holes and threads provided.

1. Place the rotary ring onto the output flange.

2. Center the four parallel pins and then drive in

the first parallel pin by one third of the way.

3. Screw in all screws and tighten all screws.

4. Fully drive in all parallel pins.

5. Tighten all screws cross-wise with the

specified tightening torque, see chapter 8.2.

Mounting instructions_062019_4.0_en

37 / 79
