Load Balancing (BL) Server:
Business Topology

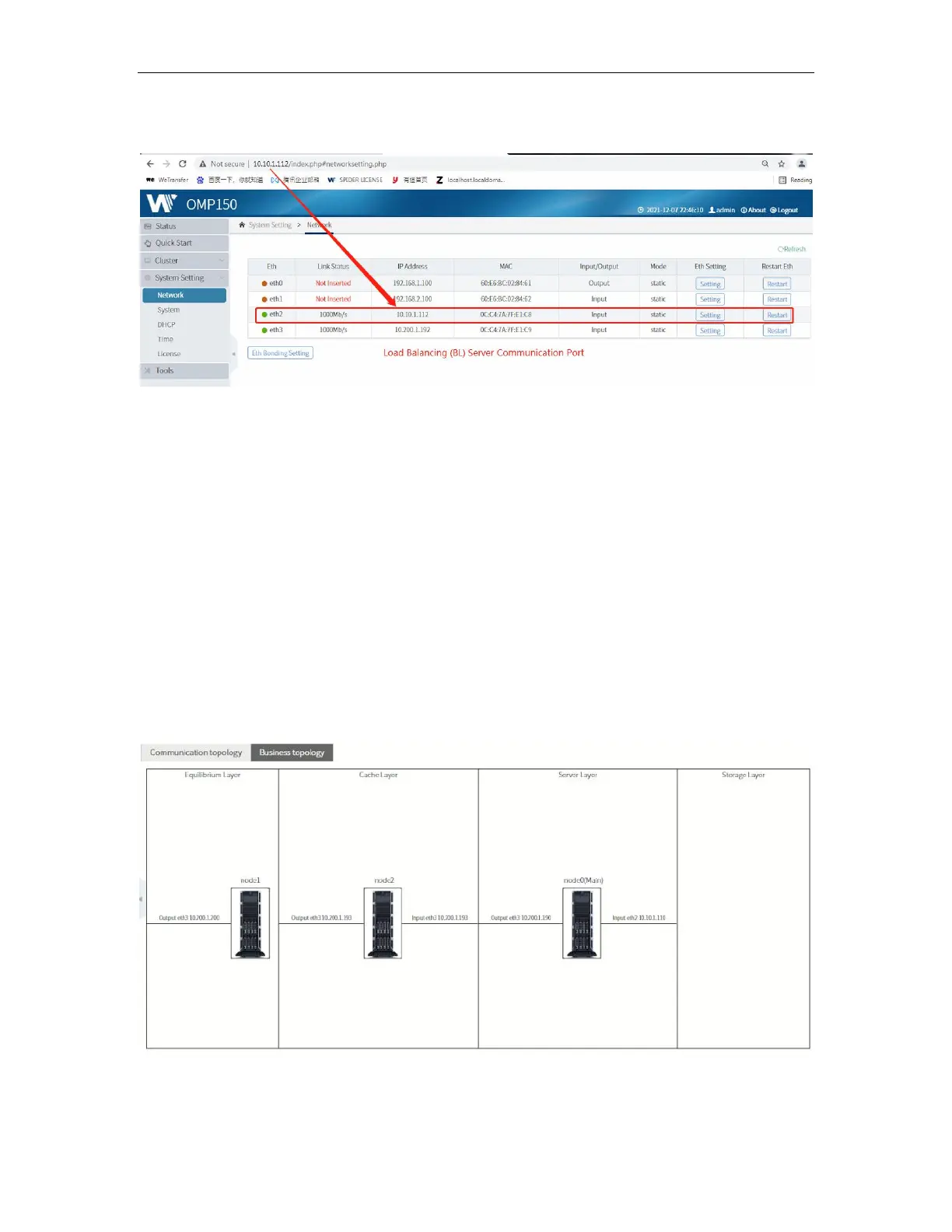

This shows the topology for the signal flow in the servers/nodes. The ethernet number
with assigned IP address for the input and output of each server is shown here. Please
refer to 3.10.1 Network for configuration of ethernet ports.
Following are the sample port configurations of the cluster as can be seen in business
topology:
