CMP100 User Guide
16
3.4 Channels
This menu allows you to configure:
• Channel List
• Channel Grouping
• Local Channels
• EPG

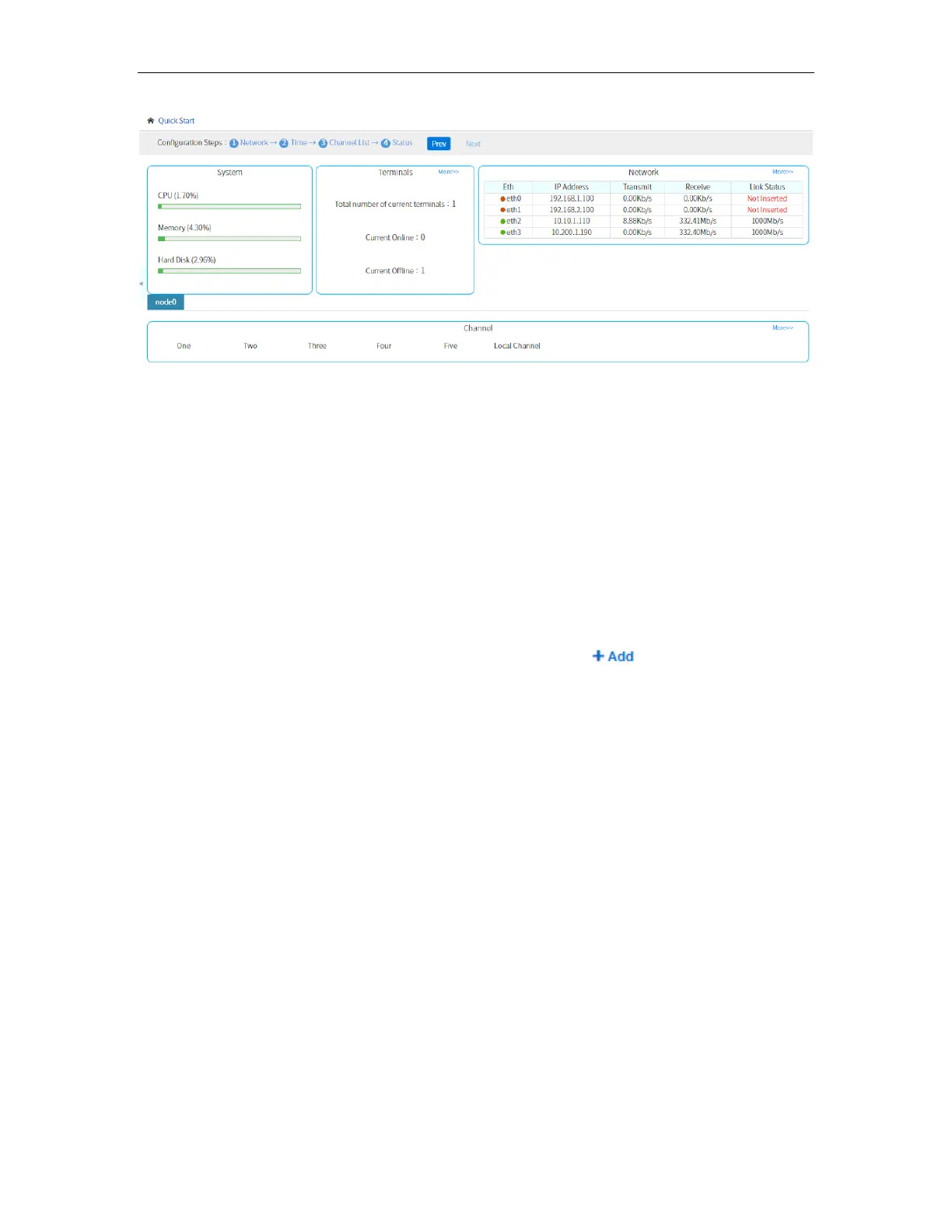

3.4.1 Channel List
Channel tab allows you to add input stream, delete, import, export service configuration
and change the channel order on this page. You can click and do the followings
on the appearing line:
• Edit Name
You can modify the name of the input service on this field.
• Select the ETH port where the source is connected
For the Source port, there will be a drop-down arrow with which you can select
the ETH port for the source. This will only display the port which is set as INPUT
on the NETWORK page.
• Select the source protocol (UDP, RTP, RTSP or HTTP)
• Type in the source IP address and IP port
• Select the Output protocol (UDP, RTP or HTTP)
• Type in the Output IP address and IP port
• Select the ETH port where you want to output
For the HTTP protocol, the output port will be “ALL”
For the UDP or RTP protocol, there will be a drop-down arrow with which you can
select the ETH port for the output. This will only display the port which is set as
OUTPUT on the NETWORK page.
• Set Logo on the channel if there is needed.
• Enable the Channel.
• Save and delete the Channel.
