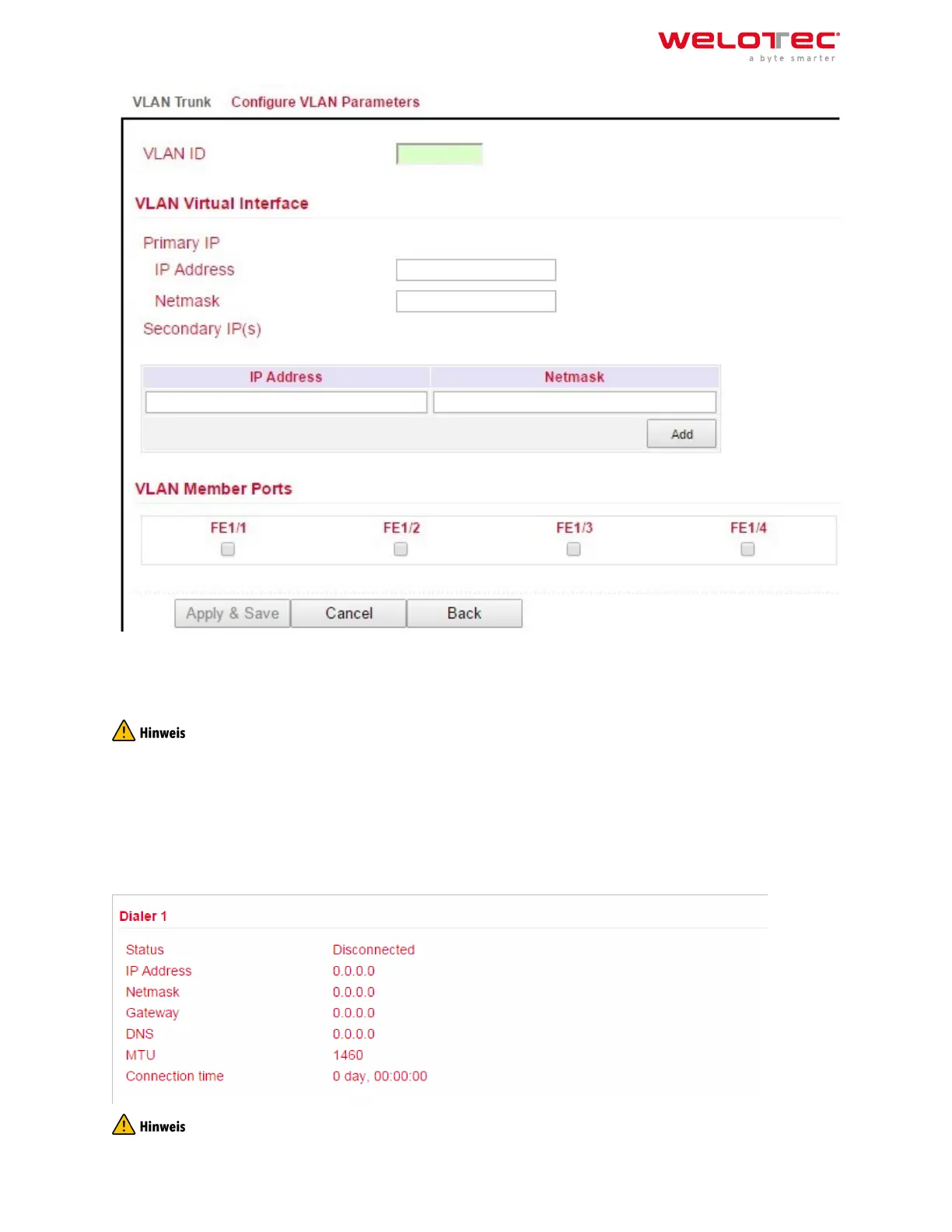

Assign a new VLAN ID (e.g. 3) and then a Primary IP address. If required, multiple IP addresses can be entered under
Secondary IP(s) (confirm with Add aer each addition).
Under VLAN Member Ports, one or more FastEthernet port/s are assigned to the VLAN by checking the checkbox.
The TK800 series routers do not have a built‑in ADSL modem. For the use of ADSL Dialup, an external ADSL modem
must be connected to the WAN port.
3.2.4 3.2.4. ADSL Dialup (PPPoE)
3.2.4.1. Status
