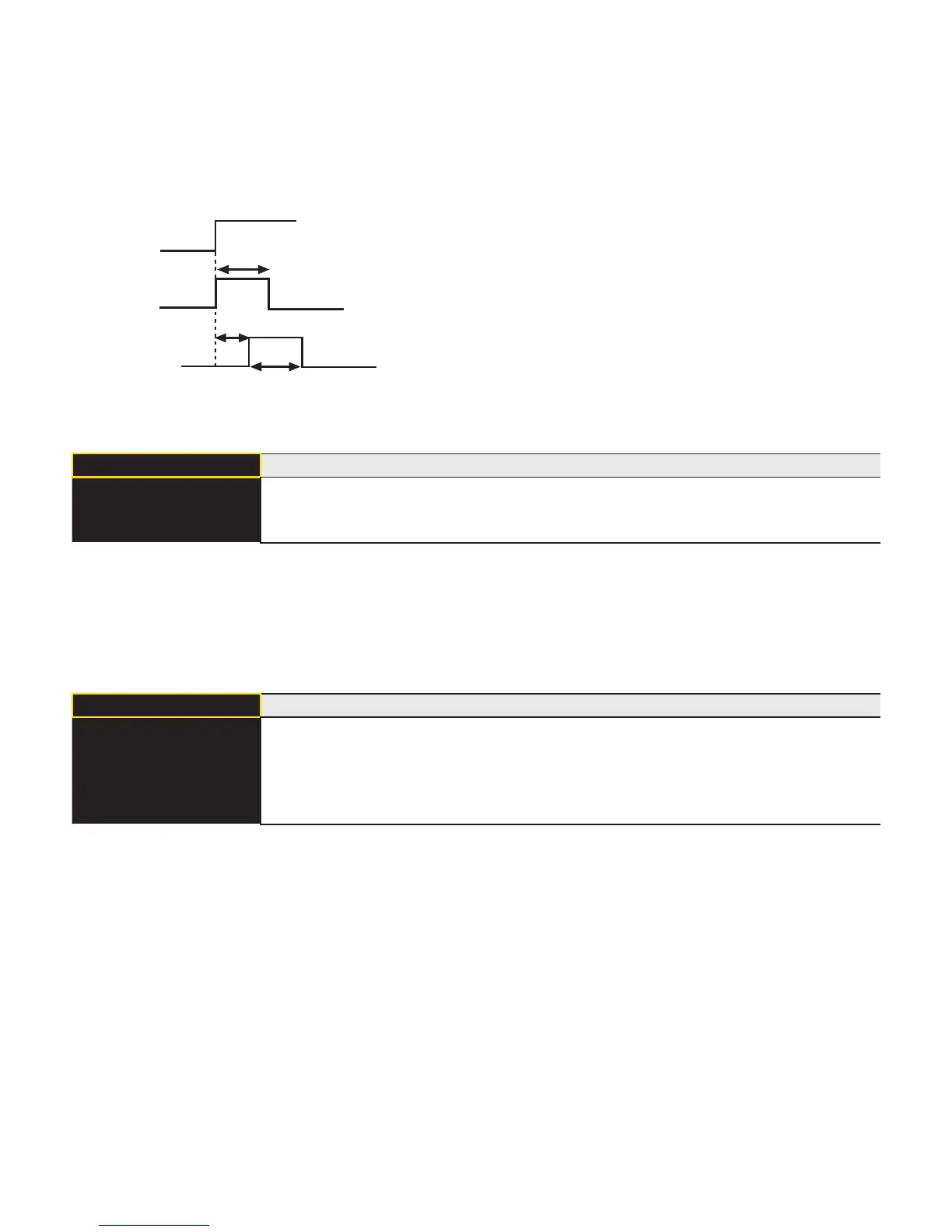

7.3.11. Switching Output Pulse Length
The pulse length defines how long the switching state is held. The function can be combined with a response
time delay.
Object
Impulse
Pulse combined
with ON Delay
Pulse Length
ON Delay
Pulse Length
Note: The menu item is only visible if Expert Menu “On” has been set.
Pulse Set pulse length
Pulse length in ms A pulse length of 0 to 10000 ms can be set by pressing the “+” key or the “–” key.
You can keep a key pressed for a longer time in order to make larger numerical
jumps.
7.3.12. Switching Output Teach-In External
The teaching mode that the switching output is to have can be defined in this menu. Following a signal on a
pin that has been set as the external teaching input for this switching output, a Teach-In is conducted in the set
teaching mode.
T Extern Teaching Mode for External Teach-In
 T Foreground
 T Backgrnd
 T Window
3 Back
7 Run
T Foreground: Foreground Teach-In
T Backgrnd: Background Teach-In
T Window: Window Teach-In
