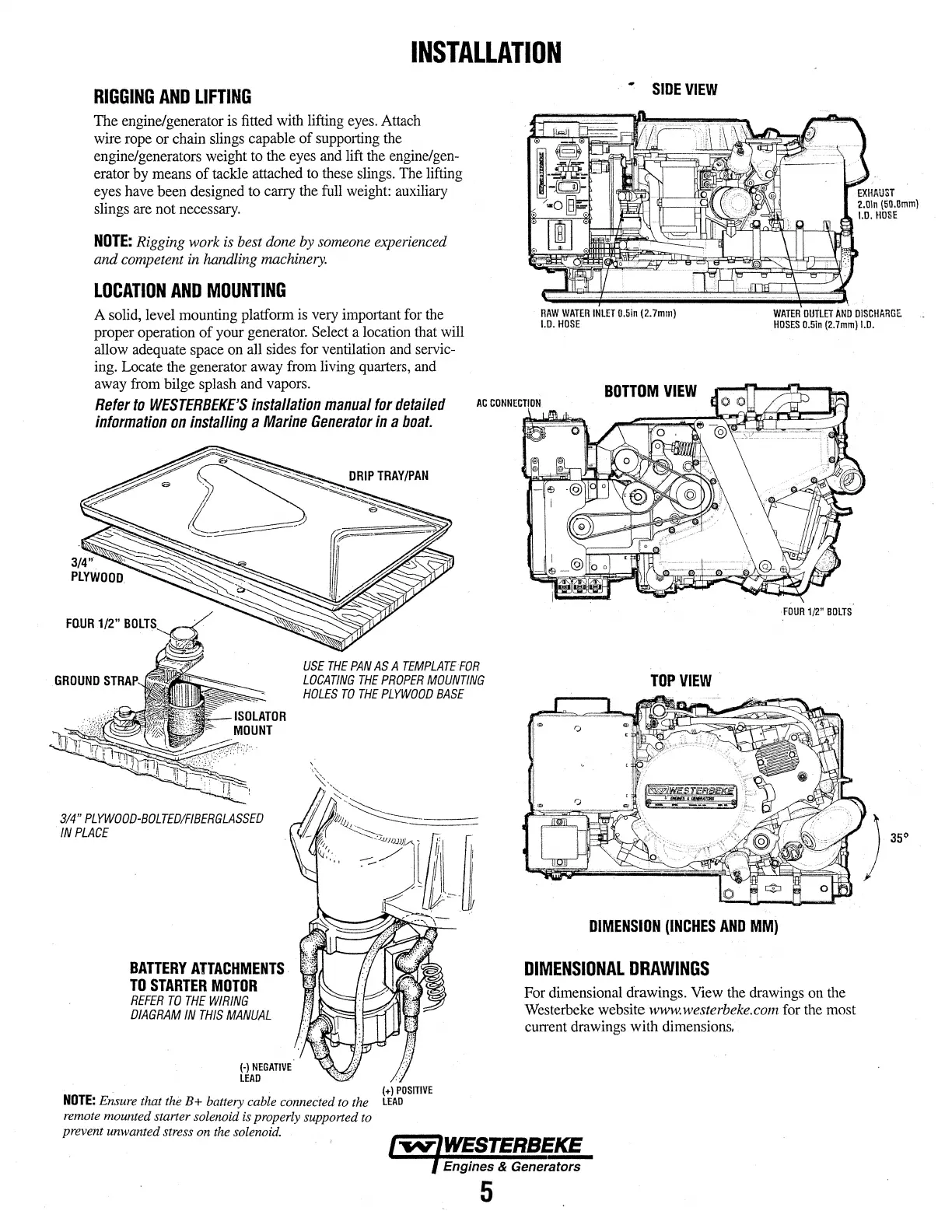

INSTALLATION
RIGGING
AND
LIFTING
The engine/generator
is
fitted
with
lifting
eyes.
Attach
wire rope or chain
slings
capable of supporting
the
engine/generators weight to the
eyes
and
lift
the
engine/gen-
erator
by
means
of tackle attached
to
these
slings.
The
lifting
eyes
have
been designed
to
carry
the
full
weight:
auxiliary
slings
are
not
necessary.
NOTE:
Rigging work
is
best
done
by
someone
experienced
and competent
in
handling
machinery.
LOCATION
AND
MOUNTING
A solid, level mounting platform
is
very
important
for
the
proper operation of
your
generator. Select a location that will
allow adequate space
on
all sides for ventilation
and
servic-
ing.
Locate the generator away
from
living quarters,
and
away
from
bilge splash and
vapors.
Refer
to
WESTERBEKE'S
installation
manual
for
detailed
information
on
installing
a
Marine
Generator
in
a
boat.
USE
THE
PAN
AS
A
TEMPLATE
FOR
LOCATING
THE
PROPER
MOUNTING
HOLES
TO
THE
PLYWOOD
BASE
3/4"
PLYWOOD-BOLTED/FIBERGLASSED
IN
PLACE
BATTERY
ATTACHMENTS
.
TO
STARTER
MOTOR
REFER
TO
THE
WIRING
DIAGRAM
IN
THIS
MANUAL
{-)NEGATIVE
LEAD
·
(+)
POSITIVE
NOTE:
Ensure
that
the
B+
battery
cable
connected
to
the
LEAD
remote
mowued starter solenoid
is
properly supported
to
prevent unwanted stress
on
the
solenoid.
5
"':
SIDE
VIEW
RAW
WATER
INLET0.5in
(2.7mm)
J.D.
HOSE
TDPVIEW.
WATER
OUTLET
AND
DISCHARGE
HOSES
0.51n
(2.7mm)
I.D.
·FOUR
1/2"
BOlTS
DIMENSION
(INCHES
AND
MM)
DIMENSIONAL
DRAWINGS
For dimensional drawings.
View
the
drawings
on
the
Westerbeke
website www.westerbeke.com
for
the
most
cun-ent
drawings with
dimensions.
