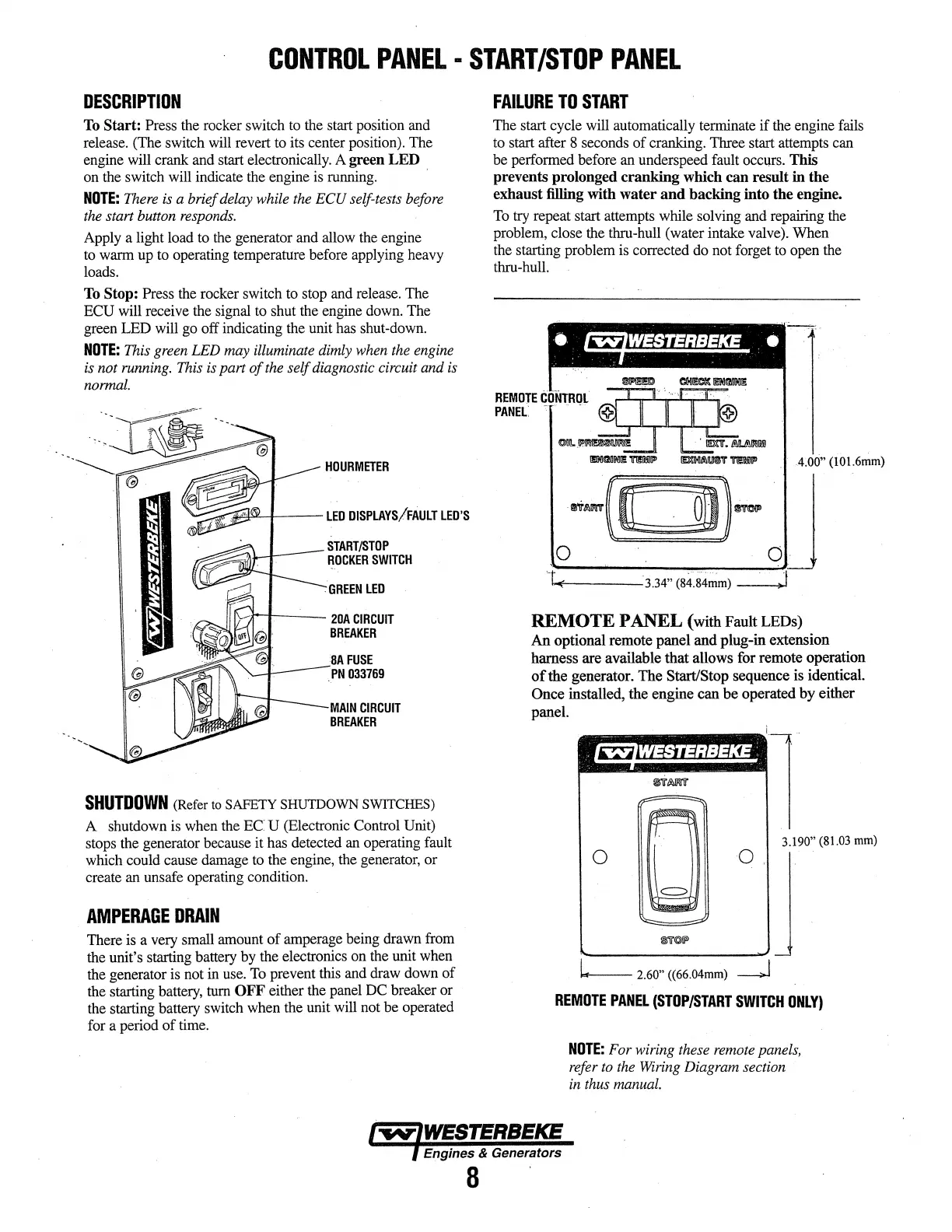

CONTROL
PANEL
•
START/STOP
PANEL
DESCRIPTION
To
Start: Press
the
rocker
switch
to
the
start position
and
release.
(The
switch
will
revert
to
its
center position).
The
engine will crank
and
start electronically. A green LED
on
the
switch
will
indicate
the
engine
is
running.
NOTE:
There
is
a brief delay while
the
ECU self-tests
before
the
start button
responds.
Apply
a light load
to
the
generator
and
allow
the
engine
to
warm
up
to
operating temperature before applying
heavy
loads.
To
Stop:
Press
the
rocker switch
to
stop
and
release.
The
ECU
will receive
the
signal
to
shut
the
engine
down.
The
green
LED
will
go
off indicating
the
unit
has
shut-down.
NOTE:
This
green
LED
may
illuminate
dimly
when
the
engine
is
not
running.
This
is
part
of
the
self diagnostic circuit and
is
normal.
HOURMETER
~~~~----LED
DISPLAYS/FAULT
LED'S
START/STOP
ROCKER
SWITCH
.GREEN
LED
lv;t---~1----
20A
CIRCUIT
BREAKER
SA
FUSE
PN
033769
MAIN
CIRCUIT
BREAKER
SHUTDOWN
(Refer
to
SAFETY
SHUIDOWN
SWITCHES)
A shutdown
is
when
the
EC:
U (Electronic Control
Unit)
stops
the
generator because it
has
detected
an
operating
fault
which
could cause
damage
to
the
engine,
the
generator,
or
create
an
unsafe operating condition.
AMPERAGE
DRAIN
There
is
a
very
small amount of amperage being drawn
from
the
unit's starting battery
by
the
electronics
on
the
unit
when
the
generator
is
not
in
use.
To
prevent
this
and
draw
down
of
the
starting
battery,
turn OFF either
the
panel
DC
breaker or
the
starting battery
switch
when
the unit
will
not
be operated
for
a period of
time.
FAILURE
TO
START
The
start cycle
will
automatically terminate if
the
engine
fails
to
start after 8 seconds of cranking. Three start
attempts
can
be
performed before
an
underspeed
fault
occurs.
This
prevents prolonged cranking which
can result in the
exhaust filling with water
and
backing into the engine.
To
try repeat start
attempts
while solving
and
repairing
the
problem,
close
the
thru-hull (water intake
valve).
When
the
starting problem
is
corrected
do
not
forget
to
open
the
thru-hull.
(101.6mm)
~t~<r------3.34"
(84.84mm)
--,)o.l
REMOTE PANEL (withFaultLEDs)
An optional remote panel and plug-in extension
harness are available that allows for remote operation
of
the generator. The Start/Stop sequence
is
identical.
Once installed, the engine can
be
operated by either
panel.
3.190"
(81.03
mm)
0
0.
L 2.60"
((66.04mm)
__J
REMOTE
PANEL
(STOP/START
SWITCH
ONLY)
NOTE:
For wiring these
remote
panels,
refer
to
the
Wiring
Diagram section
in
thus
manual.
Engines & Generators
8
