ENGINE
ADJUSTMENTS
GENERATOR
DRIVE
BELT
(ADJUSTING)
Generator models built prior
to
April 2015 ( OC
date
code
and
older).

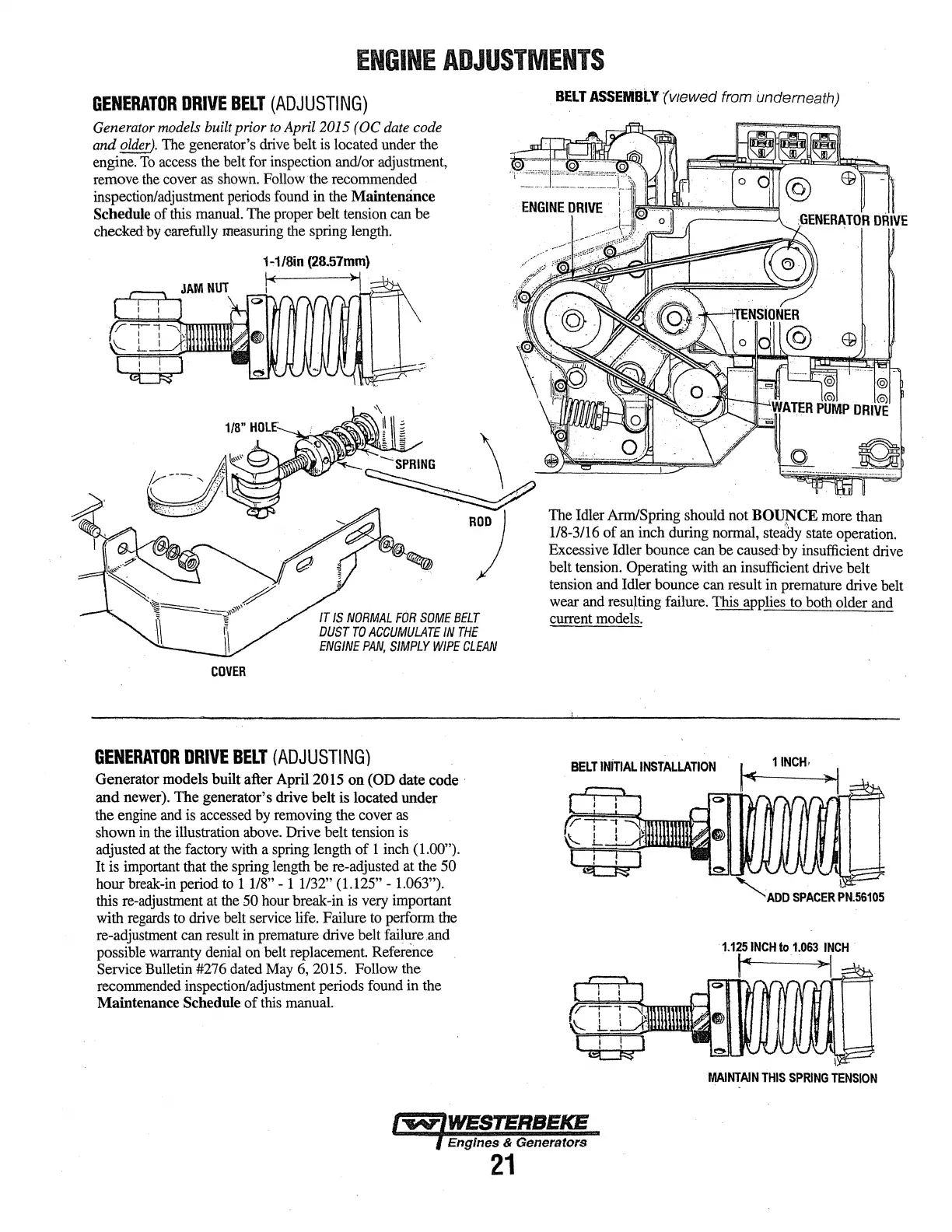

The generator's drive belt is located under the
engine.
To
access the belt for inspection and/or adjustment,
remove the cover as shown. Follow the recommended
inspection/adjustment periods found in the
Maintenance
Schedule
of
this manual. The proper belt tension can
be
checked by -carefully measuring the spring length.
COVER
1-1/Sin
{28.57mm}
!'"'
).1
Q
~~~
IT
IS
NORMAL
FOR
SOME
BELT
DUST
TO
ACCUMULATE
IN
THE
ENGINE
PAN,
SIMPLY
WIPE
CLEAN
GENERATOR
DRIVE
BELT
(ADJUSTING)
Generator
models built after
April2015
on
{OD date code
and
newer).
The
generator's drive
belt
is located
under
the engine and is accessed by removing the cover as
shown in the illustration above. Drive belt tension is
adjusted at the factory with a spring length
of
1 inch (1.00").
It
is important that the spring length be re-adjusted at the
50
hour break-in period to 1
1/8"-
1 1132"
(1.125"-
1.063").
this re-adjustment at the 50 hour break-in is very important
with regards to drive belt service life. Failure to perform the
re-adjustment can result in premature drive belt failure .and
possible warranty denial on belt replacement. Reference
Service Bulletin #276 dated May 6,
2015. Follow the
recommended inspection/adjustment periods found in the
Maintenance
Schedule
of
this manual.
BELT
ASSEMBLY
(vtewed from underneath)
The Idler Arm/Spring should not
BOUNCE
more than
118-3/16
of
an inch during normal, steady state operation.
Excessive Idler bounce can
be
caused·
by
insufficient drive
belt tension.
Operating with an insufficient drive belt
tension and Idler bounce can result in premature drive belt
wear and resulting failure. This applies to both older and
current models.
BELT
INITIAL
INSTALLATION
"'ADD
SPACER
~N.56105
1.1251NCH
to
1.063
INCH
r ,.,.rf;,
=!'
I
MAINTAIN
THIS
SPRING
TENSION
