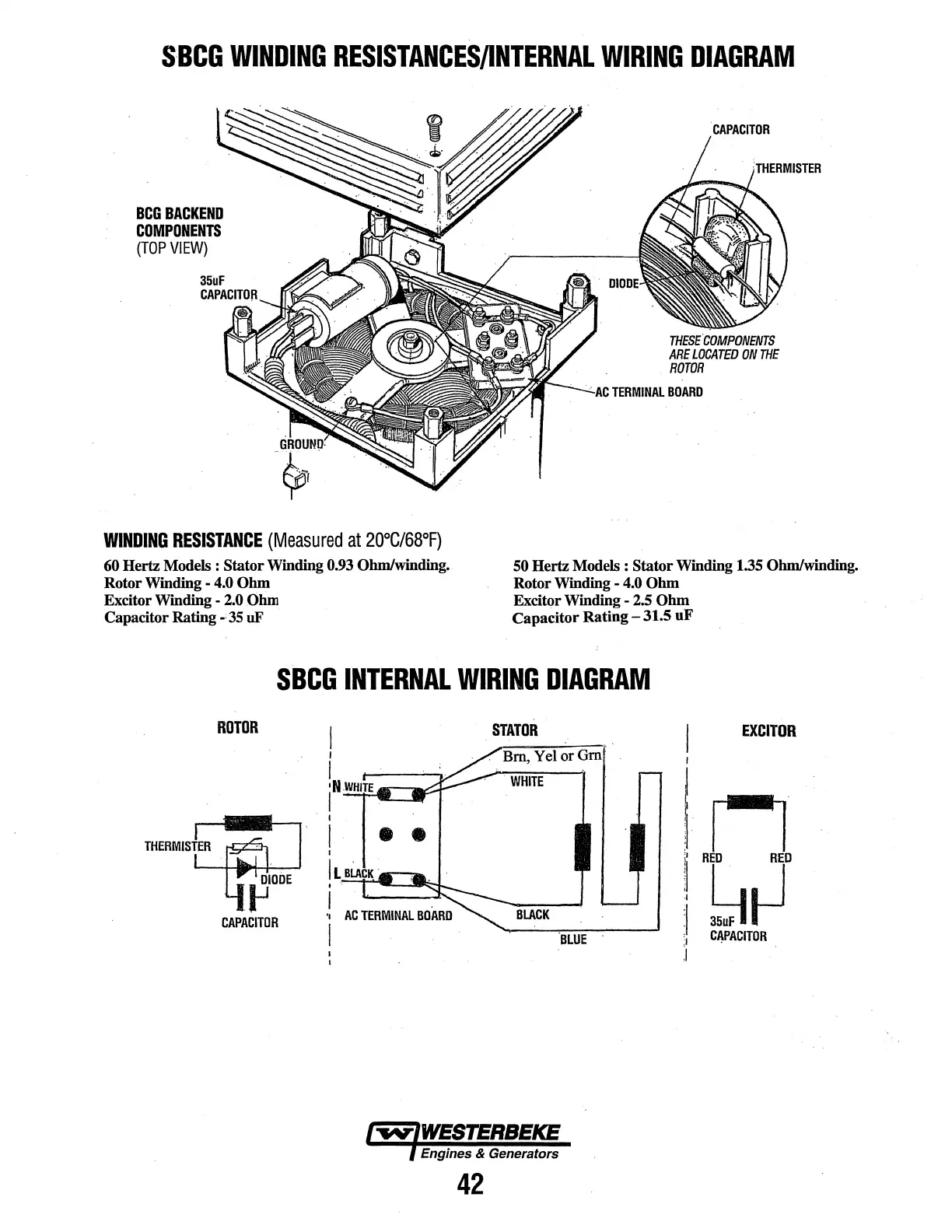

S·BCG WINDING RESISTANCESnNTERNAL WIRING DIAGRAM
BCGBACKEND
COMPONENTS
(TOP VIEW)
WINDING RESISTANCE (Measured at 20°C/68°F)
60 Hertz Models : Stator Wmding 0.93 Ohm/winding..
Rotor Winding - 4.0 Ohm
Excitor Winding - 2.0 Ohm
Capacitor Rating -' 35 uF
TERMINAL BOARD
SO Hertz Models : Stator Winding 1.35 Ohm/winding •.
Rotor Wmding- 4.0 Ohm
Excitor Wmding - 2.5 Ohm
Capacitor Rating- 31.5 uF
SBCG INTERNAL WIRING DIAGRAM
ROTOR
STATOR
, Bm, YelorGrn
I
I
EXCITOR
· . WHITE
• •
lll
BLACK
li RED . RED
l ~~~
) .
42
