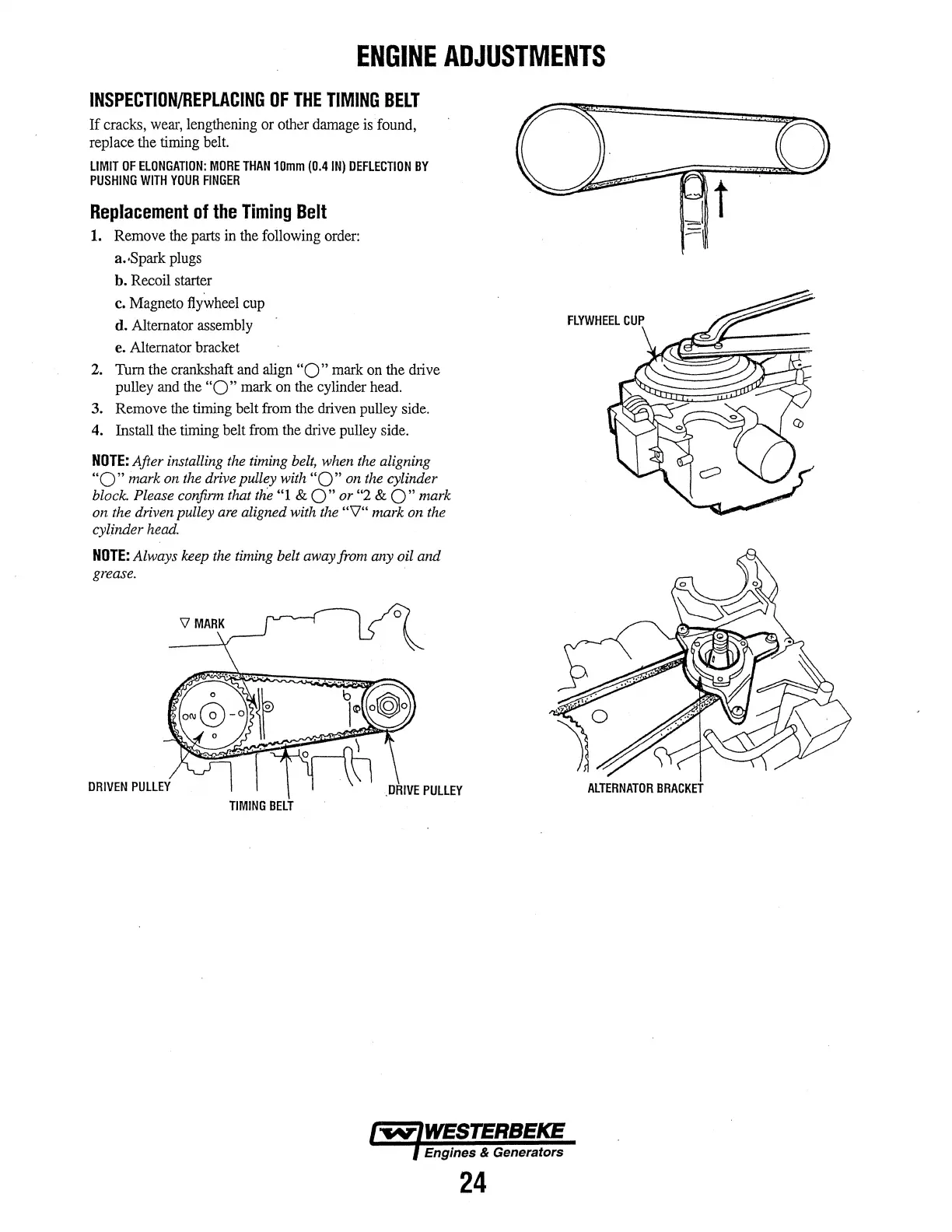

ENGINE
ADJUSTMENTS
INSPECTION/REPLACING
OF
THE
TIMING
BELT
If
cracks,
wear,
lengthening
or other
damage
is·
found,
replace the
timing
belt.
LIMIT
OF
ELONGATION:
MORE
THAN
1Dmm
(0.41N}
DEFLECTION
BY
PUSHING
WITH
YOUR
FINGER
Replacement
of
the
Timing
Belt
1.
Remove
the
parts
in
the
following
order:
a.
·Spark
plugs
b. Recoil starter
c.
Magneto
flywheel
cup
d. Alternator
assembly
e. Alternator bracket
2.
Tum the crankshaft
and
align
"0"
mark
on
the
drive
pulley
and
the
"0"
mark
on
the
cylinder
head.
3. Remove
the
timing
belt
from
the
driven
pulley
side.
4.
Install the
timing
belt
from
the
drive
pulley
side.
NOTE:
After installing the timing
belt,
when
the
aligning
"0"
mark on
the
drive pulley with
"0"
on
the
cylinder
block. Please
confirm
that
th"e
"1
&
0"
or "2 &
0"
mark
on the driven pulley
are
aligned with
the
"\1" mark
on
the
cylinder
head.
NOTE:
Always
keep
the
timing belt away from any oil and
grease.
TIMING
BELT
ALTERNATOR
BRACKET
24
