18.4

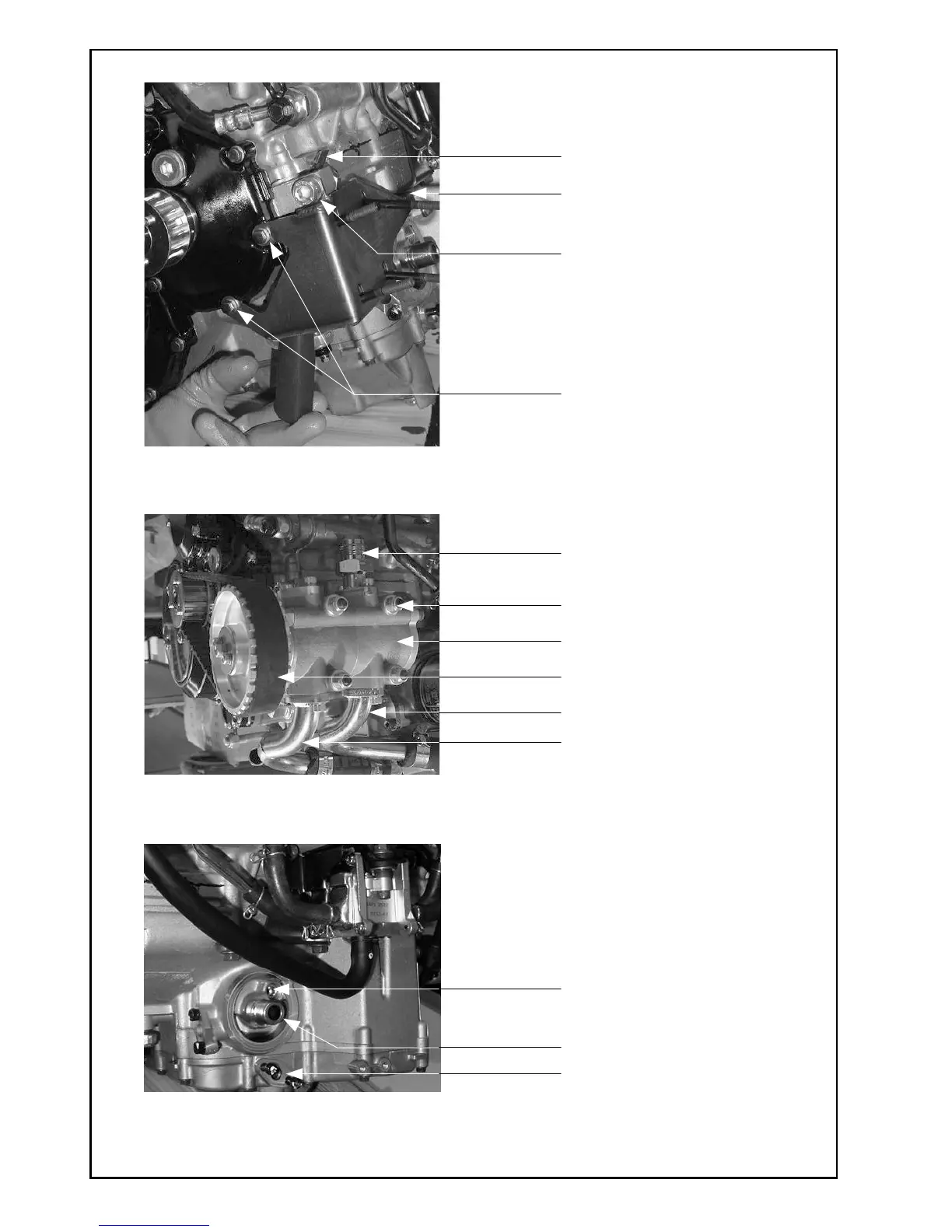

Oil Filter Connection Point
Oil Flow Restrictor Screw
Remove Using 8mm Allen Key
Oil Gallery – Blank Off Using
Item 16 & 17
Dry Sump Pump (Item 24)
Scavenge Pipe (Item 31)
Pump Drive Belt (Item 1)
M6 Washers & Nyloc Nuts
Scavenge Pipe (Item 56)
Oil Return Union (Item 19)
Re-Fit Crank Case Bolt To Secure
ail End Of Bracket
Use 2 Bolts From Starter Clutch
Cover For Securing The Front
End Of The Bracket
Use Cap Head Bolt (Item 13) To
Secure Top Of Bracket.
Position Lever Bar As Shown To
Hold The Nut At The Rear Of The
Bracket. This Will Assist With
The Tightening Of The Bolt.
Lever Bar
