Westfield XTR2 - Gear Lever & Linkage

10.3
SECTION 10 - GEAR LEVER AND LINKAGE
Tools Required: -
- 2 x 13mm Spanners / 2 x 10mm Spanners
Parts Required:-
- 1 x Gear Lever / 1 x Linkage Rod (long) 2 x M6 Male Rod Ends 2 x M6 plain nuts
- 1 x M8 x 50 Long Bolt 2 x M8 Flat Washers 1 x M8 Nyloc Nut 1 x M6 x 25 Hex Bolt
- 1 x M6 Nyloc 1 x 42mm Long Inner Bush

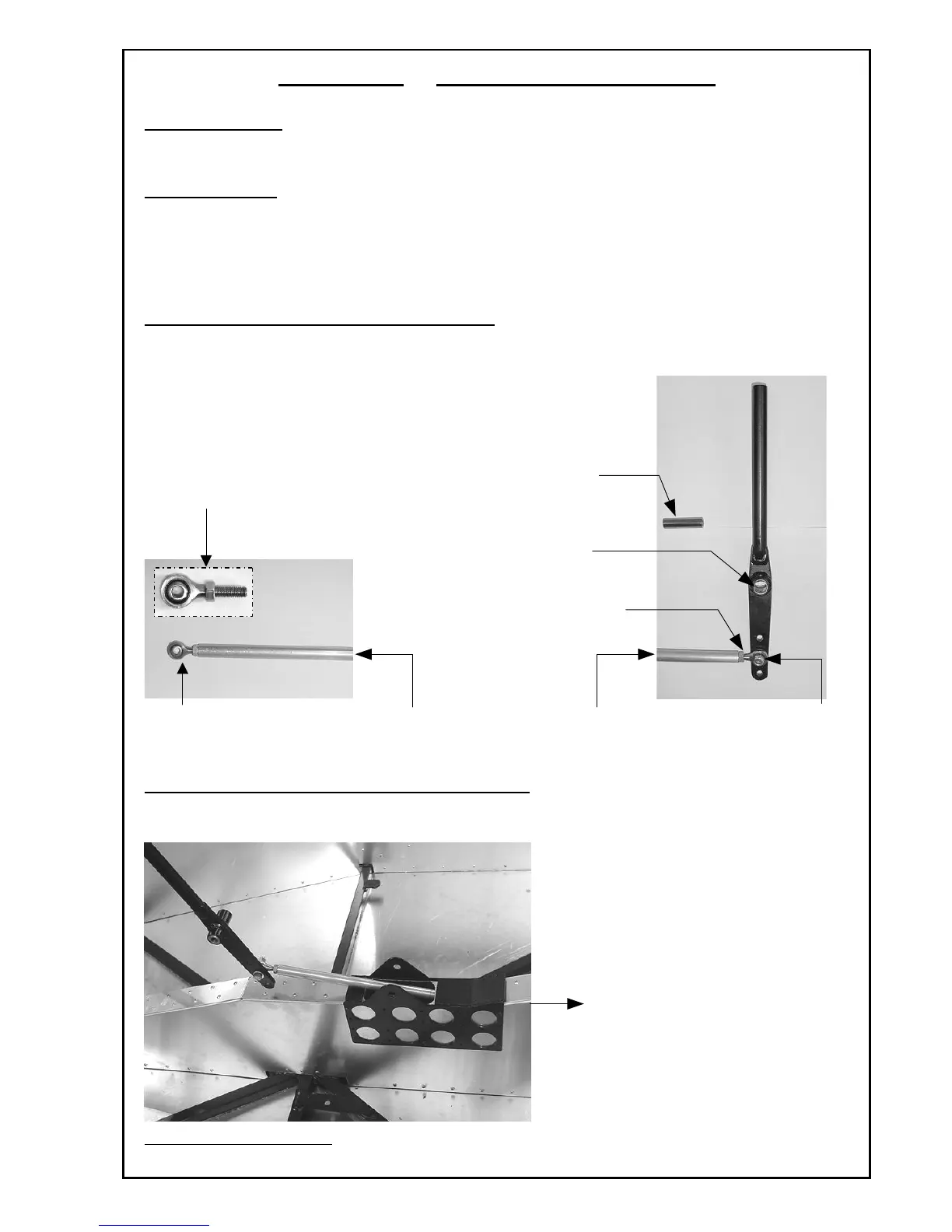

Step 1: Assemble Gear Change Rod & Leve
r
- Assemble the Two M6 Rod Ends (with the Plain Nuts) into the
end of the Long Aluminium Gearchange Rod & fix one end to
the Centre Position of the Gear Lever with a M6 x 25 Hex Bolt
and Nyloc Nut.
- Place the Inner Bush into the Pre-Fitted DU Bushes in the Gear
Lever
Carefully Slide the Rod down through the Tunnel towards the Rear of the Car until the Lever is in
its Operating Position.
View From Passenger Side
Step 1: Installing The Gear Change Rod & Leve
r
M6 Rod End
Nut
With Plain
Rod End Fitted Long Aluminium Gear Change Rod
M6 Bolt &
Nyloc Nut
M6 Rod End
With Plain Nut
DU Bushes
Pre-Fitted
Inner Bush
Rear Of
Car
