9.3
SECTION 09 - HANDBRAKE LEVER & CABLE
Tools Required:-
- Electric Drill / 5.5mm Dia Drill Bit / 25mm Dia. Drill / 1 x 13mm Spanner / 2 x 8mm Spanners /
Long Nose Pliers
Parts Required:-
- 1 x Handbrake Lever / 1 x Handbrake Rod / 2 x Spacers / 1 x Handbrake Cable & Compensator
2 x Handbrake Cable Mounting Plates
- 2 x M8 Clevis Pins + Split Pins
- 5 x M8 Washers
- 4 x M5 Button Head Screws x 10mm Long + Nyloc Nuts + Large Diameter Washers

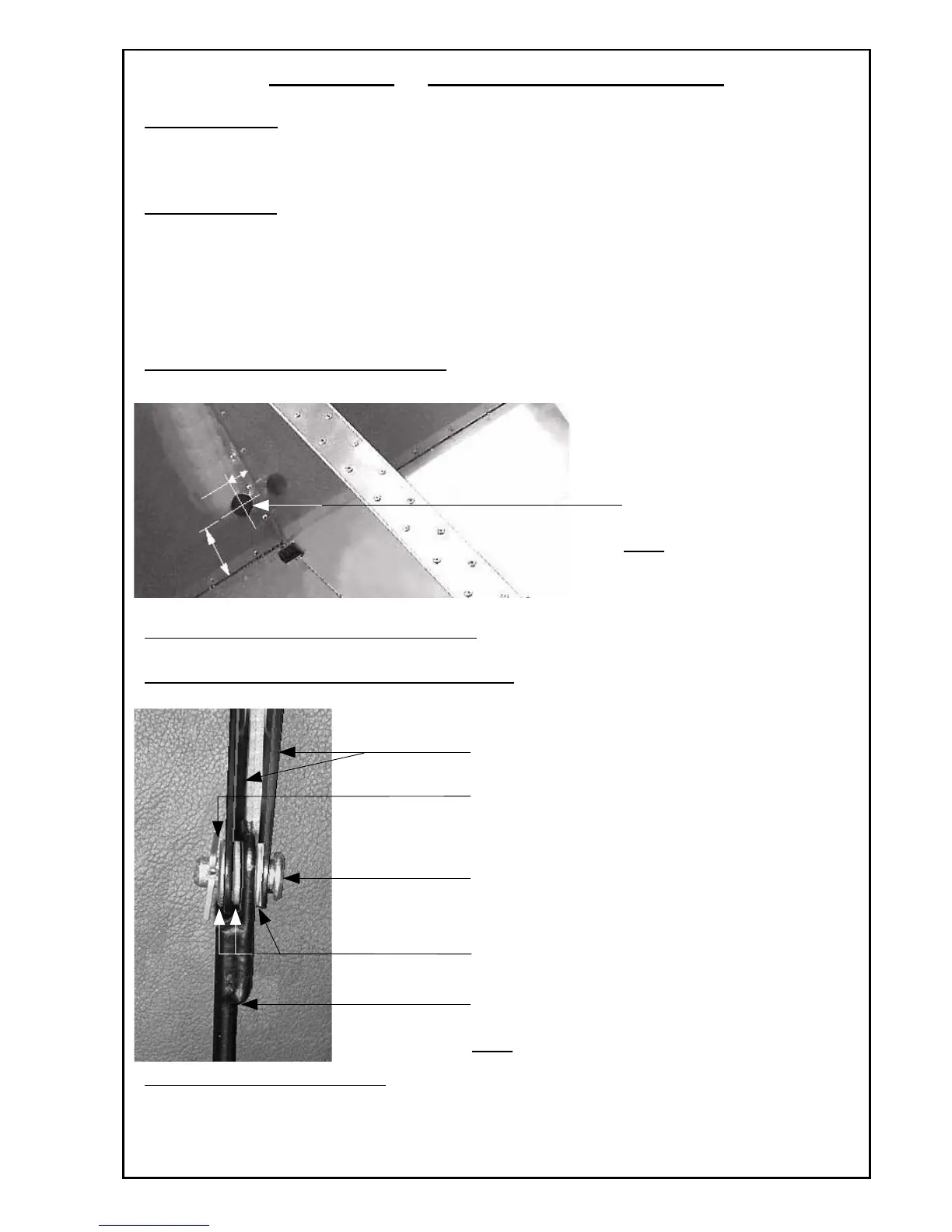

Step 1: Drill Through Seat Back Panel
Drill 25mm Diameter Hole
Through Seat Back Panel
NOTE
Be Careful Not To Hit Fuel
Tank At Rear Of Panel.
View Of Drivers Side Seat Back Panel & Tunnel
Step 2: Assemble The Handbrake Lever & Rod
Handbrake Lever Side Plates
Handbrake Rod
Split Pin
M8 Washers (3 Off)
Clevis Pin
View From Underside of Assembly
NOTE
The Arrangement Of The 3 Washers Needs To Be
Decided To Ensure That The Handbrake Switch
ctivation Bracket Clears The Centre Tunnel.
See Next Page For Bracket Location & Orientation
To Next Page
