2.3
SECTION 02 - BRAKE PIPES
- ALWAYS USE NEW BRAKE PIPES.
- TAKE CARE when FORMING the brake pipes to make sure that you achieve a smooth uniform
bend using a pipe bending tool if possible.
- Westfield recommends that you PRACTICE bending on a scrap or spare brake pipe before
attempting to bend any of the brake pipes supplied.
- DO NOT USE metal clips to support the brake pipes or allow the brake pipes to make contact
with other metal parts or foul any nuts, bolts or moving parts.
- To comply with SVA Regulations, all pipes MUST be secured with clips spaced at a Maximum
Distance of 300mm apart.
Tools Required:-
- Electric Drill / 3.5 (or 9/64) Dia Drill Bit / Pop Rivet Gun / Pipe Bending Tool / 2 x 10mm
Spanners / 11mm Spanner / 13mm Spanner / 17mm Spanner
Parts Required:-
- 1 x Brake Pipe Kit (See Page 5 For List Of Pipes Supplied)
- 2 x Brake Master Cylinders
- “P” Clips + Pop Rivets to Suit
- 3 x Three Way Brake Pipe Connector ( “T” Piece )
- 1 x Brake Light Switch and Copper Washer

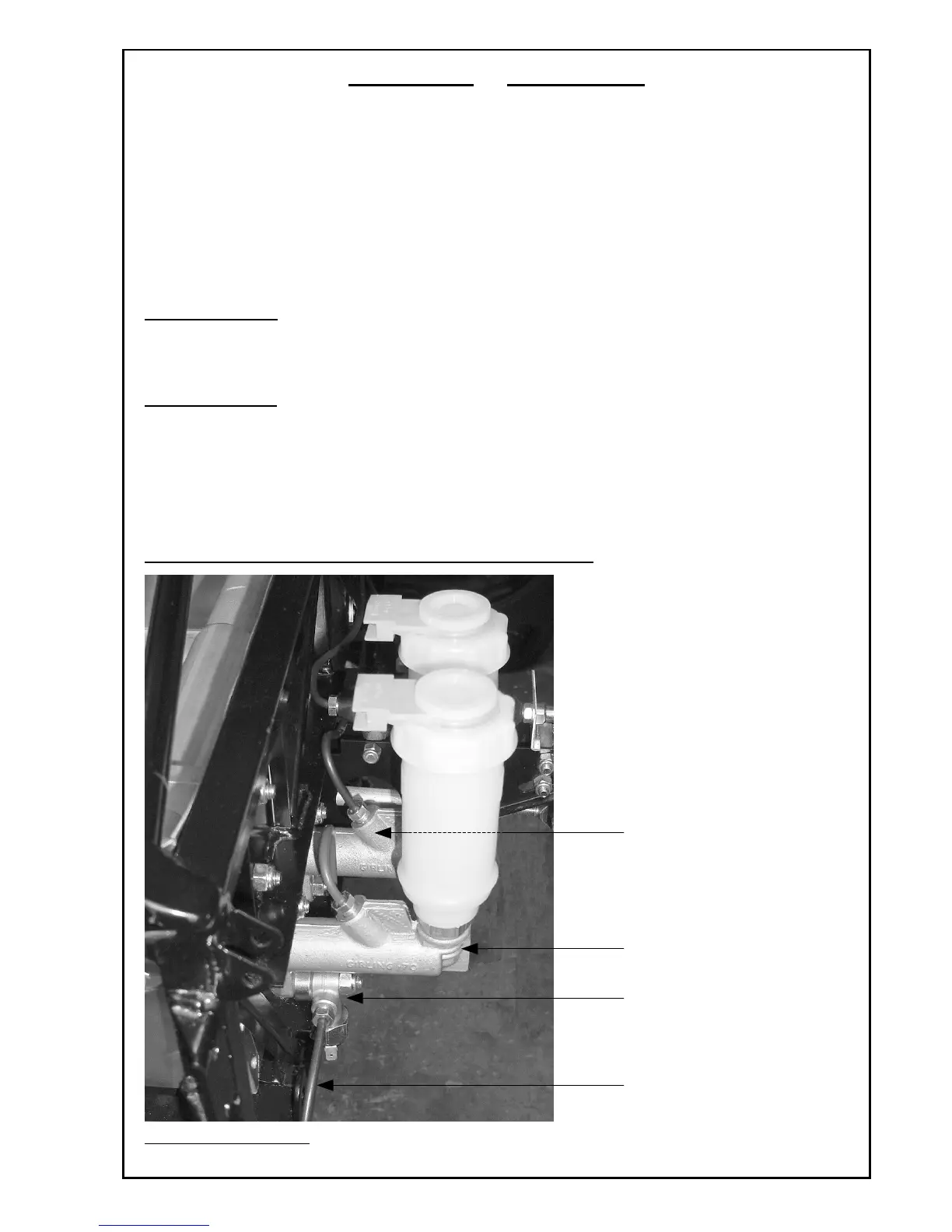

Step 1: Fit Brake Master Cylinders & Brake Light Switch
View From Drivers Side
Rear Brake Cylinder
Front Brake Cylinder
Brake Light Switch
Rear Brake Line
