Westfield XTR2 - Bodywork

20.3
SECTION 20 - REVERSE GEAR ASSEMBLY
Tools Required:-
- 4mm Allen Key / 3mm Allen Key / 2 x mm Spanner / 1 x mm Spanner / 1 x mm Spanner
Parts Required:-
- 1 x Reverse Gear Lever, Inner Bush & Knob / 1 x Reverse Gear Cable & Rose Joints /
1 x Reverse Gear Motor Assembly
- 3 x M8 Bolts x 25mm Long + 3 x Washers + 3 x Nyloc Nut
- All Fixings For Mounting This Assembly Should Be Supplied with The Assembly

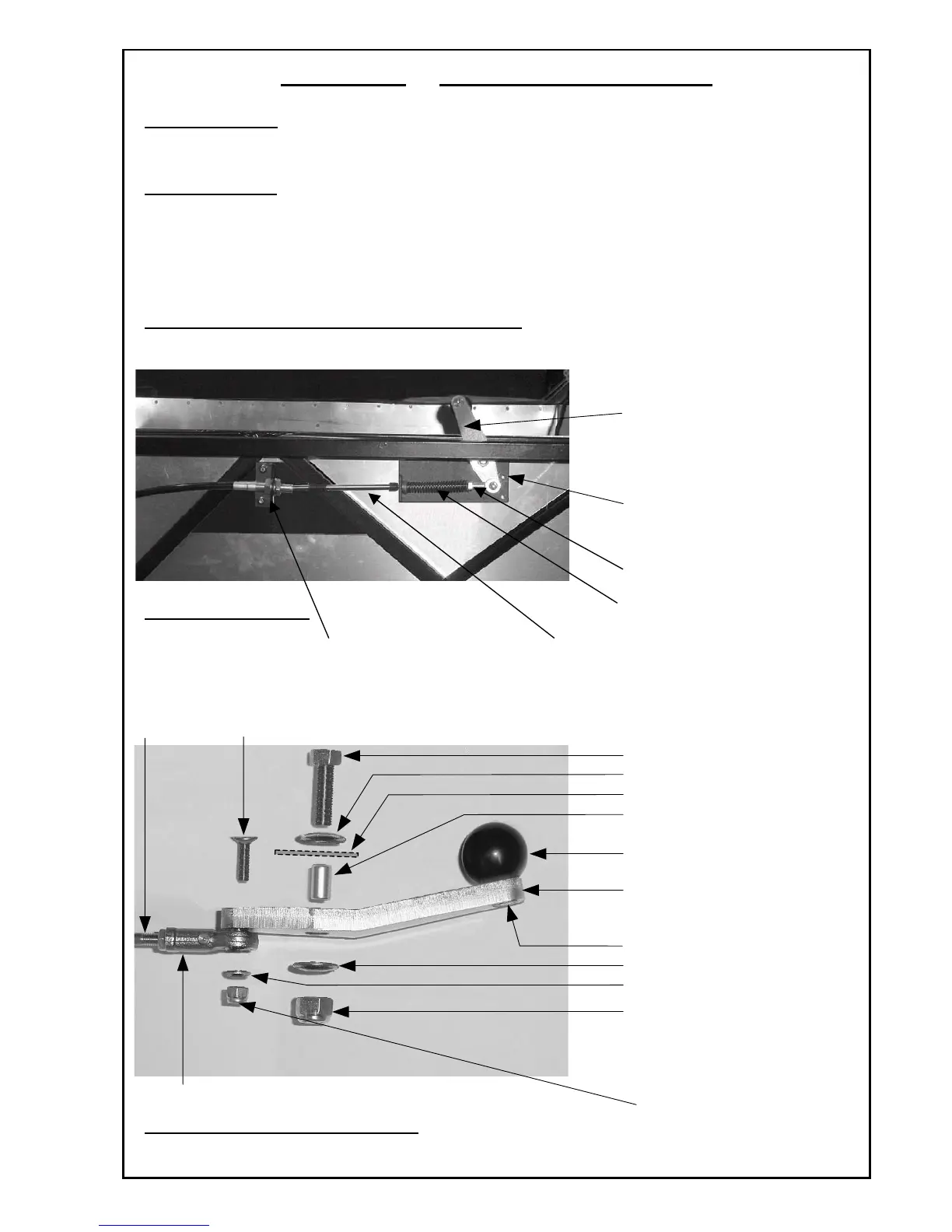

Step 1: Install The Reverse Gear Lever & Cable
View From Drivers Side
Gear Lever / Cable Exploded Assembly
Lever Mounting Bracket
(Welded To Chassis)
Rose Joint
Cable Mounting Bracket (Welded to Chassis)
Pivot Bolt
–
M8 x 25mm Long
M8 Washer
Bracket Is In This Location
Lever Inner Bush
Gear Knob
M6 Countersunk Head
Screw x 16mm Long
Gear Lever
M8 Nyloc Nut
M8 Washer
M5 Countersunk Head
Screw x 25mm Long
Reverse
Gear Cable
Rose Joint
M5 Washer
Return S
p
rin
g
(
Lever
)
Reverse Gear Cable
M5 Nyloc Nut
Reverse Gear Lever
Note: Knob To Be
Fitted After Bodywork
