20.4

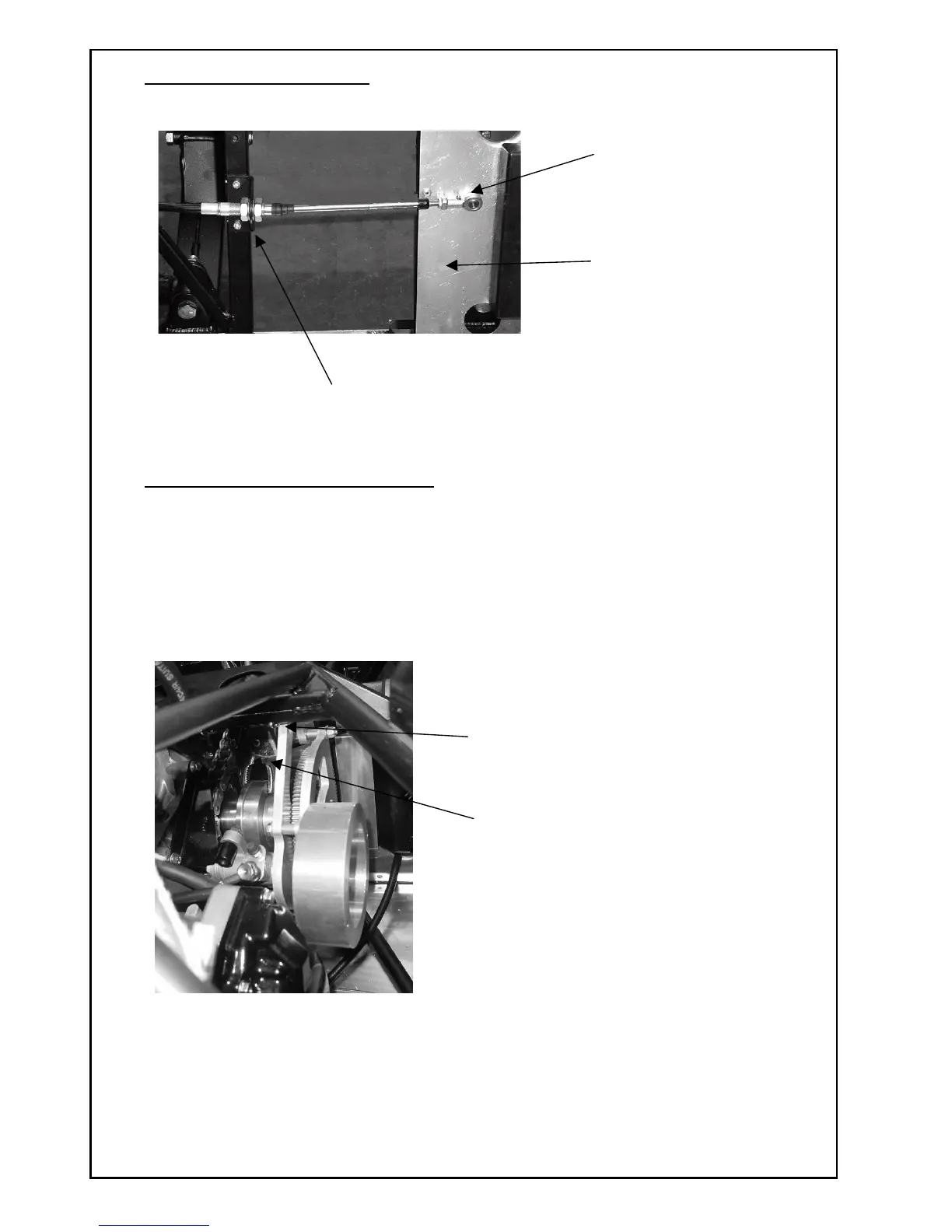

Step 2: Engine End Of Cable
Bulkhead Mounting (Welded To Chassis)
ECU Mounting Plate
Rod End
Step 3: Mounting Reverse Assembly
This Step of the Assembly needs quite a lot of care taken to make sure the mechanism is
aligned with the engine correctly. Before you start it is advisable that you remove the Motor
from the mechanism to make it easier to handle.
Place the mounting plate next to the engine
drive flange with the plate to the left of the
angle bracket on the to engine frame and
behind, (to the right) of the angle bracket
on the bottom engine frame. Now operate
the small actuating lever (which operates
the drive dog) and jam the dog away from
the mounting plate as far as possible with a
screwdriver. Then line up the drive dog and
engine flange so that the outside diameters
are together and clamp in position with a
pair of grips.
