20.5

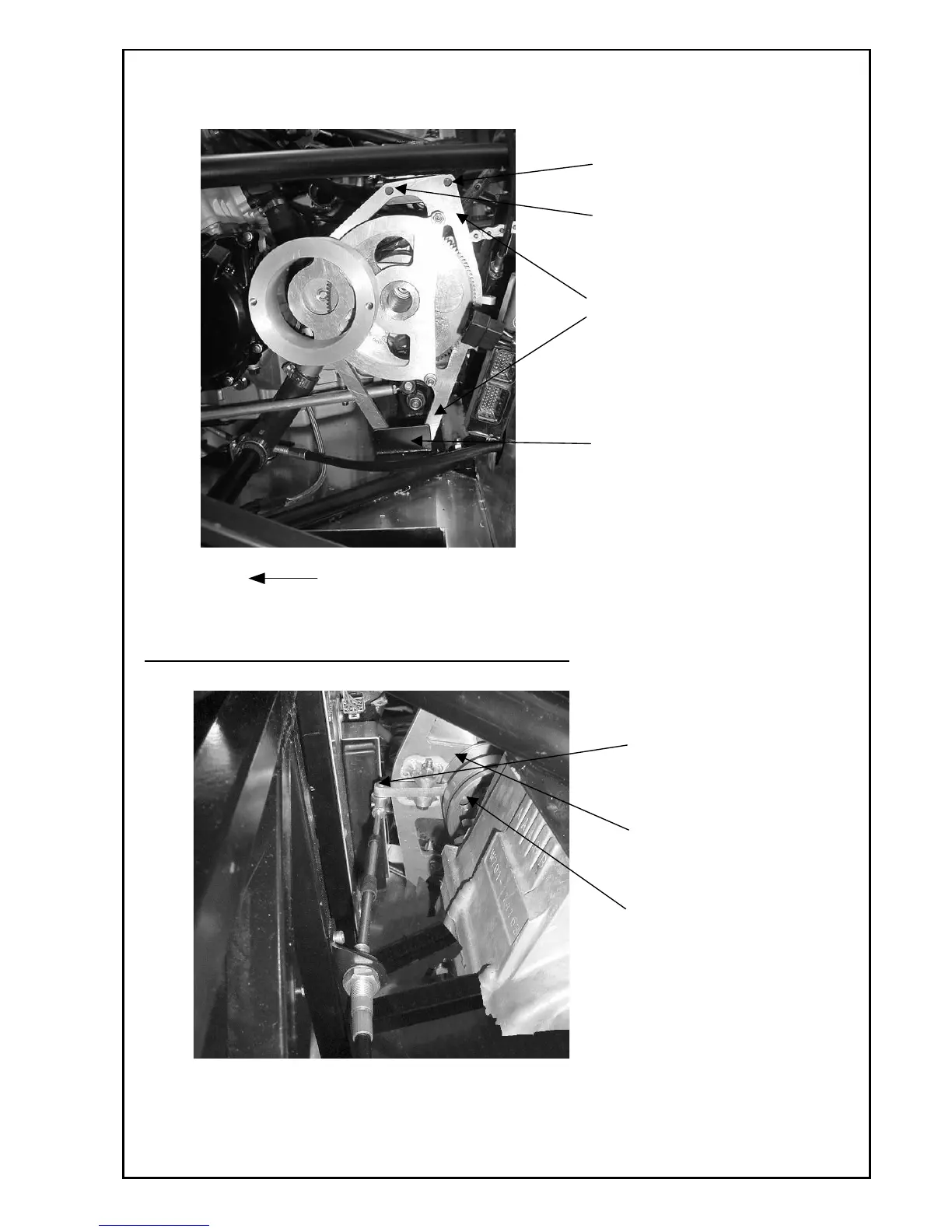

NOTE: With The Drive Flanges Still In The Clamped Position
Top Mounting Point, When
Positioned Correctly Drill Two
Holes Through Angle To Take M8
Bottom Mounting Point, When
Positioned Correctly Drill One Hole
Through Angle To Take M8 x
If Required Place Washers As
Spacers Between Mounting Plates
To Keep The Plates And Flanges
Parallel
FRONT OF CAR
Step 3: Fit Cable At Engine End And Check Operation
ssemble Rod End To Lever
With M6 x 35 Bolt Supplied.
o check Operation Operate
the lever in the cockpit
backward and forwards,
The drive dog should freely
engage into the slots in the
flange and then return right
back to the large mounting
plate face.
To Next Page
