3.3
SECTION 03 - CLUTCH PIPE
- ALWAYS USE NEW CLUTCH PIPE
- TAKE CARE when FORMING the clutch pipe to make sure that you achieve a smooth uniform
bend using a pipe bending tool if possible.
- Westfield recommends that you PRACTICE bending on a scrap or spare pipe before attempting
to bend the clutch pipe supplied.
- DO NOT USE metal clips to support the clutch pipe or allow the clutch pipe to make contact
with other metal parts or foul any nuts, bolts or moving parts.
Tools Required:-
- Electric Drill / 3.5 (or 9/64) Dia Drill Bit / Pop Rivet Gun / Pipe Bending Tool / 2 x 10mm
Spanners / 11mm Spanner / 13mm Spanner
Parts Required:-
- 1 x Clutch Pipe (See Page 5 Of Section 2 For Details Of Pipe Supplied)
- 1 x Clutch Master Cylinder Kit Complete

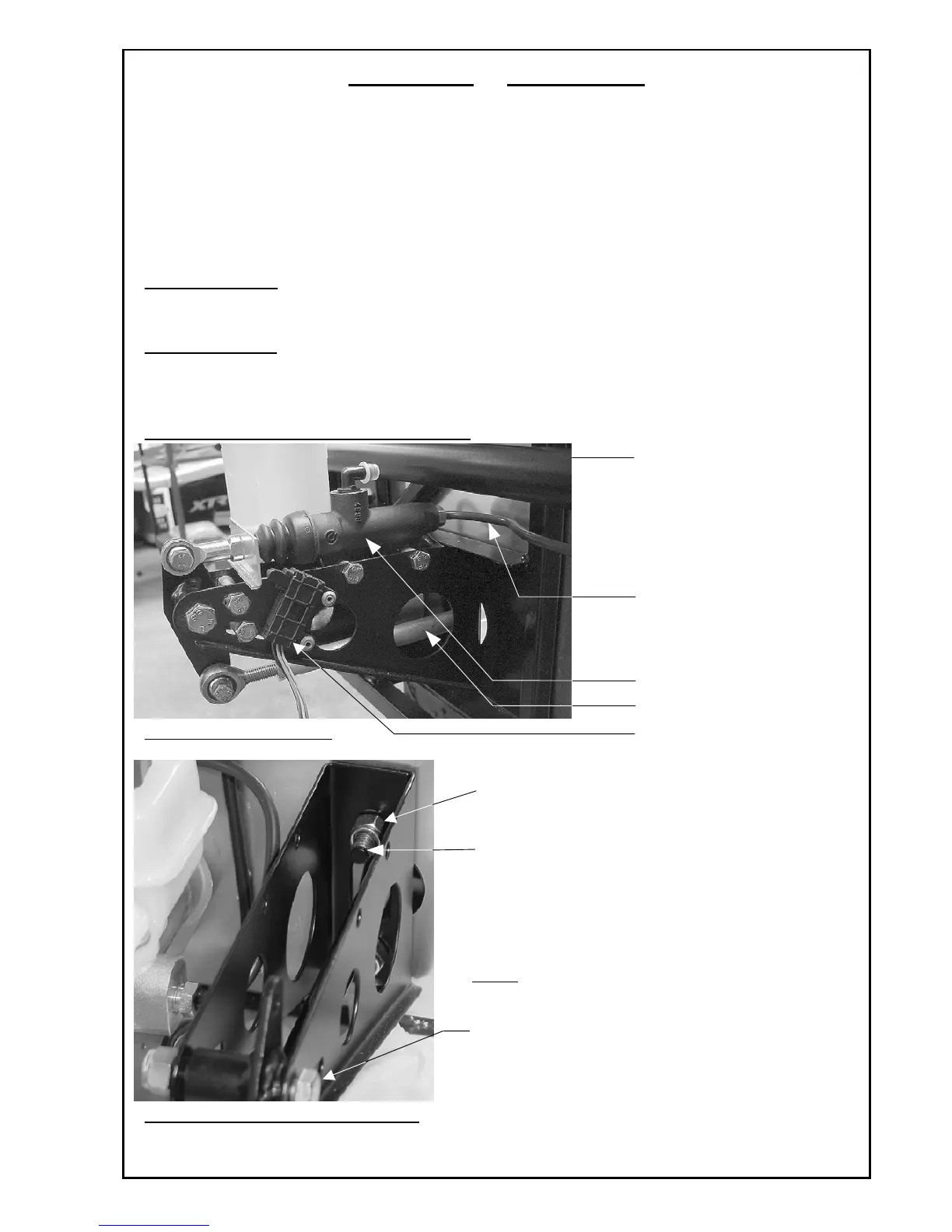

Step 1: Clutch Master Cylinder Assembly
Clutch Switch Striker Plate
Clutch Line
Clutch Master Cylinder
View From Passenger Side
Fitting The Cylinder Mounting Brackets
Clutch Switch (Optional)
Pedal Push Rod
M8 Nyloc Nuts
M8 Bolts
NOTE:
The two brackets are separate from each
other and will have to be overlapped.
PLEASE MAKE SURE THAT HOLES FOR
QUADRANT PIVOT LINE UP
