11.3
SECTION 11 - FRONT SUSPENSION / WISHBONES AND UPRIGHTS
Tools Required:-
- 1 x 5/8” AF Spanner / 1 x 11/16” AF Spanner / 2 x 17mm Spanner / 1 x 13mm Spanner / 1 x
27mm Spanner / 1 x 6mm Allen Key
Parts Required:-
- 2 x Lower Front Wishbones / 2 x Top Front Wishbones / 2 x Lower Front Ball Joints
- 2 x Upper Front Ball Joints / 6 x 7/16” UNF x 2½” Long Bolts / 2 x 7/16” UNF x 3¾” Long Bolts
- 8 x 7/16” UNF Nyloc Nuts / 2 x M18 Thin Lock Nut / 2 x M10 x 25 Long Bolts / 2 x M10 Nyloc Nuts
- 4 x 7/16” Large Repair Washers / 12 x 7/16” Plain Washers / 2 x Assembled Front Upright Corners.
NOTE: All Wishbones Will Be Pre-assembled With Nylon Bushes.

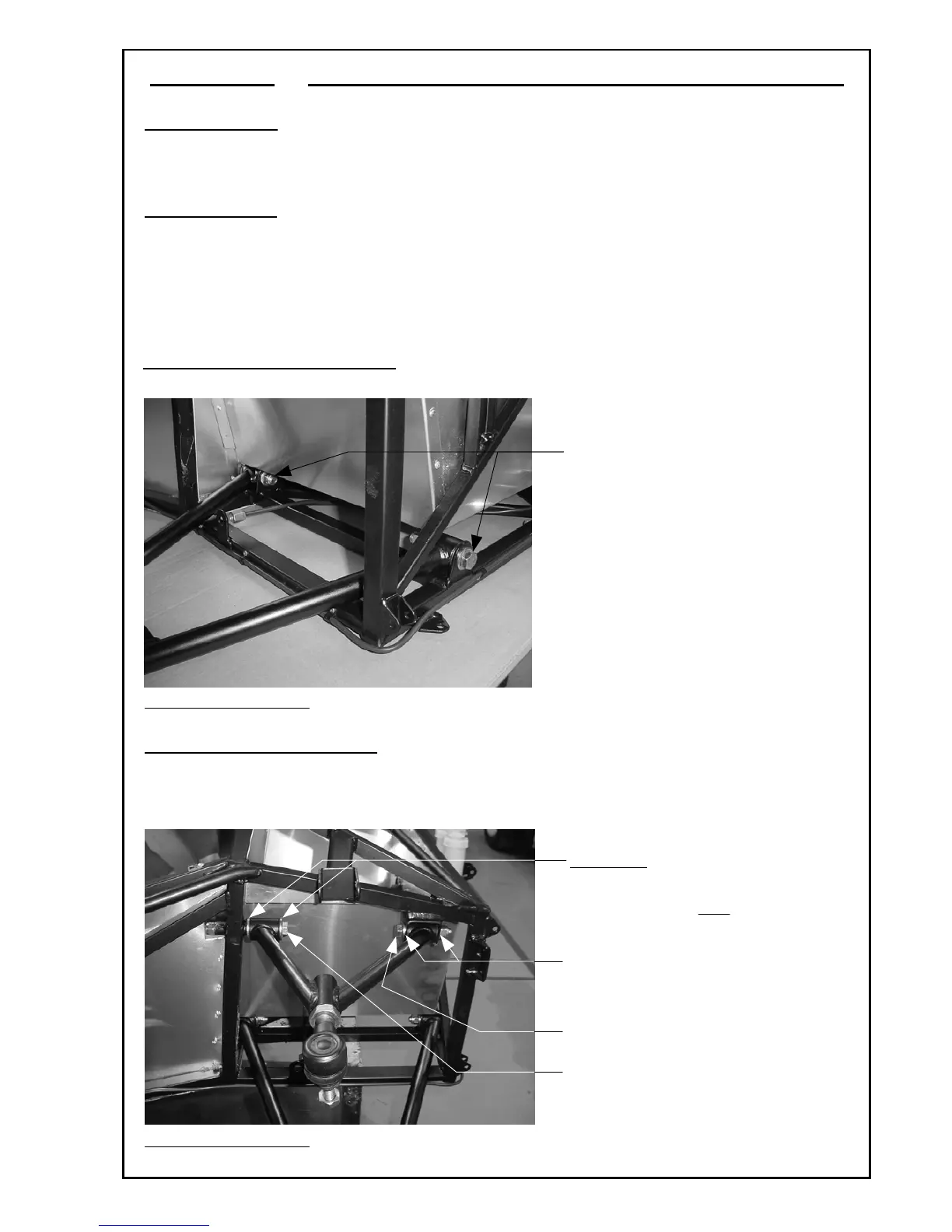

Step 1: Lower Front Wishbones
Bolt Lower Front Wishbone into chassis mountings as shown. Repeat both sides of Car.
View From Drivers Side
2 Bolts 7/16” UNF x 2½” Long with
Washers and Nyloc Nuts
Step 2: Top Front Wishbones
Bolt the Top Front Wishbone into the chassis mountings as shown. Ensure the Wishbone is
installed with the Shortest Leg towards the rear of the car.
NOTE: The Position of the Two Repair Washers on this Wishbone. Repeat Both Sides of Car.
View From Drivers Side
Important:
Fit 7/16” Repair Washers both
sides of the Nylon Suspension
Bush on this Bolt Only.
7
