Westfield XTR2 - Fuel System Installation

16.3
SECTION 16 - FUEL SYSTEM
Tools Required:-
- Electric Drill / 3.2mm Drill Bit / Pop Rivet Tool / 6.5mm Drill Bit / 4mm Allen Key / 7mm Socket
/ Flat Blade Screwdriver / 2 x 12mm Spanner
Parts Required:-
- 1 x Swirl Pot / 1 x `Facet’ Fuel Pump & Mounting Kit / 1 x Main Fuel Pump / 1 x Fuel Filter / 1 x
Fuel Pressure Regulator / 1 x Main Fuel Pump Bracket / 1 x Fuel Filter Bracket / 8mm Fuel Hose
/ 10mm Fuel Hose / ½” Fuel Hose / 1 Set Of Jubilee Clips
- 2 x M6 Button Head Screws x 20mm Long / 2 x M6 Bolts x 40mm Long / 4 x M6 Washers / 4 x
M6 Nyloc Nuts / 3.2mm Rivets

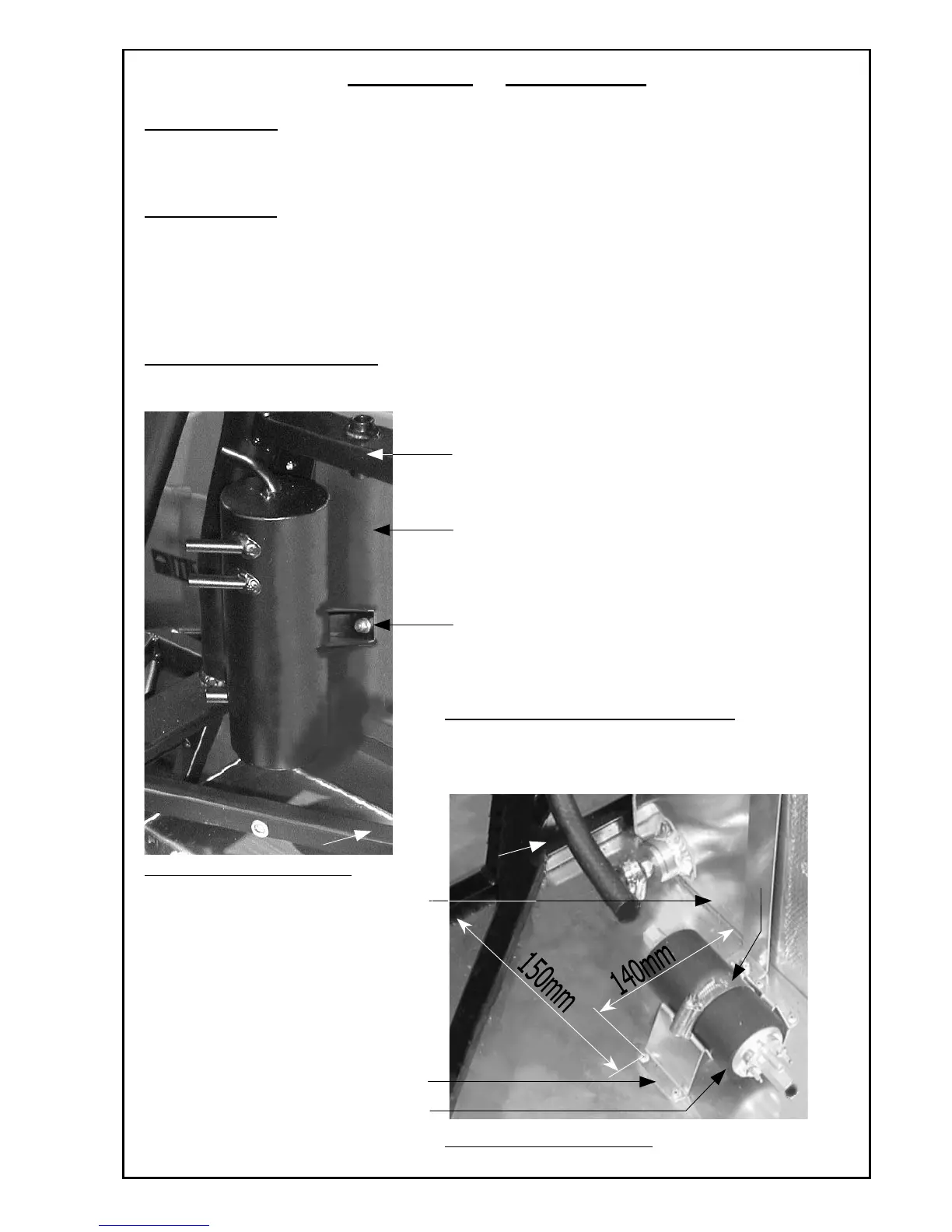

Step 1: Swirl Pot Installation
Place the Swirl Pot approximately in the position shown below, Mark the Fixing Hole Centres and
Drill through the seat back panel with a 6.5mm Drill
Step 2: Main Fuel Pump Installation
Position Bracket As Shown, Mark Hole Centres, Drill
Through Floor Plate Using 3.2mm Drill Bit & Rivet
Bracket To Floor. Secure Pump With Jubilee Clip.
View From Inside Engine Bay
View From Inside Engine Bay
M6 Button Head Screws x 20mm Long
With Washer Under Head & Nyloc Nut
Seat Back Panel
Seat Belt Mounting Rail
Front
Of Car
Jubilee
Clip
Main Fuel Pump
Fuel Pump Bracket
Fuel Tan
k
Front
Of Car
