Westfield XTR2 - Rear Suspension, Wishbones, Uprights & Driveshafts

15.3
SECTION 15 - REAR SUSPENSION / WISHBONES, UPRIGHTS &
DRIVESHAFTS
Tools Required:-
- 1 x 5/8” AF Spanner / 1 x 11/16” AF Spanner / 2 x 17mm Spanner / 1 x 13mm Spanner / 1 x
27mm Spanner / 1 x 6mm Allen Key
Parts Required:-
- 2 x Lower Rear Wishbones / 2 x Top Rear Wishbones / 2 x Assembled Rear Upright Corners
- 2 x Driveshafts / 2 Rear Brake Hoses
- 8 x 7/16” UNF x 23/4” Long Bolts / 2 x 7/16” UNF x 3¾” Long Bolts / 4 x Rod Ends (1/2” UNF x
1/2” Hole) / 14 x 7/16” UNF Nyloc Nuts / 30 x 7/16” Plain Washers / 4 x 7/16” UNF x 3” Long
Bolts / 4 x Reducing Sleeves For Rod Ends / 4 x 7/16” Repair Washers
NOTE: All Wishbones Will Be Pre-assembled With Nylon Bushes.
Bolt Lower Rear Wishbone into Chassis Mountings as shown. Repeat Both Sides of Car.

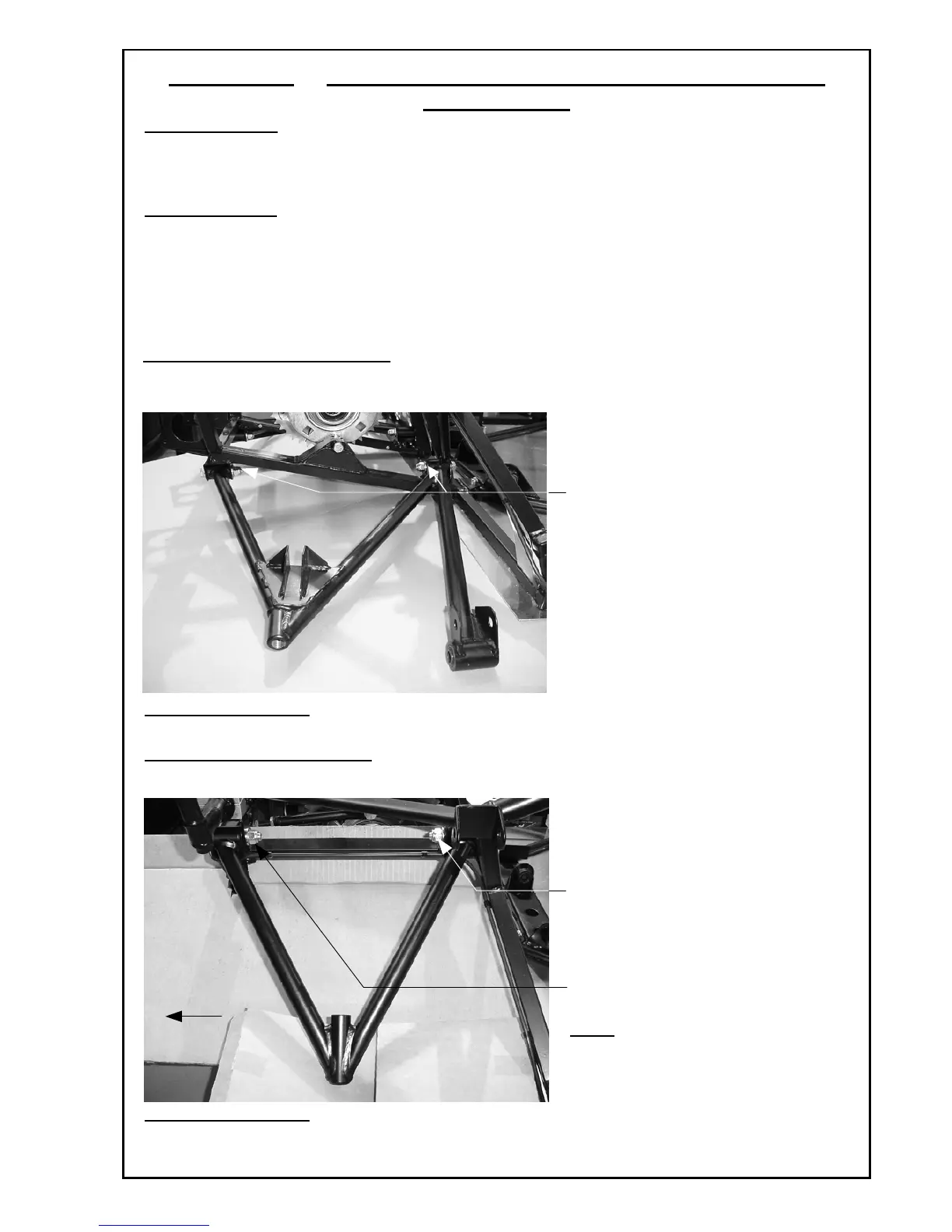

Step 1: Lower Rear Wishbones
2 Bolts 7/16” UNF x 2¾” Long with
Washers Under Head and Nyloc
Nuts
View From Drivers Side
Step 2: Top Rear Wishbones
Bolt the Top Rear Wishbone into the chassis mountings as shown.
View From Drivers Side
Rear Of
Car
7/16” UNF x 2¾” Long with
Washers Under Head and Nyloc Nut
7/16” UNF x 3” Long with Washers
Under Head and Nyloc Nut
NOTE
A
nti-Roll Bar Mounting Clevis &
Block Assembly To Be Fitted Before
Bolt. (See Next Photograph)
