6.3
SECTION 06 - STEERING COMPONENT INSTALLATION
Tools Required:-
- Electric Drill / 8mm Dia Drill Bit / 2 x 13mm Spanners / 1 x 6mm Allen Key
-
NOTE: Instructions to convert from R/H to L/H see page 6.6
Parts Required:-
- 1 x Steering Rack / 1 Set Rack Clamp Blocks / 1 x Upper steering Column / 1 x Centre Steering
Column / 1 x Steering Column Mounting Bracket
- 6 x M8 Bolts x 80mm Long + Washers + Nyloc Nuts
- 2 x M8 Cap Head Bolts x 35mm Long + Nyloc Nuts

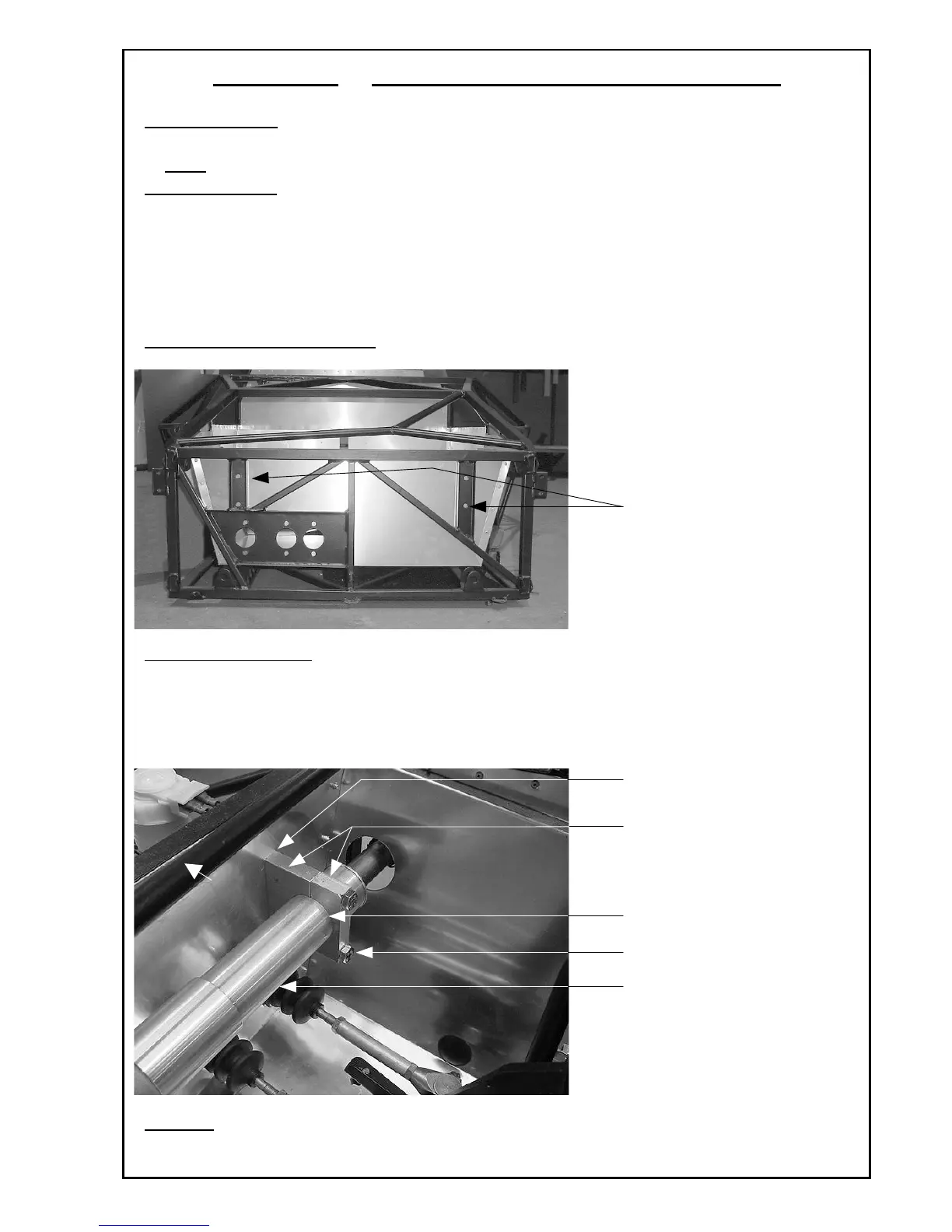

Step 1: Install Steering Rack
View From Front Of Car
(Bare Chassis Shown For Clarity)
Pedal Box
Steering Rack
Mounting Holes
Front
Of Car
Steering Rack
Rack Clamp Blocks
M8 Bolts x 80mm Long
Drill Through The Pedal
Front Using The Steering
Rack Mounting Holes In
Chassis As A Guide
Box
The
Butt The Rack Shoulder Up
To Next Page
