Westfield XTR2 - Page 54

6.4
Step 1: Cont’d,

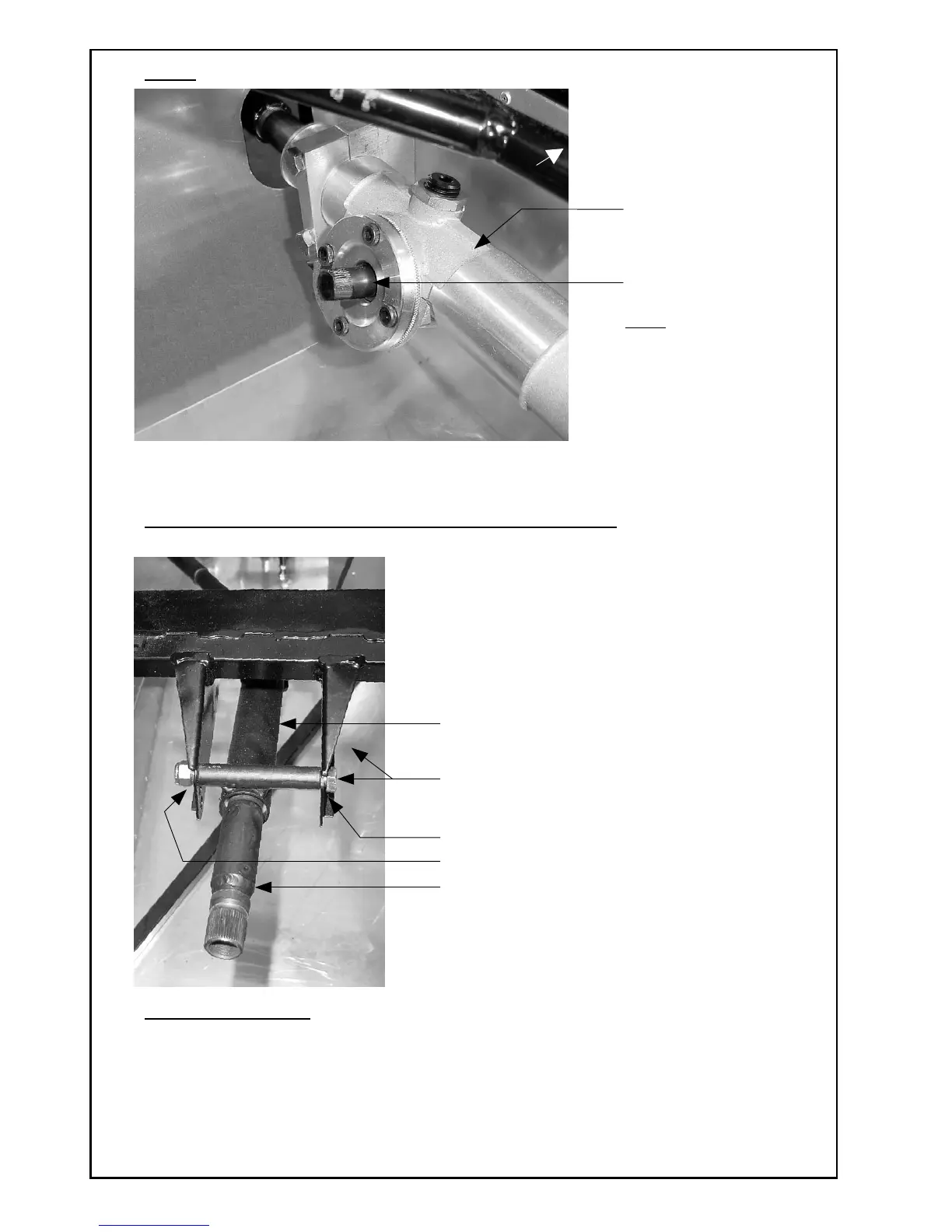

Step 2: Install Upper Steering Column & Mounting Bracket
View From Drivers Seat
Upper Steering Column
Column Mounting Bracket
M8 Bolts x 80mm Long
(At Front & Rear of Bracket)
Install Rack With Pinion
Shaft Facing Up Towards
The Passenger Seat
Front
Of Car
Steering Rack
A
pproximately As Shown.
NOTE
Do NOT Fully Tighten The
Clamp Bolts At This Stage.
Washer & Nyloc Nut
Washer
