Westfield XTR2 - Pedals & Brackets

5.3
SECTION 05 - PEDALS & BRACKETS
Tools Required:-
- 2 x 13mm Combination Spanners / 2x 10mm Combination Spanners / Long Nosed Pliers /
Electric Drill / 6.5mm Drill Bit / 5mm Drill Bit
Parts Required:-
- Throttle Pedal / Brake Pedal / Clutch Pedal (all Pedals are fitted with `DU’ bearing bushes
as standard) / 3 x Pedal Pivot Bush / 5 x Mounting Brackets / 1 x Clevis / 1 x Clevis Pin / 1
x Split Pin / 2 x Extension Rods (Brake Pedal) / 1 x Extension Rod (Clutch Pedal) / 2 x Pedal
Rubbers / 1 x Throttle Cable / 1 x Throttle Cable Bracket / 1 x Non-Adjustable Brake Bias
Bar / 1 x Adjustable Brake Bias Bar / 1 x Pedal Mounting Stud / 1 x Spacer Zinc Plated
55mm Long / 1 x Spacer Zinc Plated 25mm Long.
- 10 x M6 Button Head Screws x 16mm Long + Washers + Nyloc Nuts
- 2 x M6 Hexagon Head Setscrew x 20mm Long + Plain Lock Nut
- 3 x 5/16” UNF Bolts X 1-1/2” Long + Lock Nuts
- 2 x M5 Button Head Screws x 16mm Long + Washers + Nyloc Nuts

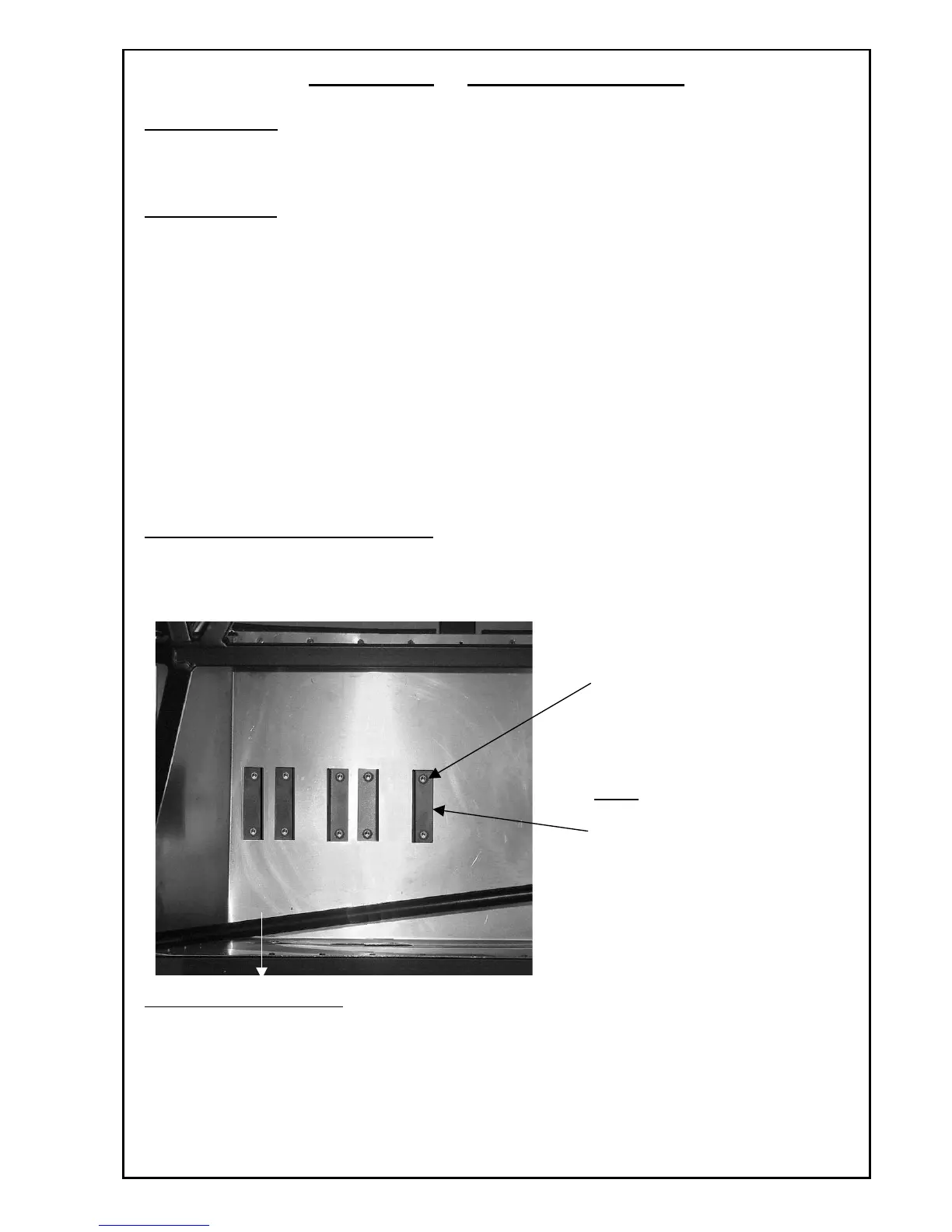

Step 1: Fit Pedal Mounting Brackets
View From Above Pedal Box
iv) Secure The Brackets To The
Floor Using The Screws Supplied.
(The Screws MUST Be Inserted
From the Top Of The Assembly.
Pedal Mounting Brackets
NOTE
i) Decide On The Approximate
Position Of The Pedals.
ii) Underneath The Pedal Box Floor
T
here Is A Mounting Channel
With 20 Pre-Drilled Holes. Selec
t
T
he Holes That Best Match The
Required Pedal Bracket Position.
iii) Drill Through The Pedal Box
Floor From Underneath Using
The Selected Holes As A Guide.
Fr
o
ont
f Car
Front of
Car
M6 Button Head Screws x 16
Long
