Westfield XTR2 - Dry Sump Kit Fitting Instructions

18.3

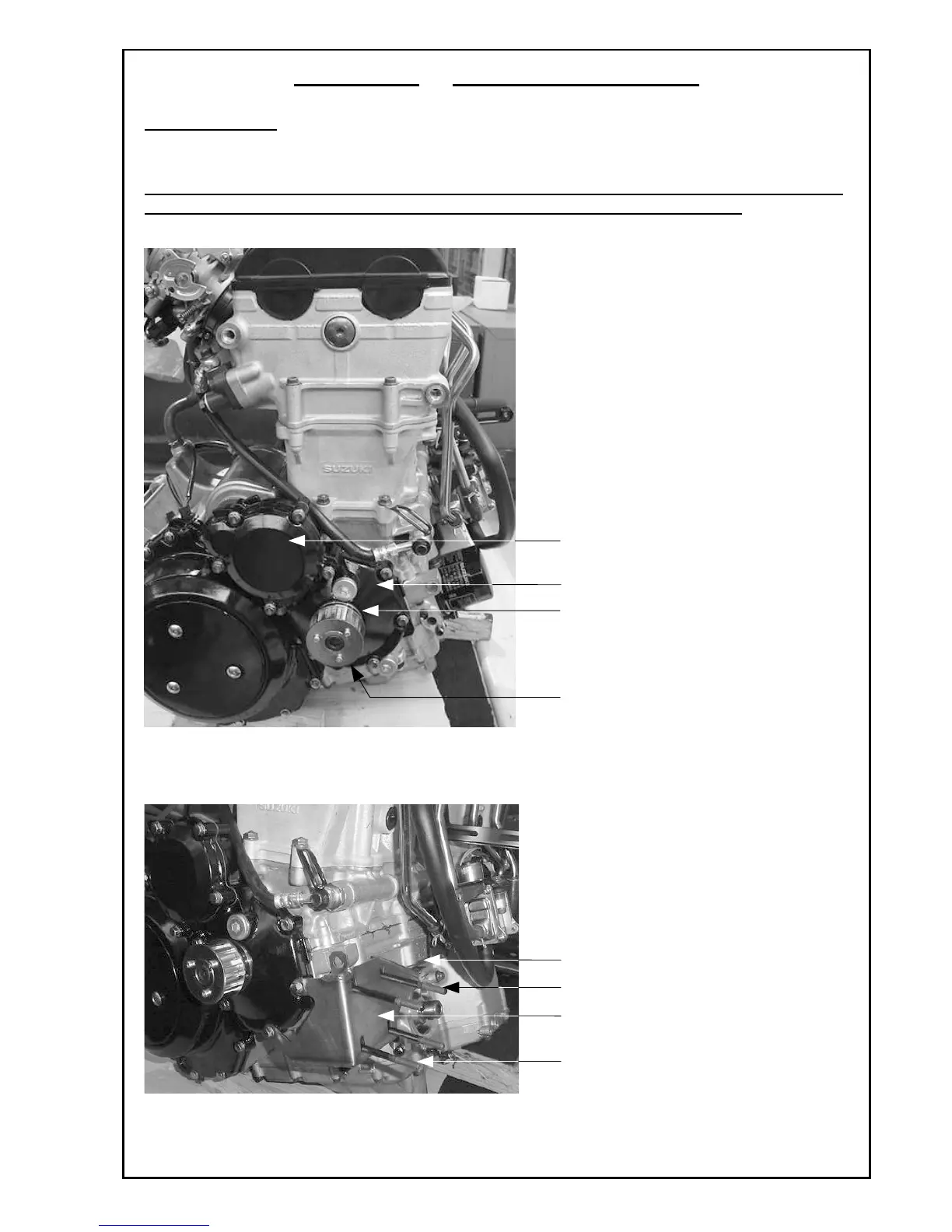

SECTION 18 - DRY SUMP KIT FITTING
Parts Required:-
- 1 x Engine / 1 x Dry Sump Kit / 1 Set Of Dry Sump Installation Instructions
THE PHOTOS SHOWN IN THIS SECTION ARE TO BE READ IN CONJUNCTION WITH THE
INSTALLATION INSTRUCTION PACK PROVIDED WITH THE DRY SUMP KIT
BEFORE Fitting The Pump Bracket To The Engine.
1.Fit The Mounting Straps Into The Bracket Holes 2.Remove One Crank Case Bolt (As Shown Below)
Item 5 (Drive Pulley) Assembled And
Secured With M10 Socket Cap Screw
Starter Motor Drive Cover
Starter Clutch Cover
Starter Clutch Cover Plug Location
Replaced With Item 8 (Seal Housing)
&
Item 7 (Seal)
Pump Bracket (Item 14)
Pum
p
Mountin
g
Stra
p
(
Item 39
)
Pump Mounting Strap (Item 39)
NOTE - Remove This Crank Case Bolt
