3.4

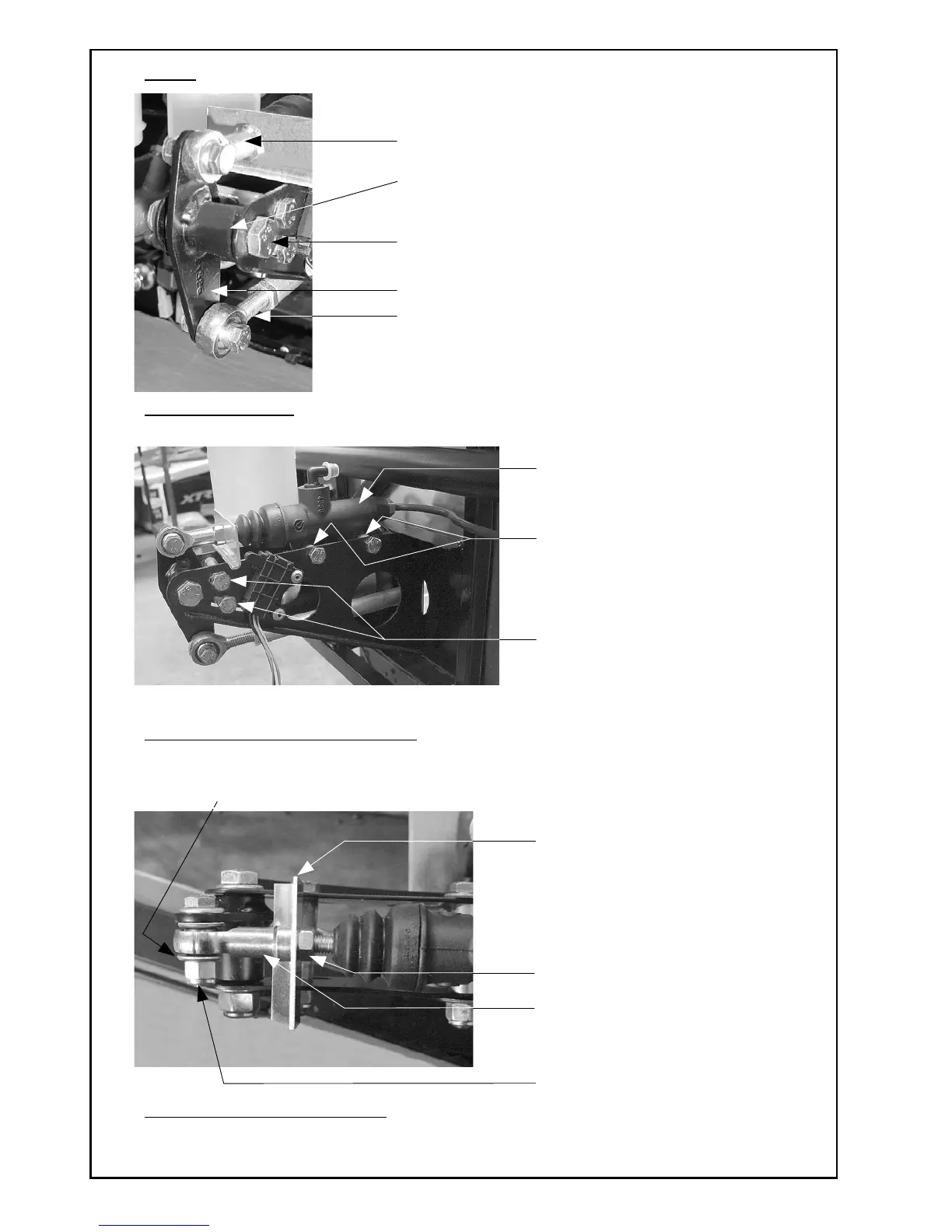

Step 1: Cont’d,
Lubricate Bush With Copper
Slip BEFORE Installation
M8 x 45mm Bolt and Nyloc Nut.
DO NOT OVERTIGHTEN NUT
Ensure Quadrant Moves Freely
Do NOT Fit Pedal Push Rod At This Stage
Do NOT Fit Clutch Push Rod At This Stage
Quadrant Installation
Clutch Cylinder
Fit Spacers Either Side Of Cylinder
& Secure With M6 Bolts x 45 Long
& Nyloc Nuts
Clutch Cylinder Assembly / Installation
Clutch Cylinder Rod End Assembly
Clutch Switch Activation Plate
M6 Washer
M6 Plain Nut
Rod End
Pedal Stop Tubes – 2 Off Each Fixed
With M6 Bolt x 45 Long & Nyloc Nut
M6 Bolt x 25 Long & Nyloc Nut
To Next Page
