Westfield XTR2 - Page 26

3.5

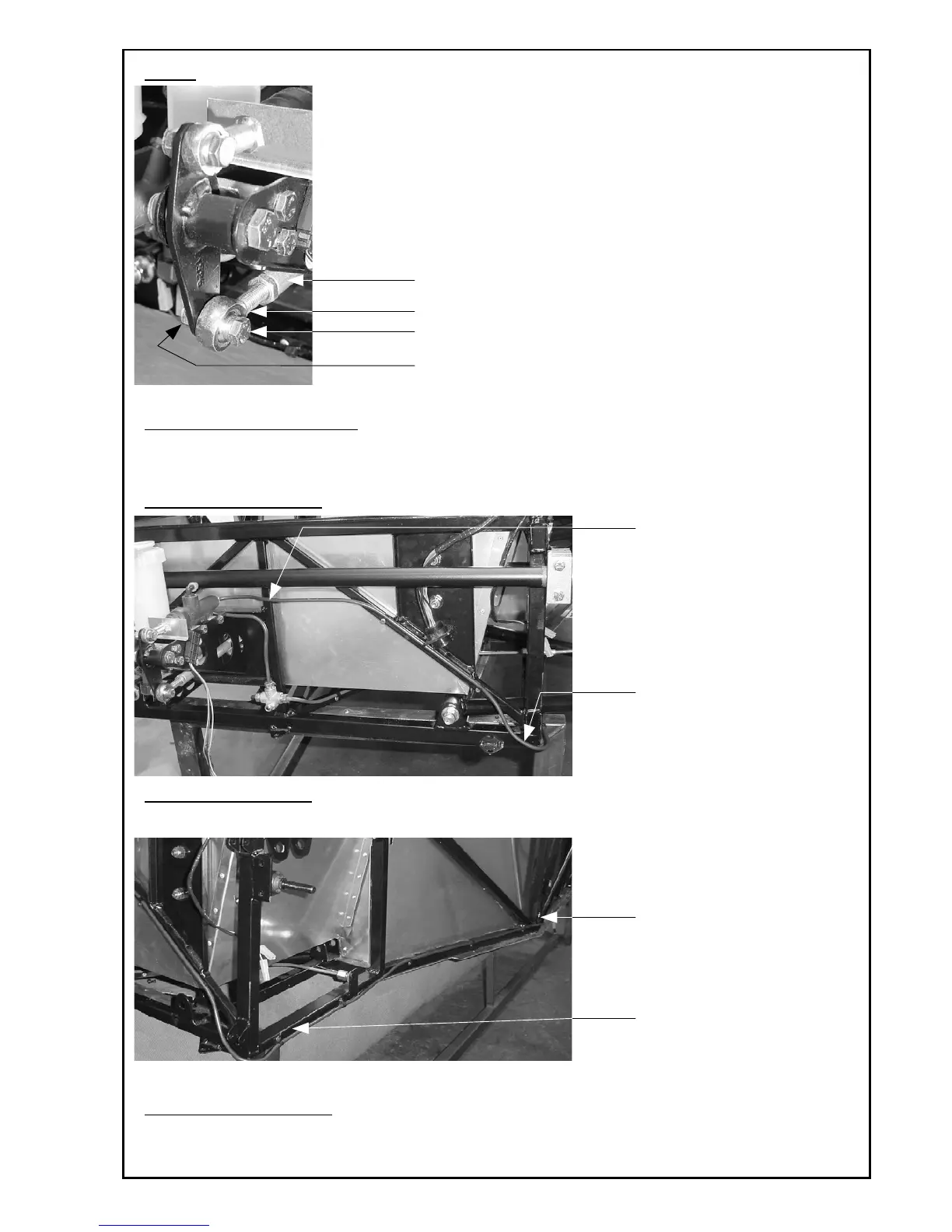

Step 1: Cont’d,
Pedal Push Rod End Assembly
Step 2: Fit Clutch Line
View From Front Of Car
View From Passenger Side
(Front Section Of Chassis)
Clutch Line
Clutch Line
Clutch Line
Clutch Line Must Be
Fitted To The Edge Of
The Tube as Shown And
Not Along The Top Face
5/16” Rod End
M6 Bolt x 30 Long
M6 Nyloc Nut
Pedal Push Rod
