2.4
Step 1: Cont’d,
View From Front

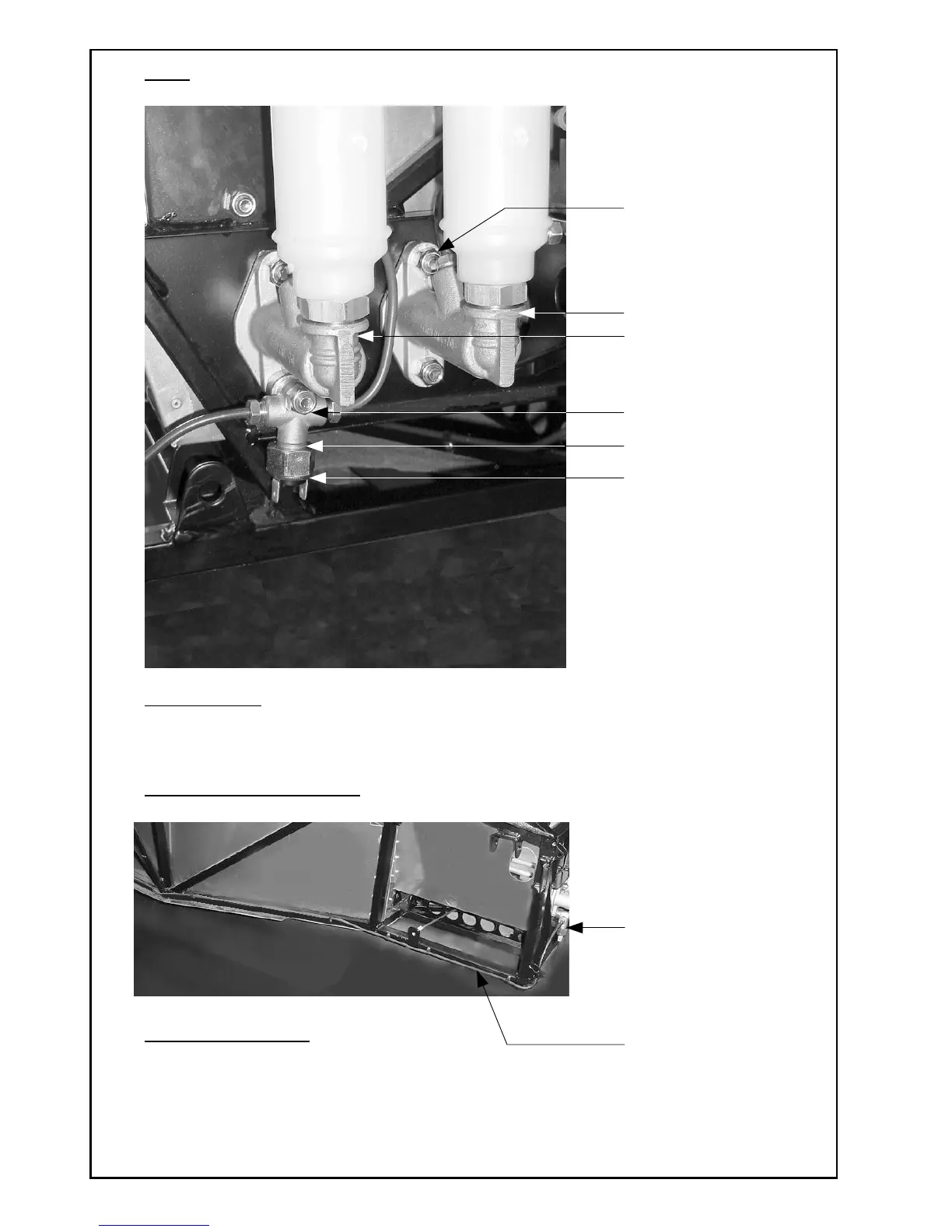

Step 2: Fit Rear Brake Line
View From Drivers Side
(Front Section Of Chassis)
Brake Light Switch
Rear Brake Line
Brake Light Switch
Front Brake Cylinder
Rear Brake Cylinder
Copper Washer
This Brake Line MUST Run Along the Side
Edge of the Chassis Rail (As Shown)
& NOT Along the Top of the Chassis Rail.
3 Way Brake Pipe Connector
Drill Out Mounting Hole To
Fit Onto M8 Bolt x 50 Long
Prior To Installation
3 x M8 Bolts x 25 Long
(Plus 1x50 Long Bolt For
Switch Mounting).
Insert Bolts From Inside
Pedal Box & Secure With
N
