9.4

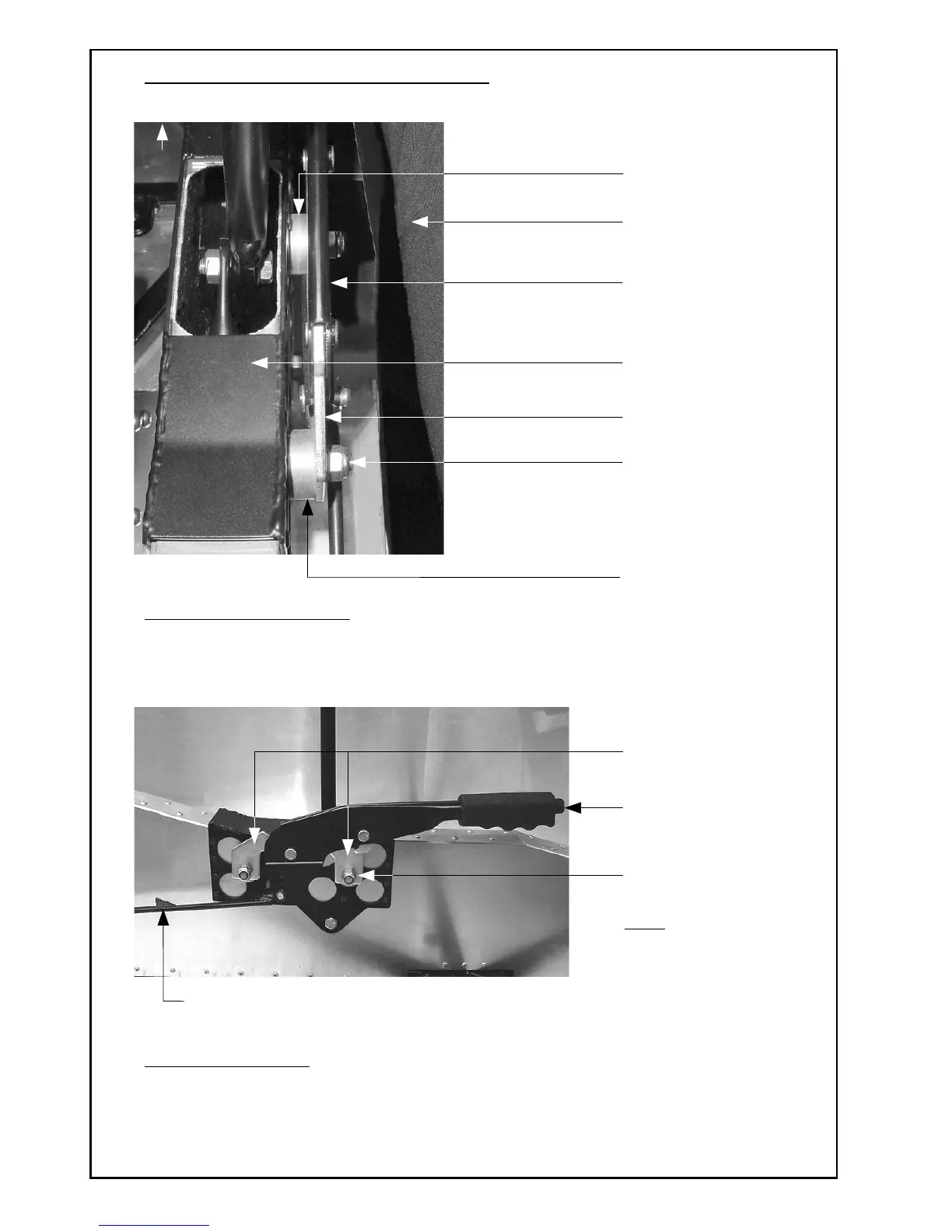

Step 3: Install The Handbrake Lever & Rod
View From Rear Of Assembly
View From Drivers Side
Handbrake Lever
Handbrake Switch Activation Bracket
NOTE ORIENTATION
NOTE
Fit Lever & Rod Assembly So
That The Rod Goes Through
T
he 25mm Diameter Hole In
The Seat Back Panel & The
Lever Sits On The M8 Studs
M8 Stud Mounting Points
Handbrake Lever
Mounting Plate
Front
Of Car
M8 Nyloc Nuts Fitted To
Handbrake Lever Mounting
Studs
Spacer
Handbrake Lever
Mounting Plate
Handbrake Lever
Spacer
Centre Tunnel /
Mounting Bracket
Drivers Seat Area
