9.5

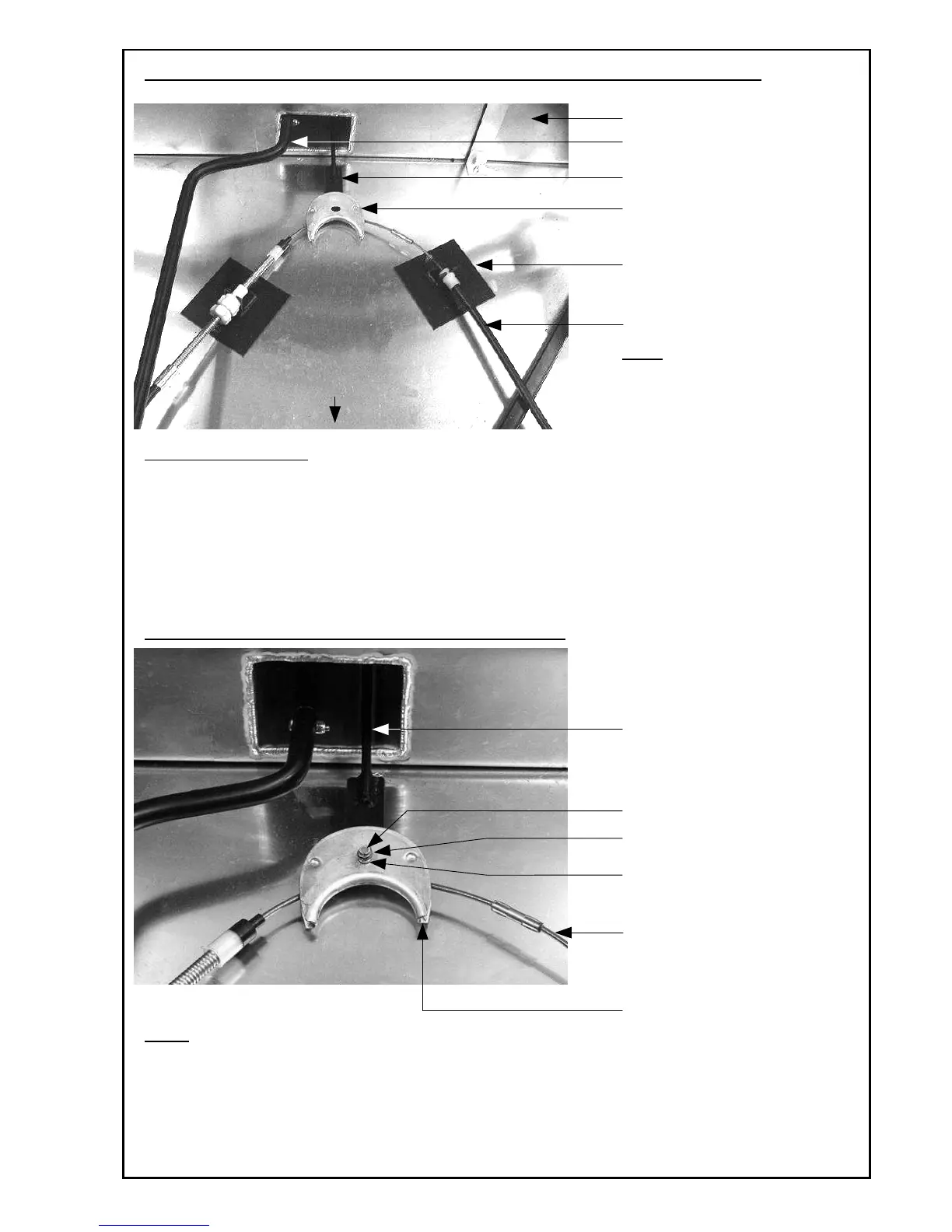

Step 4: Layout The Handbrake Cable Compensator & Install Mounting Plates
View From Rear Of Car
Step 4: Install The Handbrake Cable & Compensator
NOTE
Route The Cables To The Appropriate Rear Corners Of The Car Where They Will Be Connected To
The Brake Callipers Later.
Handbrake Rod
Handbrake Compensator
Handbrake Mounting Plates
Gearchange Rod
Fuel Tank
Handbrake Cable
NOTE
Rear
Of Car
i) Once Cable & Brackets Are In
he Correct Position, Mark The
Mounting Plate Hole Positions
Onto The Chassis Floor &
Remove Plates & Cable
ii) Drill Through The Floor & Fit
Mounting Plates Using M5
Button Head Screws. Ensure
That Large Diameter Washers
Are Fitted Underneath The
Floor Panel And Secure Each
Screw With A Nyloc Nut
Handbrake Rod
Handbrake Compensator
Fit M8 Washers Above &
Below Compensator
Split Pin
Clevis Pin
Handbrake Cable
To Next Page
