Installation For Left Hand Drive
The Cockpit Lever end of the cable is mounted in the same way as shown in Step 1 of this section
of the manual except the handle and knob should face in towards the driver.
The Engine End Of The Cable
Small operating lever on
reverse mechanism.
Cable abutment (Is Already
welded to chassis) Inner
fixed with two large
washers and M5 Nyloc.

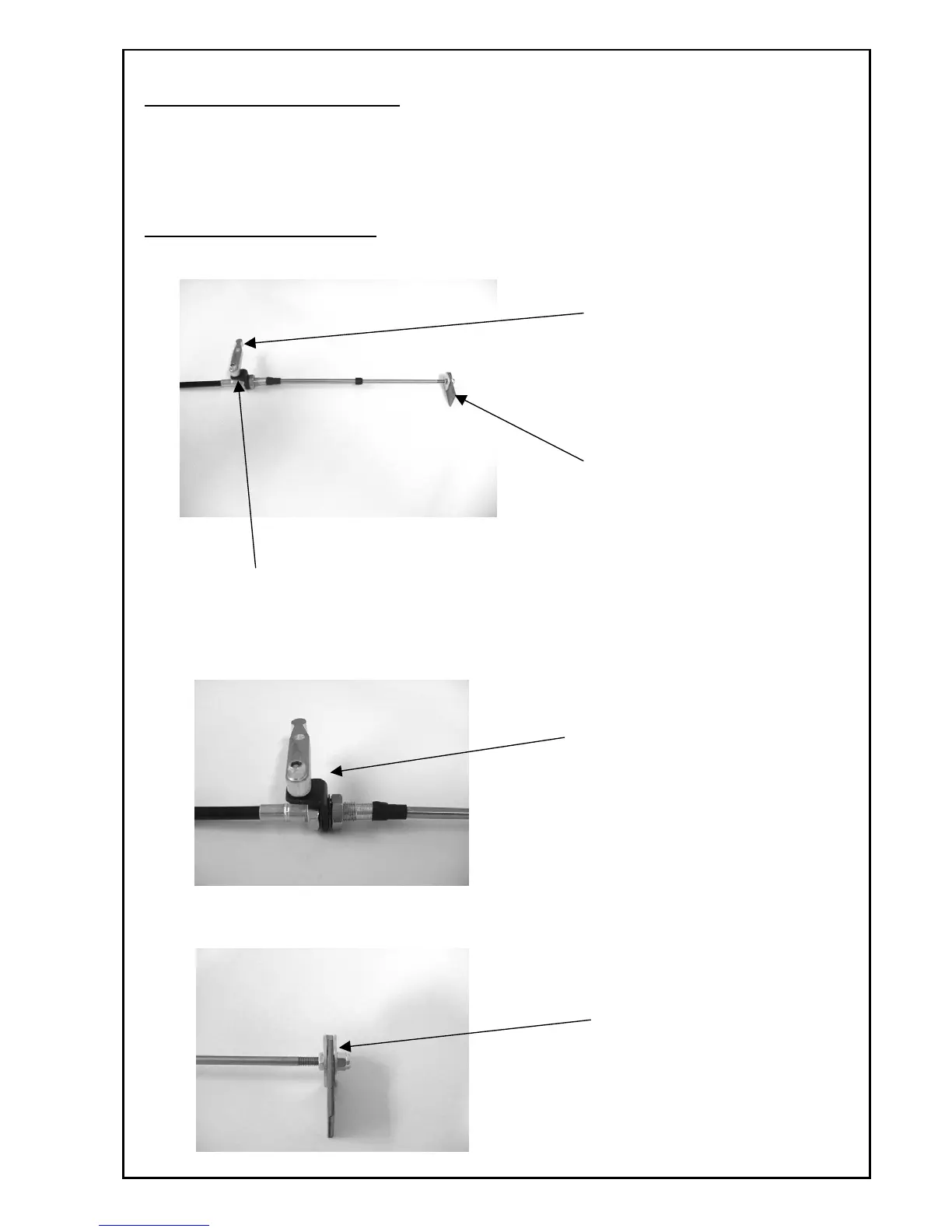

New Bracket Fixed to cable outer fixing nuts and loosely mounted to
the lever arm with M5 dome head screw and Nyloc.
Close up of lever set up.
Chassis mounting With Two
M5 Repair washers. One
either side and a M5 Nyloc
