Westfield XTR2 - Page 134

2.7

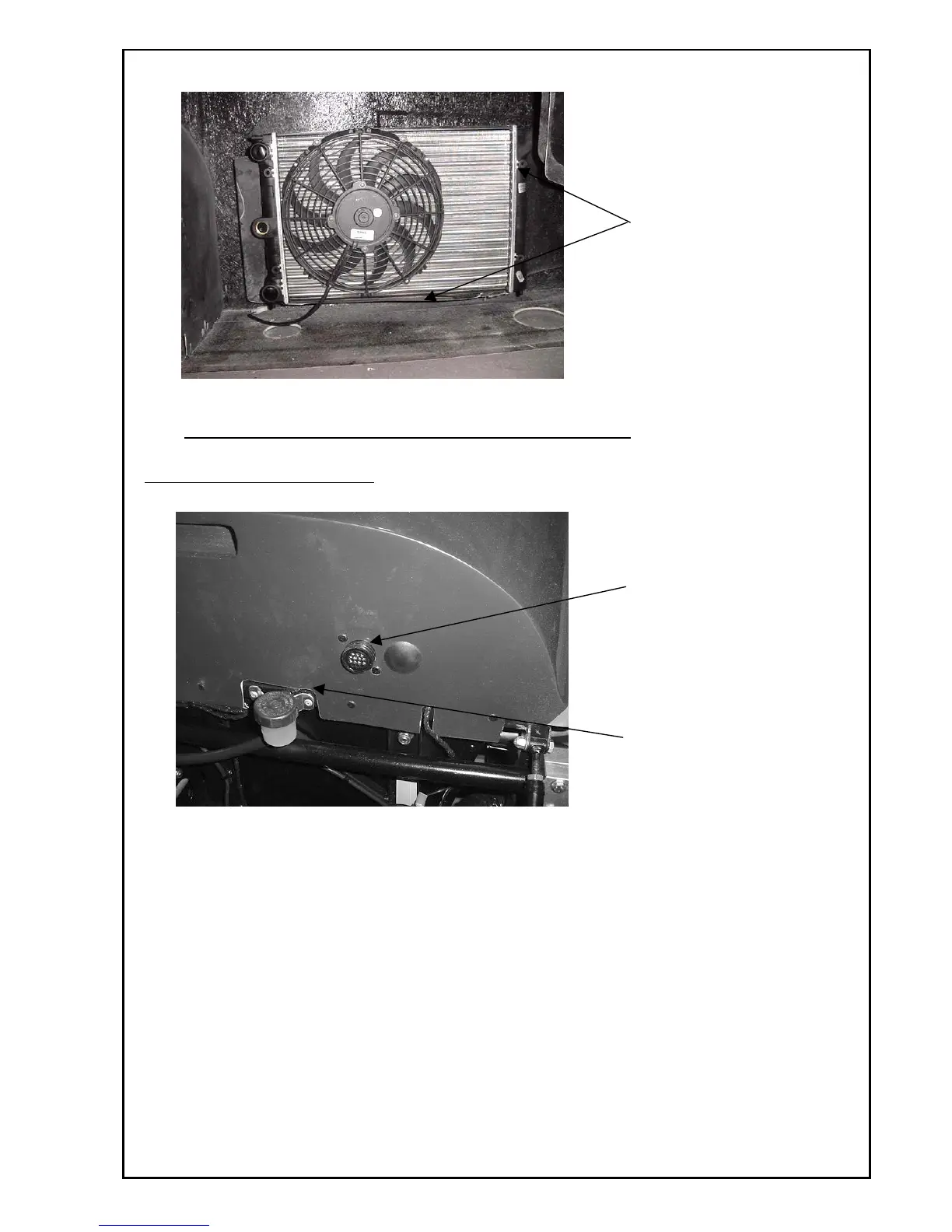

The radiator sits level with
the bottom of the intake
with the inlet and outlet
towards the back of the car,
and is bolted through the
return flanges at either end
usin
g
the M6 ta
pp
ed holes.
View From Inside Engine Bay Towards The Left Side Air Intake
1.i. Front Loom Connector Holes
Front Loom Connector hole
and fixing screw holes.
Clearance around clutch
master cylinder reservoir
bracket.
