SECTION 23 – INTERIOR AND DASHBOARD
Parts Required:-
- Dashboard, Speedo/Tacho, Water Temp Gauge, Oil Press/Temp Gauge, All Switches, Fuel Level
Indicator, Ignition Switch, LED Warning Lights
Step 1:Assemble Dashboard

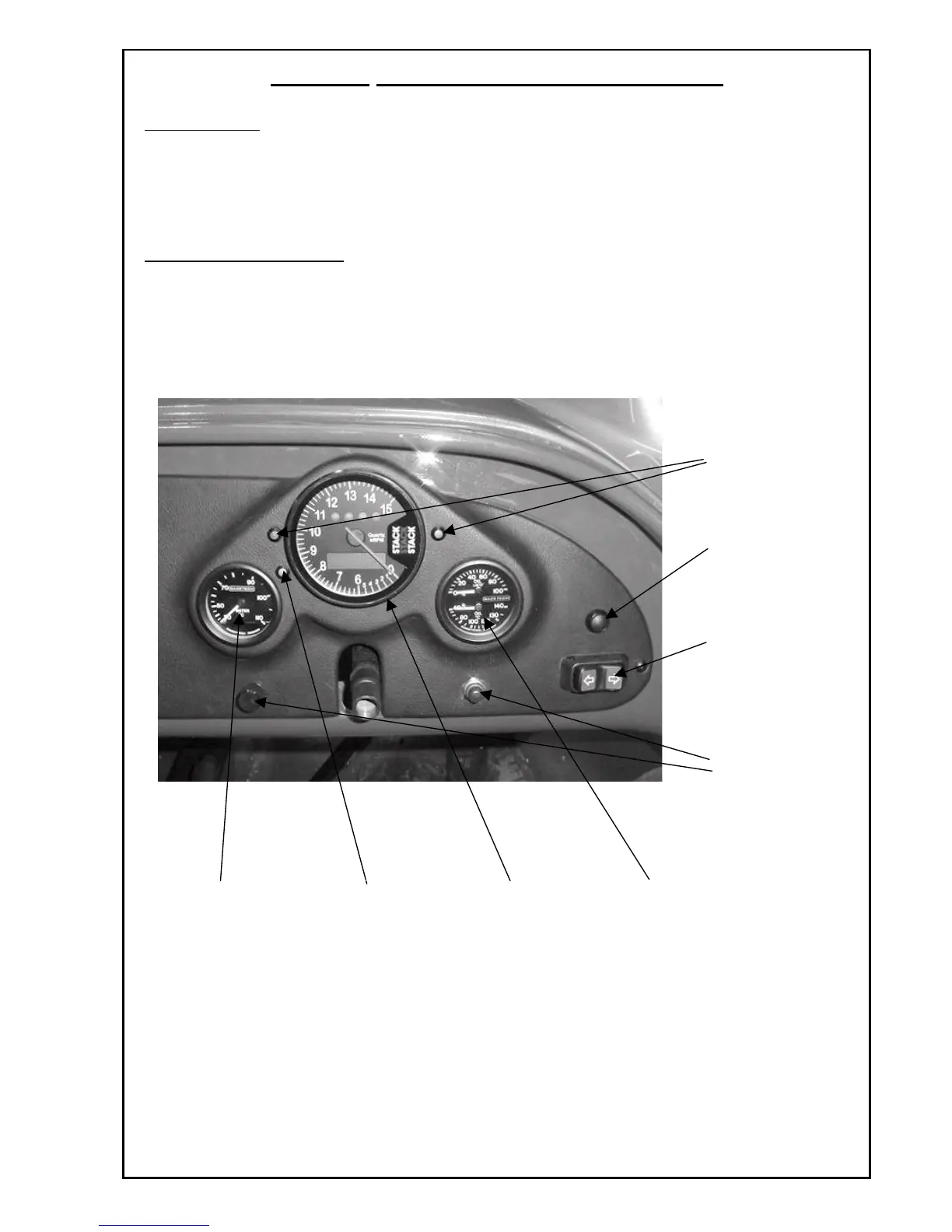

First mount the three clocks in positions with the Speedo/Tacho in the centre, water temperature
on the left and oil pressure/temperature on the right.
Indicator LED’s
2 off Green
Self Canceling
Indicator Switch
Horn
(Push Button)
Water
To Next Page
