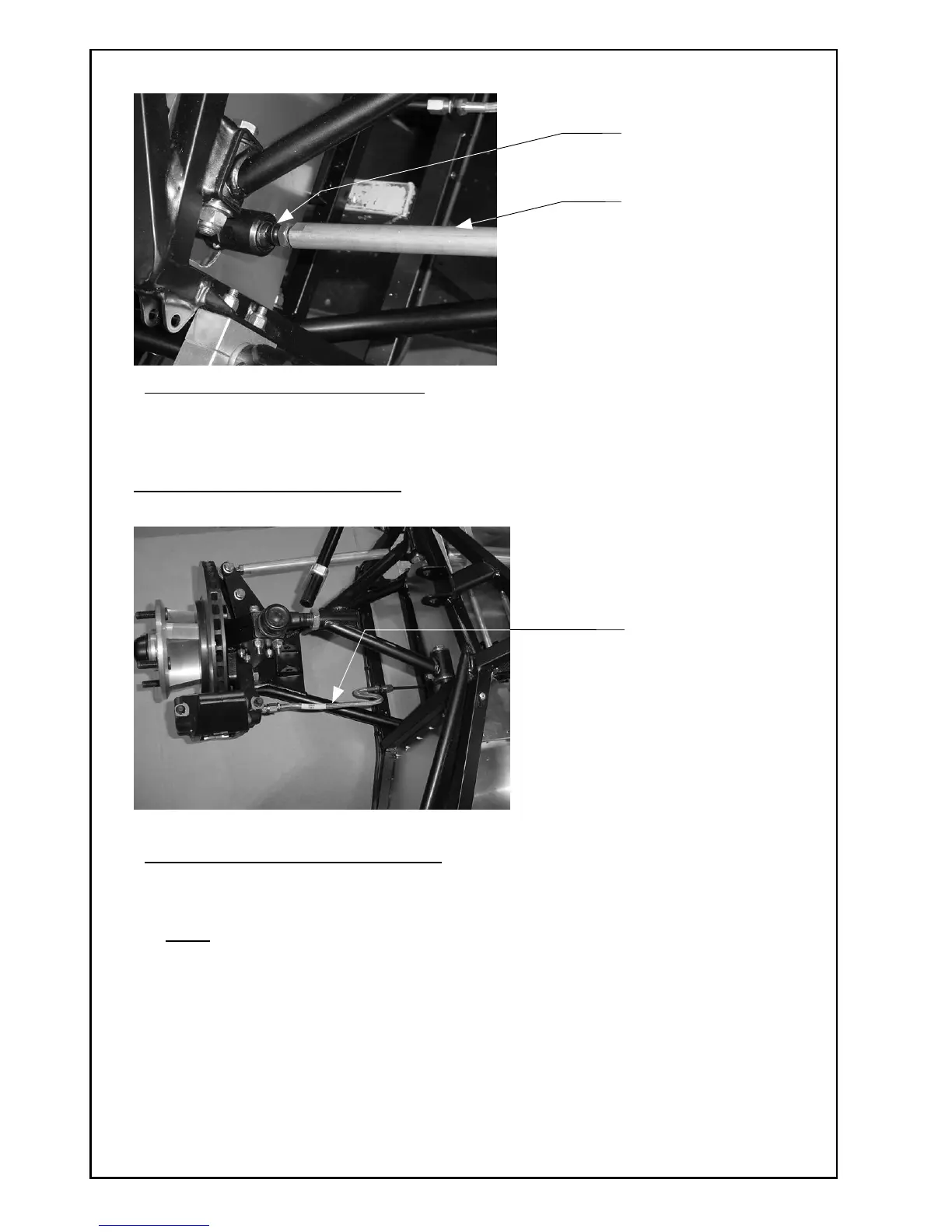

12.4
Steering Rack End Stud
&
3/8” Lock Nut
T
rack Rod
View From Front Passenger Side Of Car
Repeat Procedure For Other Side Of Car.
Step 2: Install Front Brake Hoses
View From Rear Of Passenger Side Of Car
NOTE
Ensure The Brake Hose Is Finally
A
djusted To Clear The Shoc
k
A
bsorber And Spring When The
Steering Is Rotated From Lock To
Lock.
(
Must Clear To Pass SVA
)
Brake Hose
