SECTION 14 - ANTI-ROLL BAR ASSEMBLIES
Tools Required: -
- 2 x 10mm Spanners / 2 x 5/8” Spanners
Parts Required:-
- Front Anti Roll Bar / Rear Anti-Roll Bar / 4 x Anti Roll Bar Mounting Blocks / 4 x Upper Clevis
Blocks / 2 x Lower Front Clevis Blocks / 2 x Rear Mounting Brackets / 2 x Front Drop Link Rods
/ 2 x Rear Drop Link Rods / 8 x Rod Ends (5/16” UNF x 3/8” Hole) / 16 x Rod End Bushes
- 4 x M6 Bolts x 55mm Long / 12 x M6 Bolts x 40mm Long / 2 x M6 Bolts x 35mm Long / 30 x M6
Washers / 20 x M6 Nyloc Nuts / 2 X 7/16” UNF Bolt X 2¾” Long / 2 x 7/16” Washers & Nyloc
Nuts

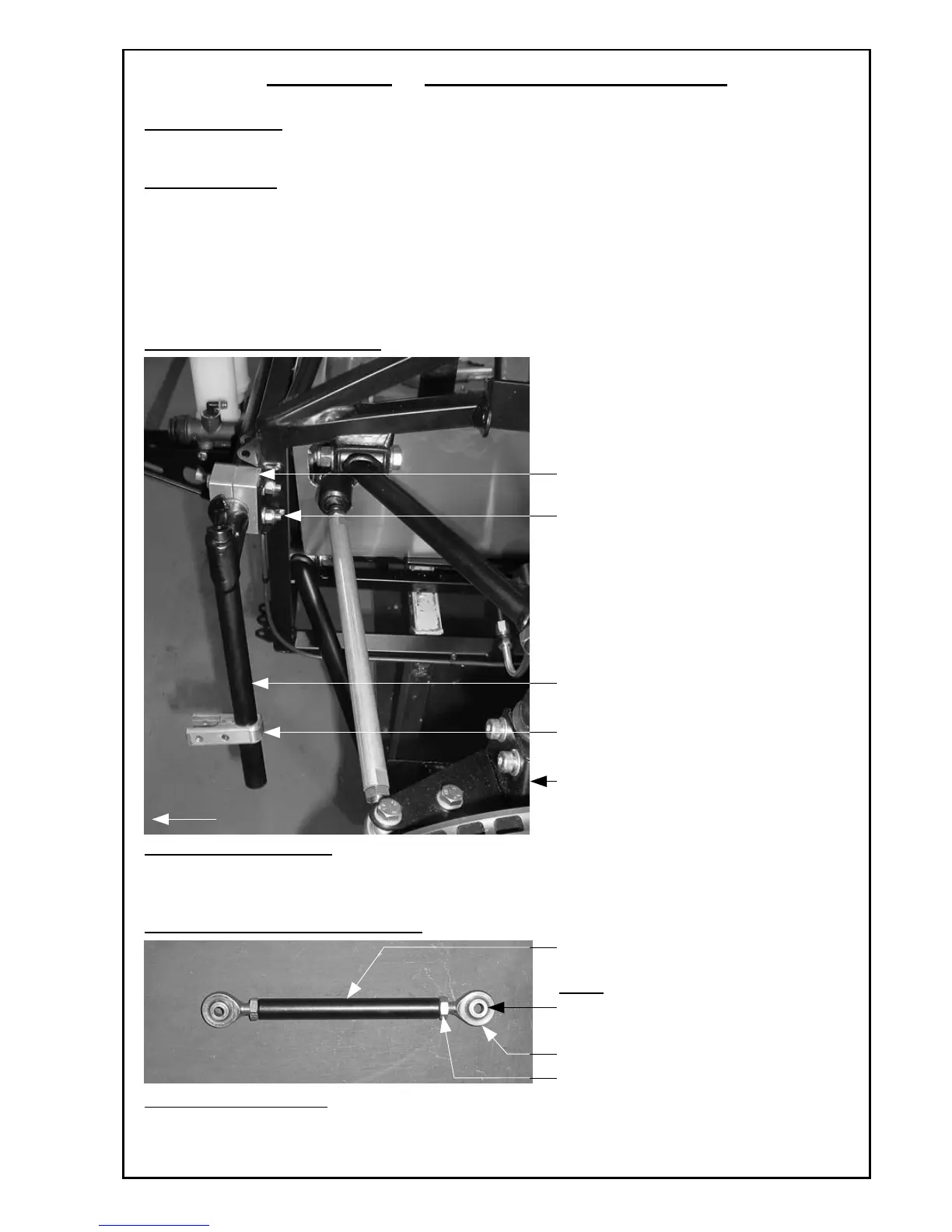

Step 1: Fit Front Anti Roll Bar
View From Passenger Side
Step 2: Assemble Front Drop Links
Assemble 1 Pair For Front
Front
Of Car
Mounting Blocks
M6 Bolts x 55mm Long
+ Washer & Nyloc Nut
Front Anti-Roll Bar
Upper Clevis Block
Front Upright
Front Drop Link Tube
110mm Long
Rod End
To Next Page
