14.5

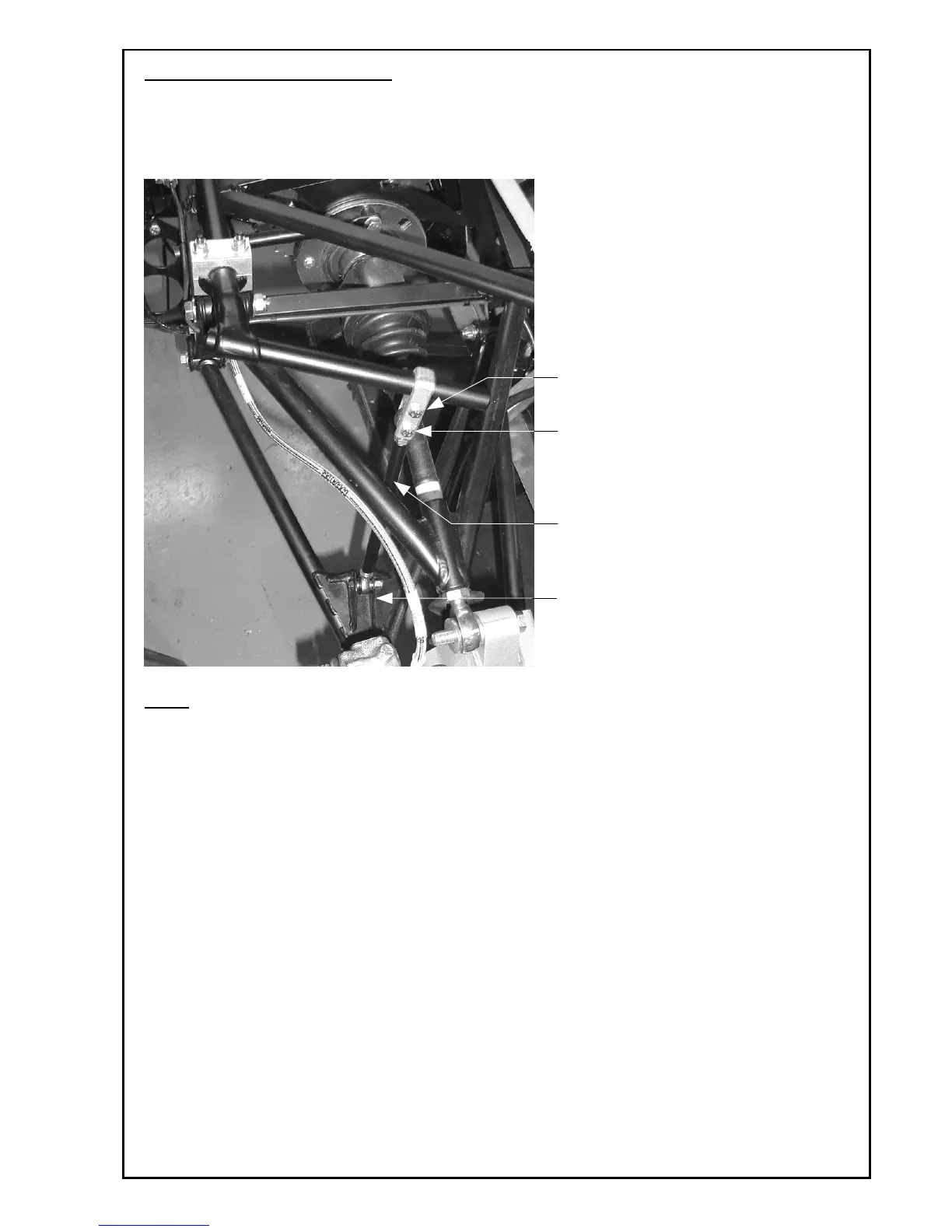

Step 6: Install Rear Drop Links
Assemble the Rear Drop Links in the same manner as the Front Drop Links. The rear Drop Link
tubes are 178mm Long. Note that the Lower Rod End fits into the Mounting Bracket on the Lower
Wishbone. (There are no Lower Clevis Blocks at the Rear.)
Fit 2 x M6 Bolts x 40mm Long
Through Upper Clevis Block
Ensure That The Lower Bolt Passes
hrough The Upper Clevis Block, The
Shouldered Rod End Bushes and The
Rod End Before Being Secured with
Washer and A Nyloc Nut
Rear Drop Link
Lower Wishbone Mounting Bracket
NOTE
: DO NOT fit the Lower Bolt Into the Lower Wishbone Mounting Bracket At This Stage.
(The Picture Above is to show where the Lower Bolt Will Fit Later.)
DO NOT fully tighten any of the Nuts at this Stage as everything will be finally adjusted
during the Car Set-Up Stage.
