Wheelock SAFEPATH SCSP-15SP User Manual

3-8

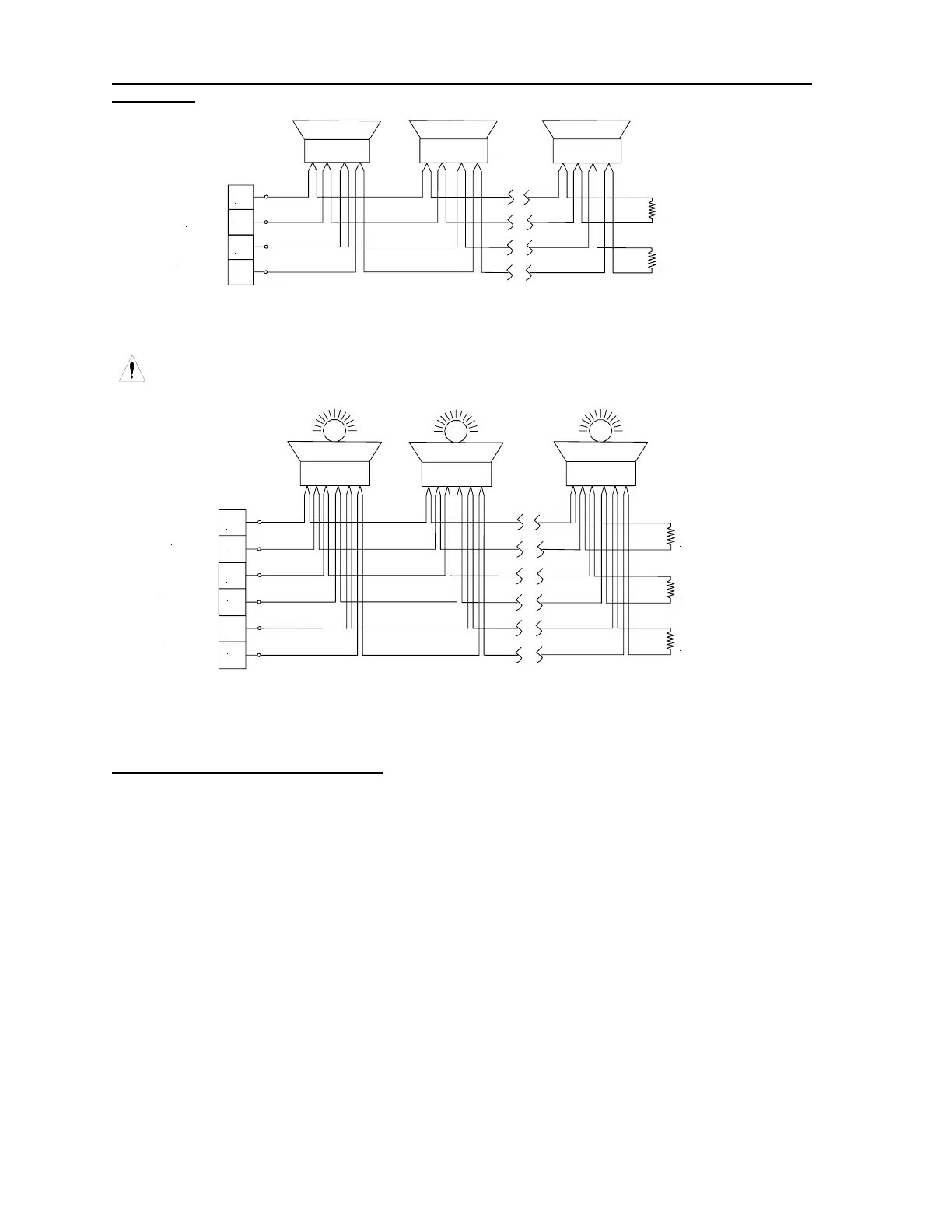

Wiring Diagrams for Audio and SPK AMP Portions of Self-Amplified Audio/Visual Notification
Appliances
+
_
+
_
AUDIO
SPKR
AMP
UL LISTED 10K Ohm
1W EOLR
UL LISTED 10K Ohm
1W EOLR
Figure 3-8
Wiring Diagram for Audio Notification Appliances
in Amplified Speaker Applications
CAUTION: Do not loop wire under terminals. Break wire run to provide supervision of
connection
+
_
+
_
AUDIO
SPKR
AMP
+
_
STROBE
UL LISTED 10K Ohm
1W EOLR
UL LISTED 10K Ohm
1W EOLR
UL LISTED 10K Ohm
1W EOLR
Figure 3-9
Wiring Diagram for Combination Audio/Visual Notification Appliances
in Amplified Speaker Applications
Optional Equipment Connections
Remote Microphone Station (RMS-2)
See the Remote Microphone Station instruction sheet P83270 for additional information.
Notification Appliance Circuit Interface Module (NACIM)
See the Notification Appliance Circuit Interface Module instruction sheet P83487 for additional
information.
4 Zone Splitter (SC-SPL)
See the Four Zone Splitter instruction sheet P83439 for additional information.
Auxiliary Interface Module (AIM-3)
See the Auxiliary Interface Module instruction sheet P83667 for additional information.
