3-16
Final Checkout
CAUTION: If a malfunction, or system trouble occurs during testing, STOP TESTING. Correct
the problem before you resume testing.
CAUTION: Connect the AC power source before connecting the battery backup power.
Disconnect the battery backup power before disconnecting the AC power source.
1. Set Configuration Switches to desired settings for supervision tone. See Figure 3-18 on Page 3-17 for
switch location on the Motherboard (SCMB). See Tables 3-2 and 3-3 for switch descriptions.
NOTE: The tone selected is used to supervise the amplifiers in STANDBY condition. It is also
the tone when the AUTOMATIC/MANUAL switch is placed in the MANUAL position. The
tone will also play in ALARM if DIP Switch SW5, DV ENABLE is OFF and the input
contact closure is placed on the CH PLAY terminals on the Motherboard.
1
2 3
4
ON
1
2 3
4
ON
SW5
SW4
TONE SEL
3
2
1
CND FLT ENB
RM ENABLE
SYNC
DV ENABLE
LAMP TEST
Motherboard
SCMB

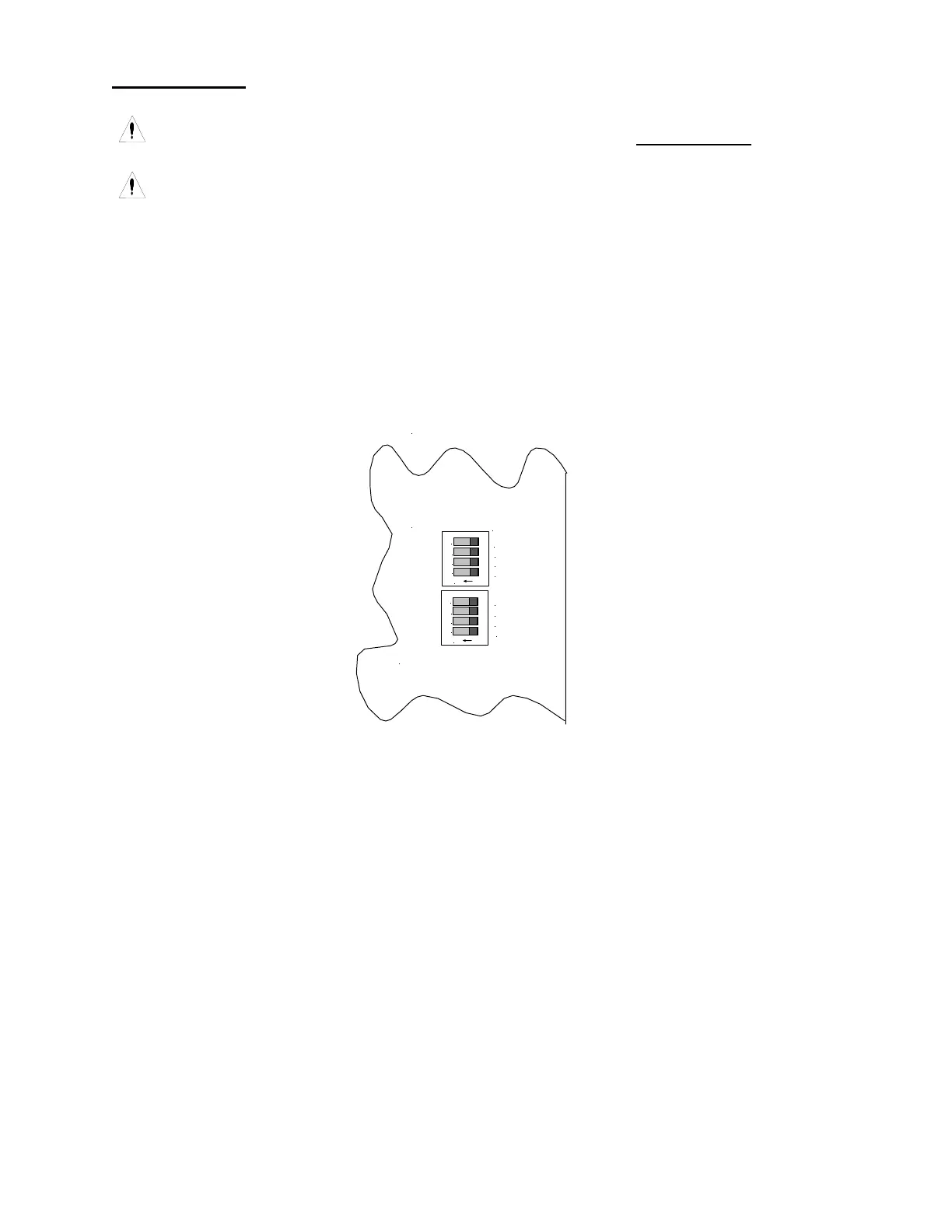

Figure 3-18
Configuration DIP Switch Location on SCMB Module
