Wheelock SAFEPATH SCSP-15SP User Manual

9-16
Section 9-9 - FOUR ZONE SPLITTER (SC-SPL)
Wheelock, Inc. Part Number: SC-SPL-B (Black) 107367, SC-SPL-R (Red) 107368

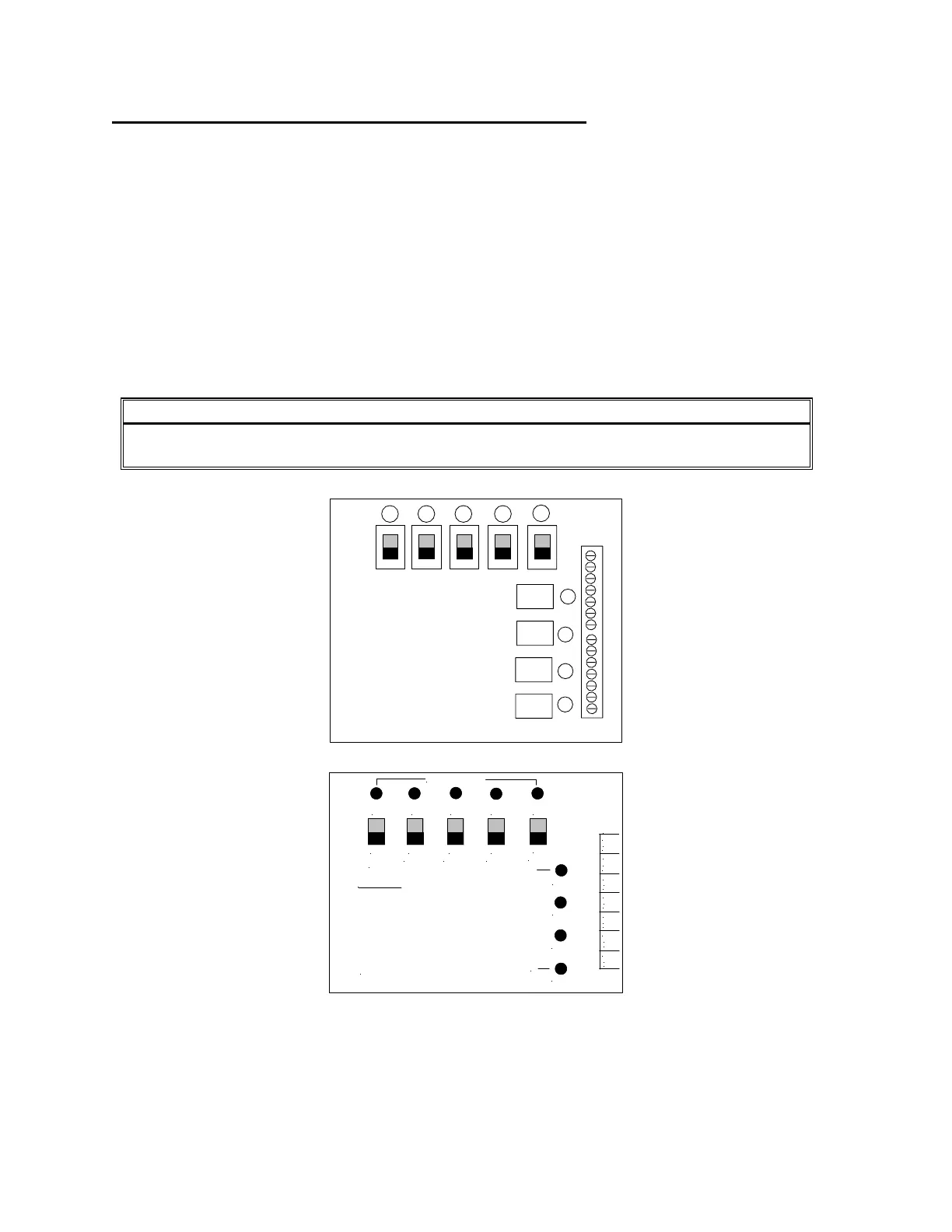

The Four Zone Splitter (SC-SPL) in Figure 9-9 is designed to be used with Wheelock’s Single Circuit
SAFEPATH
®
Panels and provides a means for expanding a supervised audio output zone from one to
four sub zones. The Four Zone Splitters are UL Listed under UL Standard 864, Control Units for Fire
Protective Signaling Systems. They are listed for indoor use only. Only 1 Four Zone Splitter can be
connected to the Single Circuit SAFEPATH
®
Panel. The splitter works with all Wheelock amplifier
modules. If the splitter is used with a power amplifier, the maximum power per sub zone cannot exceed
what is listed in table below. See Figure 9-9.
Additional Information is available on the SC-SPL Installation Instruction Sheet P83270.
SPECIFICATIONS:
SAA-40S/80S/80SE SALL-15S
Audio Output Voltage 25.0V 70.7V 100.0V 1.0V
Maximum Output Power Per Zone 25.0W 70.0W 100.0W 150 Speaker Inputs
ZONE SELECT LED'S
ON
OFF
ON
ON
OFF OFF
ON
OFF
ON
OFF
ALL
CALL
ZONE 1
ZONE 2
ZONE 3
ZONE 4
ZONE 1
ZONE 2
ZONE 3
ZONE 4
Z
O
N
E
A
C
T
I
V
E
L
E
D
S
Z4
Z3
Z2
Z1
AUD
PWR
ALL
TB1
+
_
+
_
+
_
+
_
+
_
+
_
+
_
OPERATION:
Use zone switches to select zones
for live announcements.
Use all-call to select all zones.
Zone select LED's indicate the
selected zones.
Zone active LED's indicate the
active zones.
Figure 9-9
4-Zone Splitter Module (SC-SPL
)
