3-4
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electri-
cal shock.

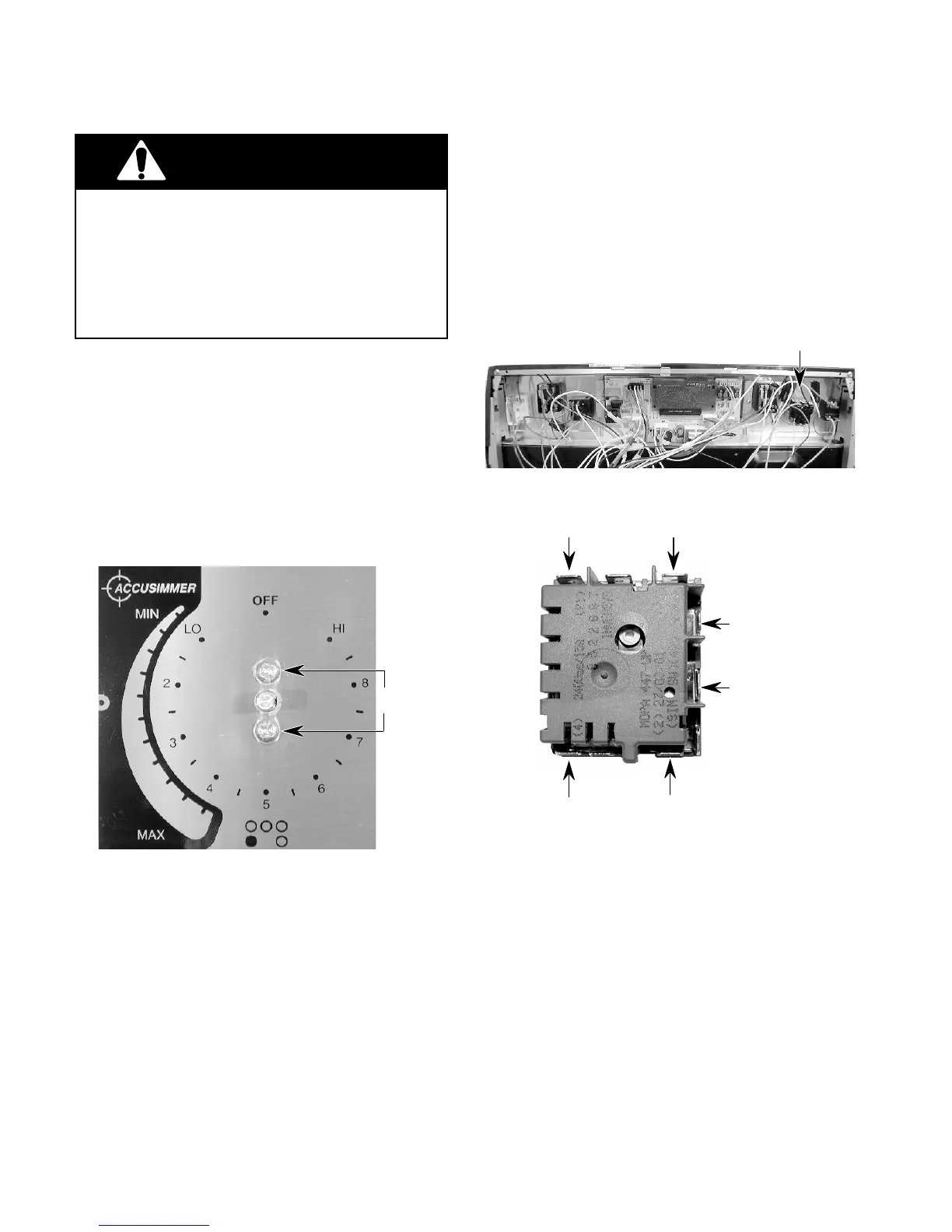

REMOVING THE DUAL ELEMENT INFINITE SWITCH
CAUTION: When you work on the electric
range, be careful when handling the sheet
metal parts. Sharp edges may be present, and
you can cut yourself if you are not careful.
WARNING
3. Pull the range away from the wall so that
you can access the rear panel.
4. Remove the eight screws from the rear
panel and remove the panel (see step 4 on
page 3-2).
5. Remove the wires from the dual element
infinite switch terminals and remove the
switch.
1. Turn off the electrical supply going to the
range.
2. Pull the knob off the dual element infinite
switch and remove the two screws.
Screws
Dual Element Infinite Switch
L1 - Black
P1
L2 - Red
P2
2 - Violet
Pushbutton
4 - Or/Bk
Inner Element
S2 - Blue
Pilot Light
4A - Or/Wh
Outer Element
To Next Page
