3-8
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electri-
cal shock.

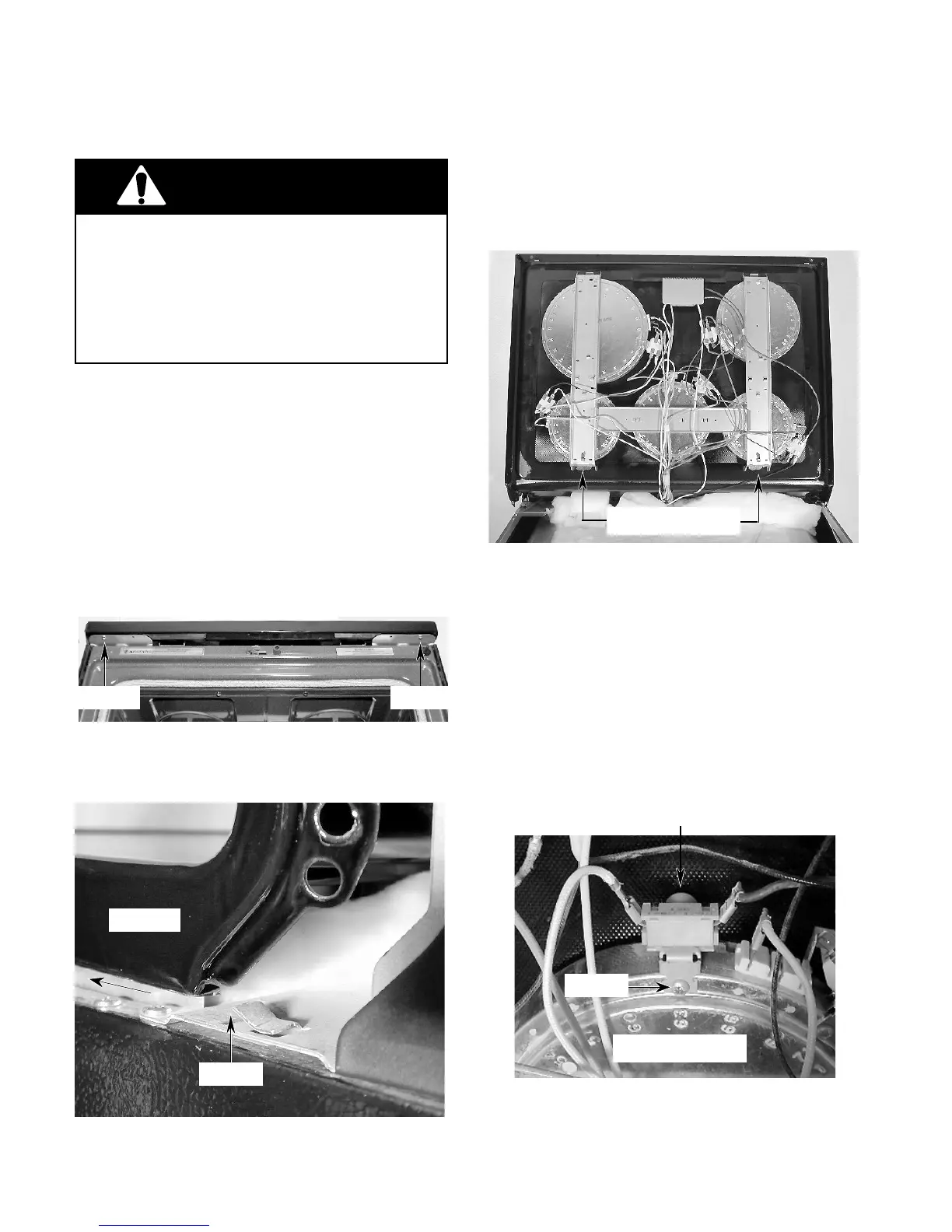

REMOVING AN ELEMENT & LIMITER
AND THE COOKTOP GLASS ASSEMBLY
CAUTION: When you work on the electric
range, be careful when handling the sheet
metal parts. Sharp edges may be present, and
you can cut yourself if you are not careful.
WARNING
1. Turn off the electrical supply going to the
range.
2. Open the oven door.
3. Remove the two cooktop bracket screws
from the bottom front of the cooktop.
4. Pull the cooktop forward far enough to
unhook it from the top of the range.
5. Lift the front of the cooktop and rest it
against the control panel. CAUTION: Be
careful that the cooktop does not acciden-
tally fall forward.
6. To remove an element and limiter:
a) Remove the wires from the element
and limiter terminals.
b) Remove the element bracket screw
(shown above) for the element and
limiter you are servicing.
c) If you are removing the center element
and limiter, remove the screw from the
hot surface indicator bracket and re-
move the indicator.
Screw Screw
Hook
Cooktop
Bracket Screws
Hot Surface Indicator
Center Element
Screw
To Next Page
